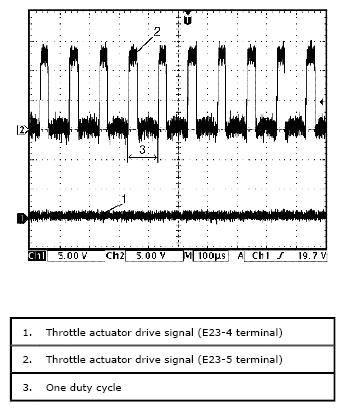

Reference waveform No.26
Throttle actuator output signals:
WAVEFORM REFERENCE
| Measurement terminal | CH1: E23-4 to C37-81 CH2: E23-5 to C37-81 |
| Oscilloscope setting | CH1: 5 V/DIV, CH2: 5 V/DIV TIME: 100 μs/DIV |
| Measurement condition | Ignition switch is at ON position and accelerator pedal is at fully depressed after warmed up engine. |
