Reference waveform No.25

Throttle actuator output signals:

WAVEFORM REFERENCE

Measurement terminal	CH1: E23-4 to C37-81 CH2: E23-5 to C37-81
Oscilloscope setting	CH1: 5 V/DIV, CH2: 5 V/DIV, TIME: 100 μs/DIV
Measurement condition	Ignition switch is at ON position and accelerator pedal is not depressed after warmed up engine.

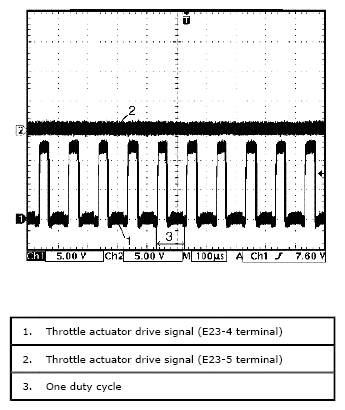

Fig 1: Identifying Signal Waveform No.25

Courtesy of SUZUKI OF AMERICA CORP.
