Reference waveform No.16

CKP sensor (1) and CMP sensor (2) signals:

WAVEFORM REFERENCE

Measurement terminal CH1: C37-47 to C37-81
CH2: C37-66 to C37-81
Oscilloscope setting CH1: 2 V/DIV, CH2: 2 V/DIV, TIME: 20 ms/DIV
Measurement condition Engine is running at specified idle speed after warmed up engine.

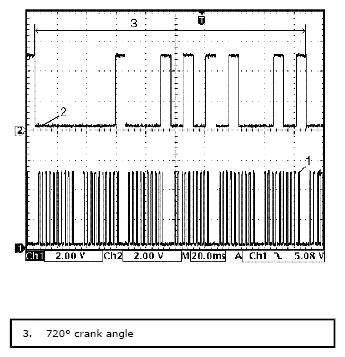

Fig 1: Identifying Signal Waveform No.16
G05472769Courtesy of SUZUKI OF AMERICA CORP.
