Reference waveform No.14

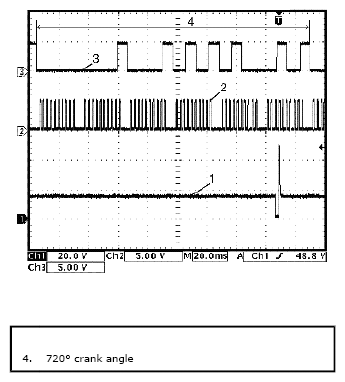

Fuel injector No.4 (1), CKP sensor (2) and CMP sensor (3) signals:
WAVEFORM REFERENCE
| Measurement terminal | CH1: C37-33 to C37-81 CH2: C37-47 to C37-81 CH3: C37-66 to C37-81 |
| Oscilloscope setting | CH1: 20 V/DIV, CH2: 5 V/DIV, CH3: 5 V/DIV TIME: 20 ms/DIV |
| Measurement condition | Engine is running at specified idle speed after warmed up engine. |
