DTC P2098 / P2099: Post Catalyst Fuel Trim System Too Lean / Too Rich (Sensor-2, Bank-2)
>>
System and Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System and Wiring Diagram

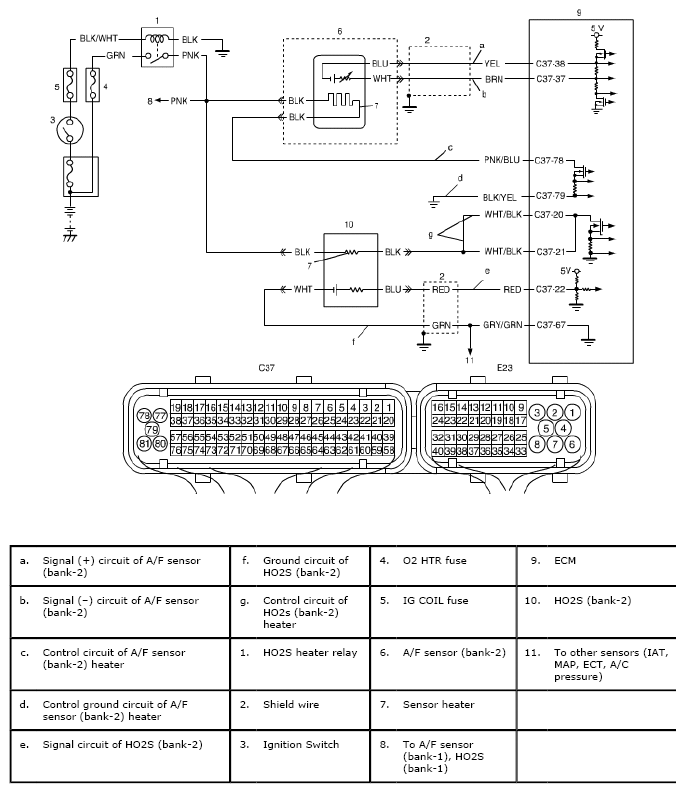

Fig 1: Post Catalyst Fuel Trim System Too Lean / Too Rich (Sensor-2, Bank-2) - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
