DTC P1116: Engine Coolant Temperature Circuit Performance at Engine Soaking: Wiring Diagram

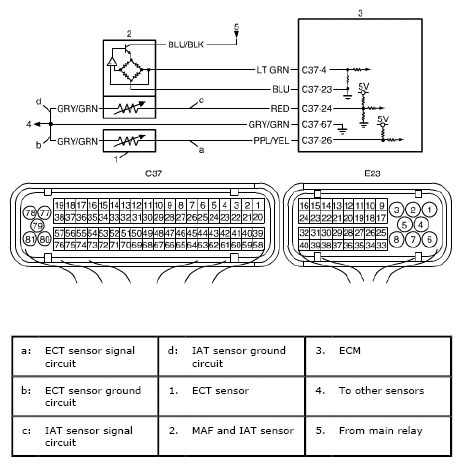

Fig 1: Engine Coolant Temperature Circuit - Wiring Diagram
G05472730Courtesy of SUZUKI OF AMERICA CORP.
