DTC P0645: A/C Clutch Relay Control Circuit: Wiring Diagram

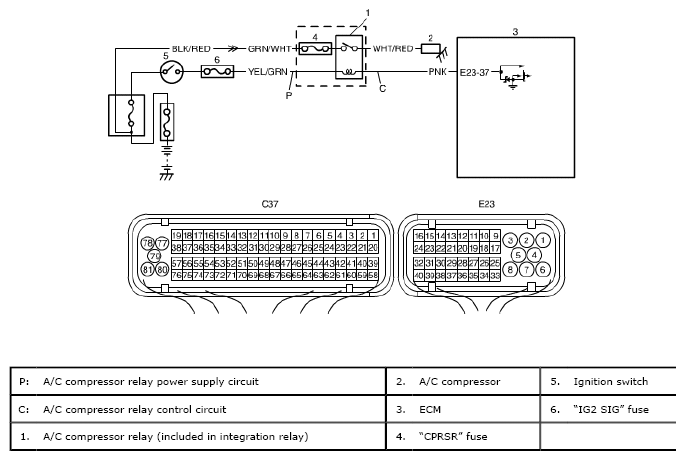

Fig 1: A/C Clutch Relay Control Circuit - Wiring Diagram
G05472727Courtesy of SUZUKI OF AMERICA CORP.
