System / Wiring Diagram

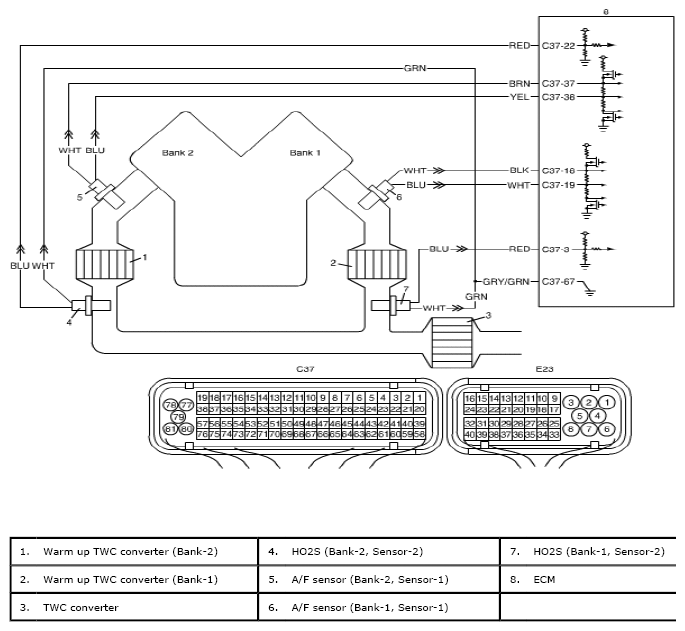

Fig 1: Catalyst System Efficiency Below Threshold (Bank-1 / -2) - Wiring Diagram
G05472717Courtesy of SUZUKI OF AMERICA CORP.
