DTC P0107 / P0108: Manifold Absolute Pressure Sensor Circuit Low / High Input: Wiring Diagram

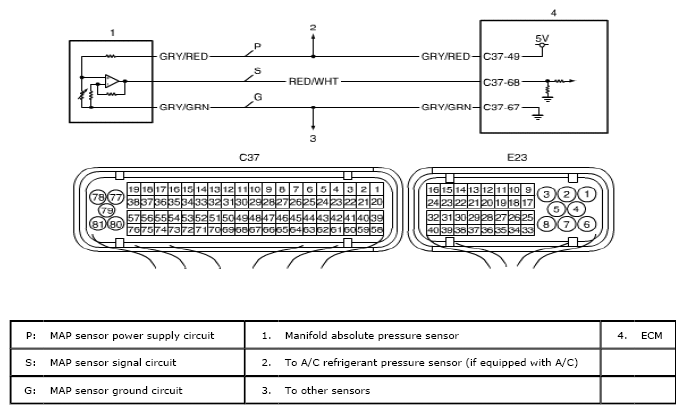

Fig 1: Manifold Absolute Pressure Sensor Circuit Low / High Input - Wiring Diagram
G05472698Courtesy of SUZUKI OF AMERICA CORP.
