DTC P0101: Mass Air Flow Circuit Range / Performance: Wiring Diagram

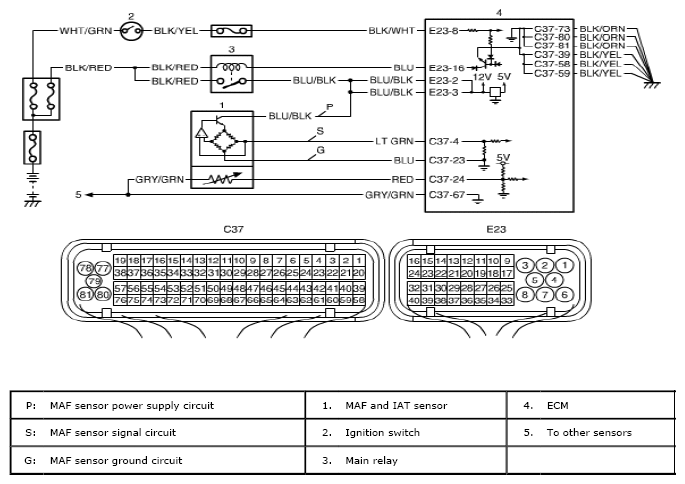

Fig 1: Mass Air Flow Circuit Range / Performance - Wiring Diagram
G05472696Courtesy of SUZUKI OF AMERICA CORP.
