System and Wiring Diagram

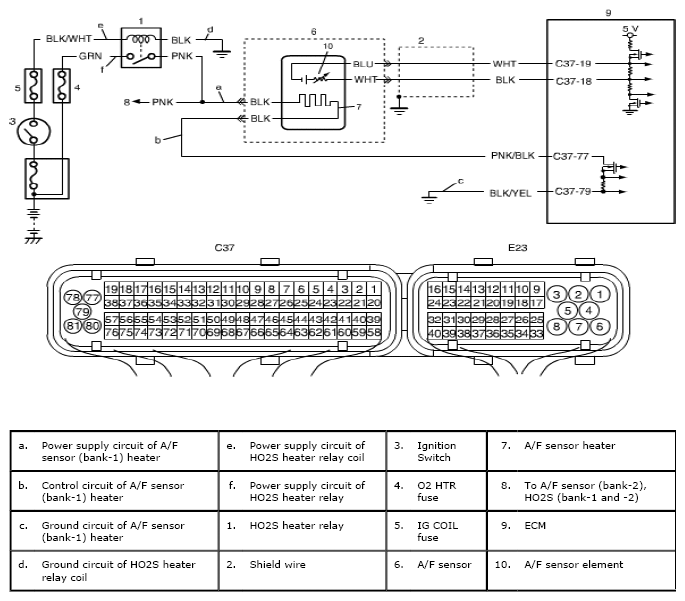

Fig 1: HO2S Heater Control Circuit Low / High (Sensor-1, Bank-1) - Wiring Diagram
G05472690Courtesy of SUZUKI OF AMERICA CORP.
