Intake Collector And Intake Manifold Components

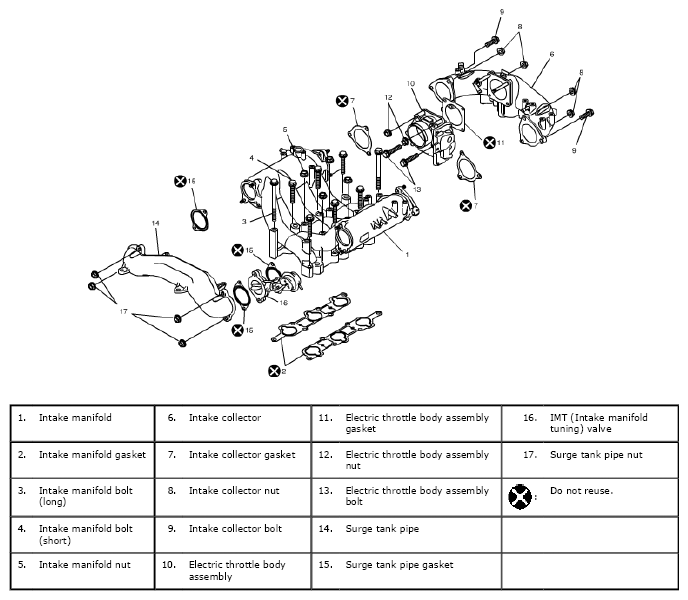

Fig 1: Identifying Intake Collector & Intake Manifold Components
G04807313Courtesy of SUZUKI OF AMERICA CORP.
