Manual Selector Assembly Removal and Installation
Manual Selector Assembly Removal and InstallationRemoval
1) Disconnect negative cable at battery.
2) Remove front center console box.
3) Disconnect shift lever switch connector.
4) Remove manual selector assembly mounting bolts.

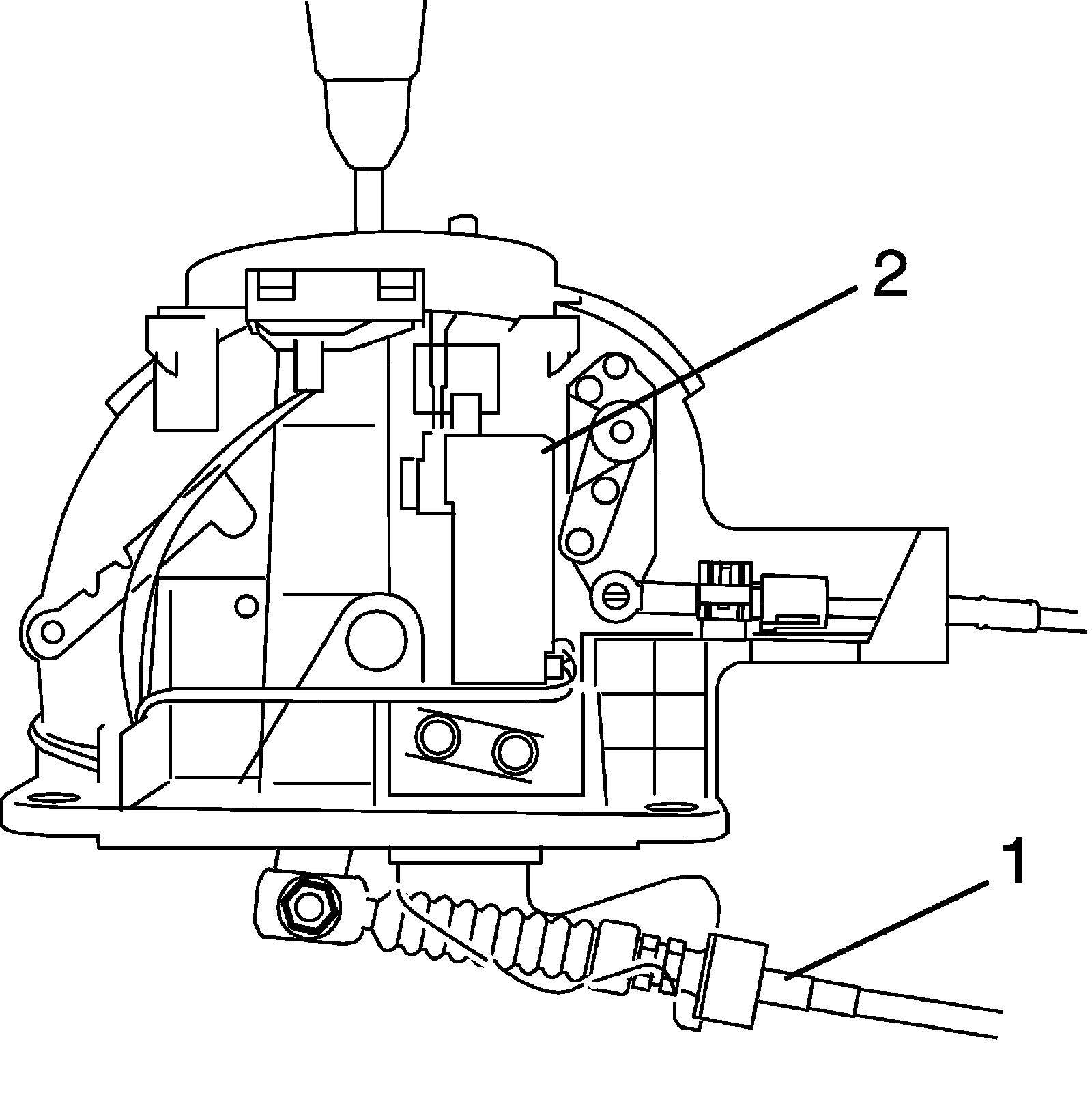

5) Disconnect select cable (1) from manual selector assembly (2) expanding select cable clip (3).
Installation
Reverse removal procedure to install manual selector assembly noting the following instructions.
^ Tighten manual selector assembly mounting bolts to specified torque.
Tightening torque
Manual selector assembly mounting bolt: 18 Nm (1.8 kg-m, 13.0 ft. lb.)
