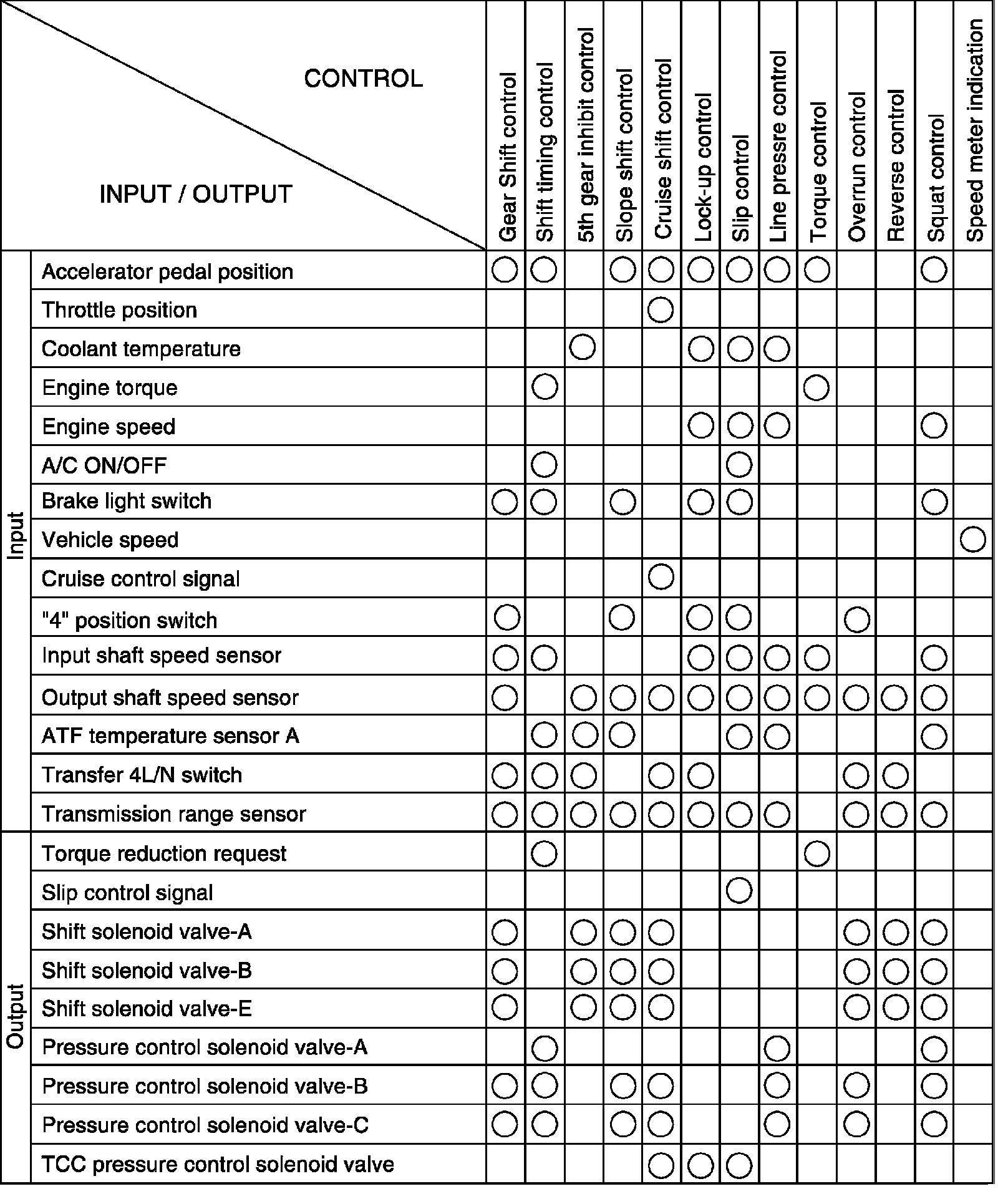

Electronic Shift Control Input / Output Table

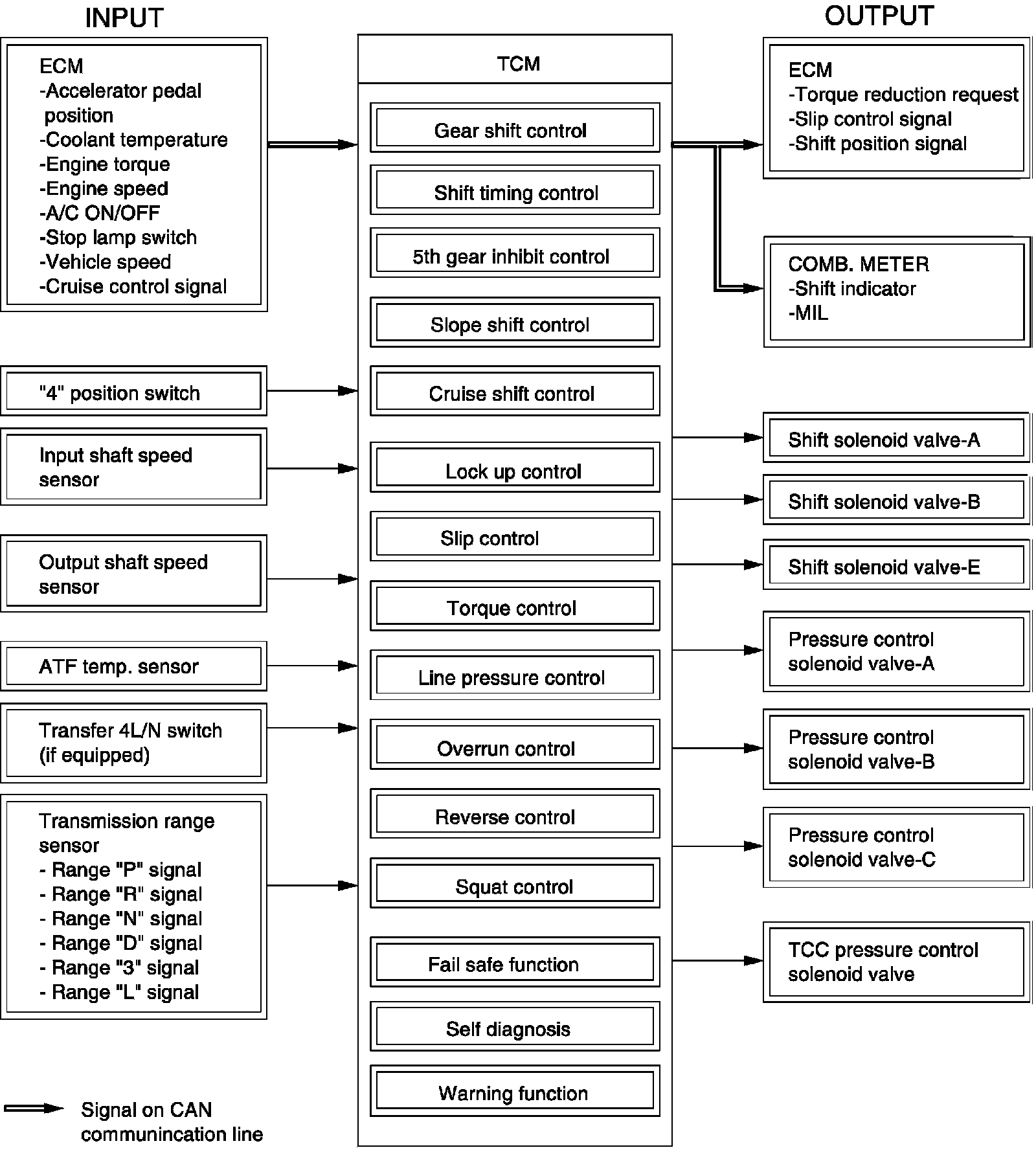

Electronic Shift Control Input / Output Table

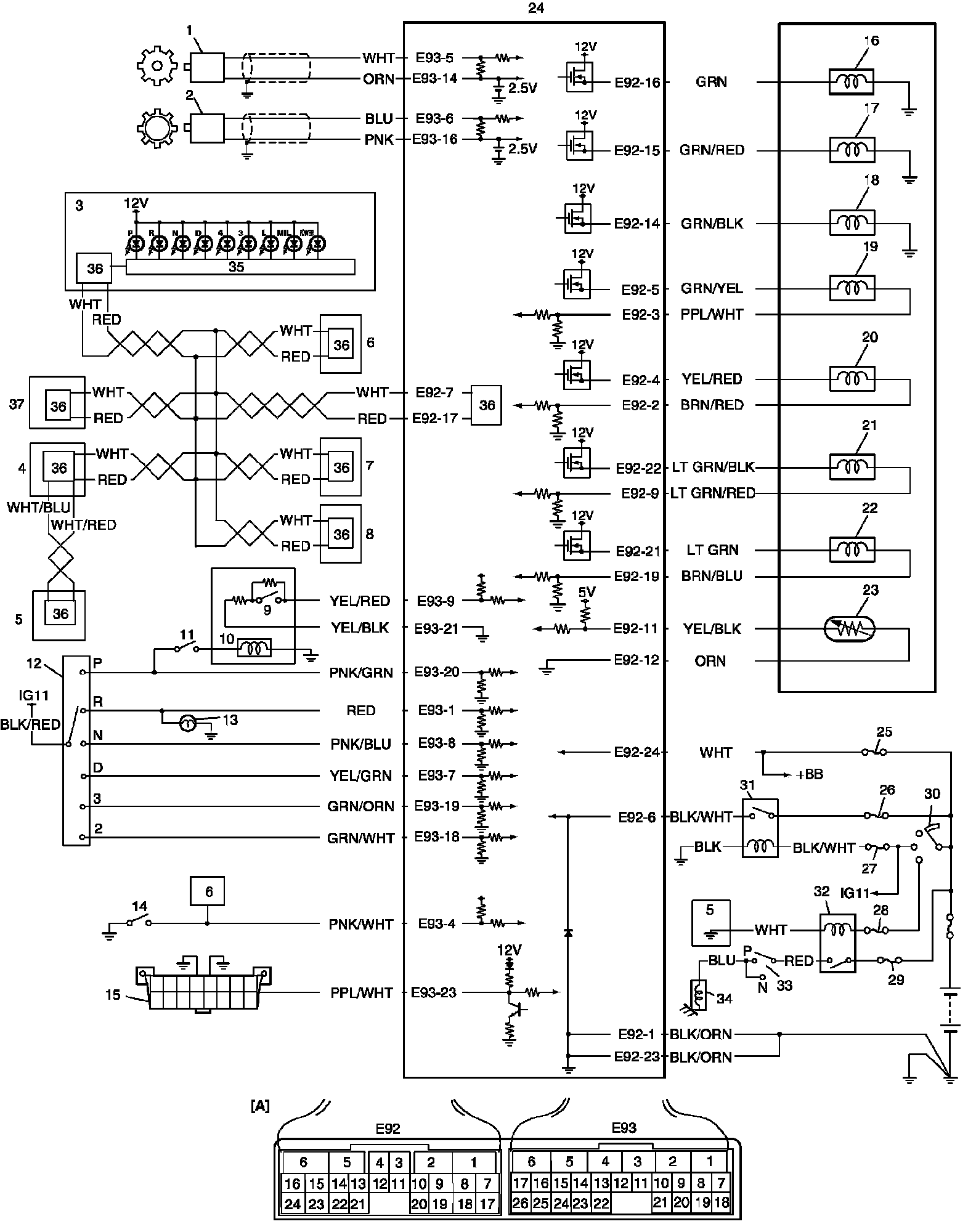

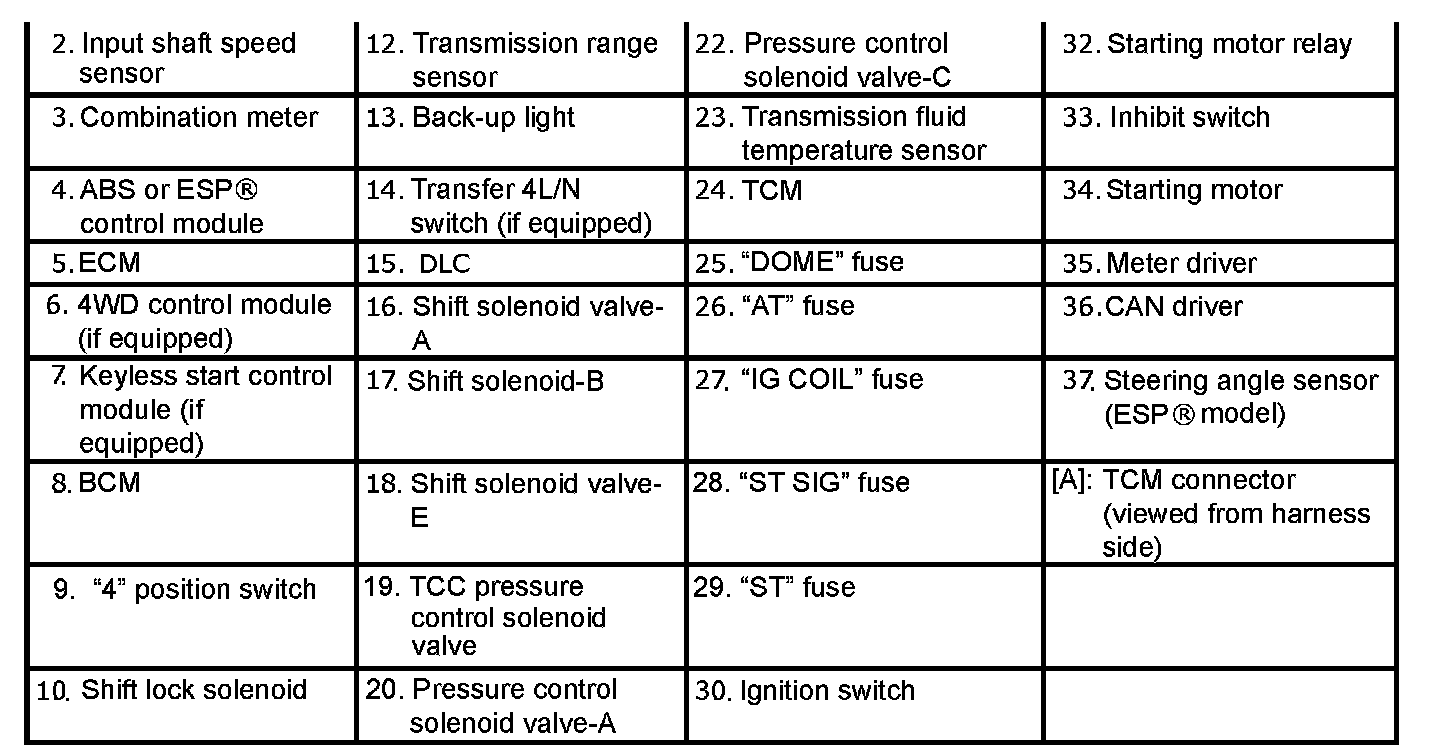

Electronic Shift Control System Wiring Diagram











Operation of Shift Solenoids and TCC Solenoid





^ : ON (Turn power on)
X: OFF (Turn power off)
