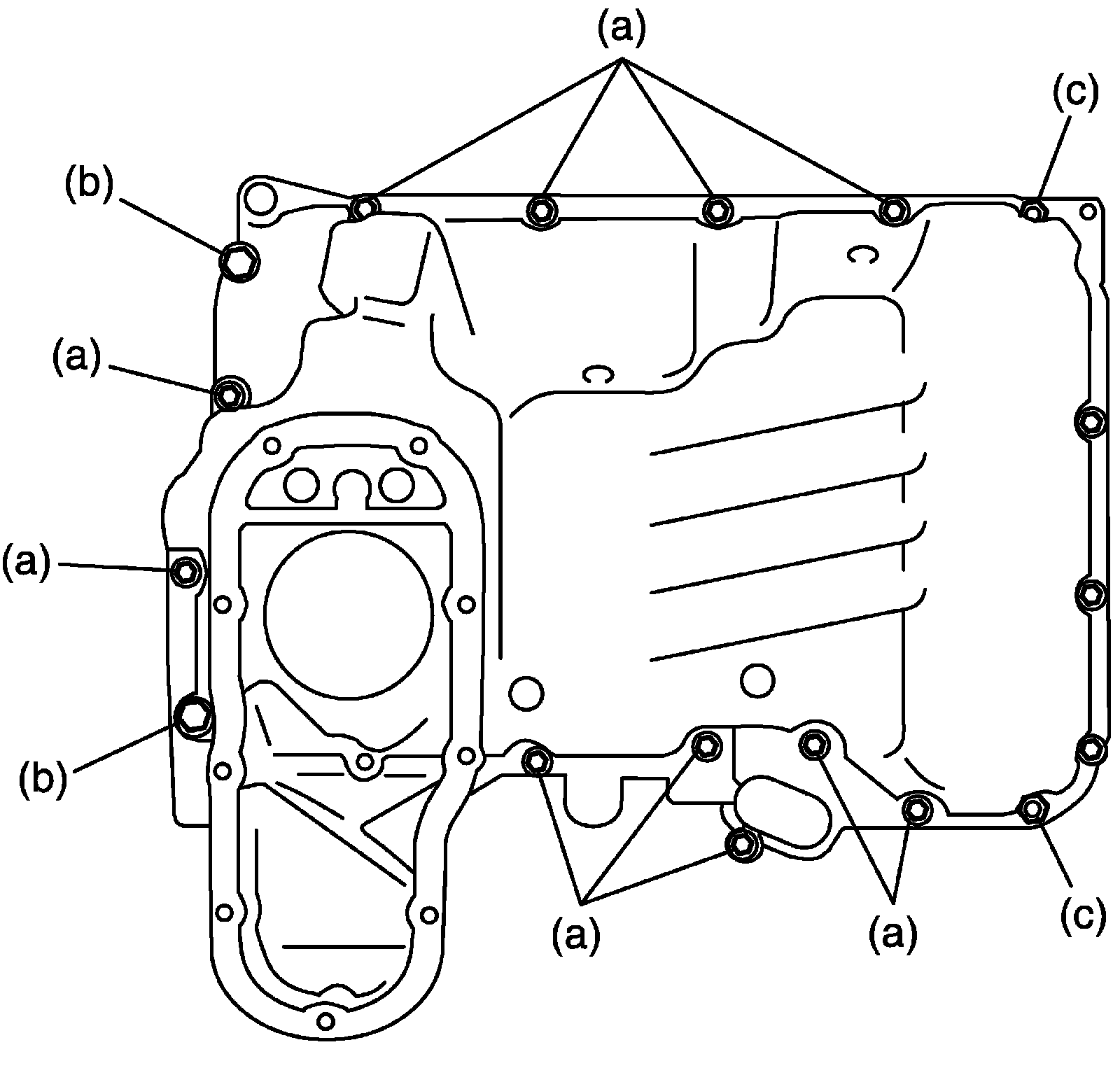

Oil Pan, Engine

Upper oil pan bolt (M6) (a) 11 Nm (1.1 kg-m, 8.0 ft. lbs.)
Upper oil pan bolt (MB) (b) 25 Nm (2.5 kg-m 19.5 ft. lbs.)
Upper oil pan nut (c) 11 Nm (1.1 kg-m, 8.0 ft. lbs.)





Tightening torque
Lower oil pan bolt (a) 11 Nm (1.1 kg-m, 8.0 ft. lbs.)
Lower oil pan nut (b) 11 Nm (1.1 kg-m, 8.0 ft. lbs.)
