A/C System Wiring Circuit Diagram (LCD Model)

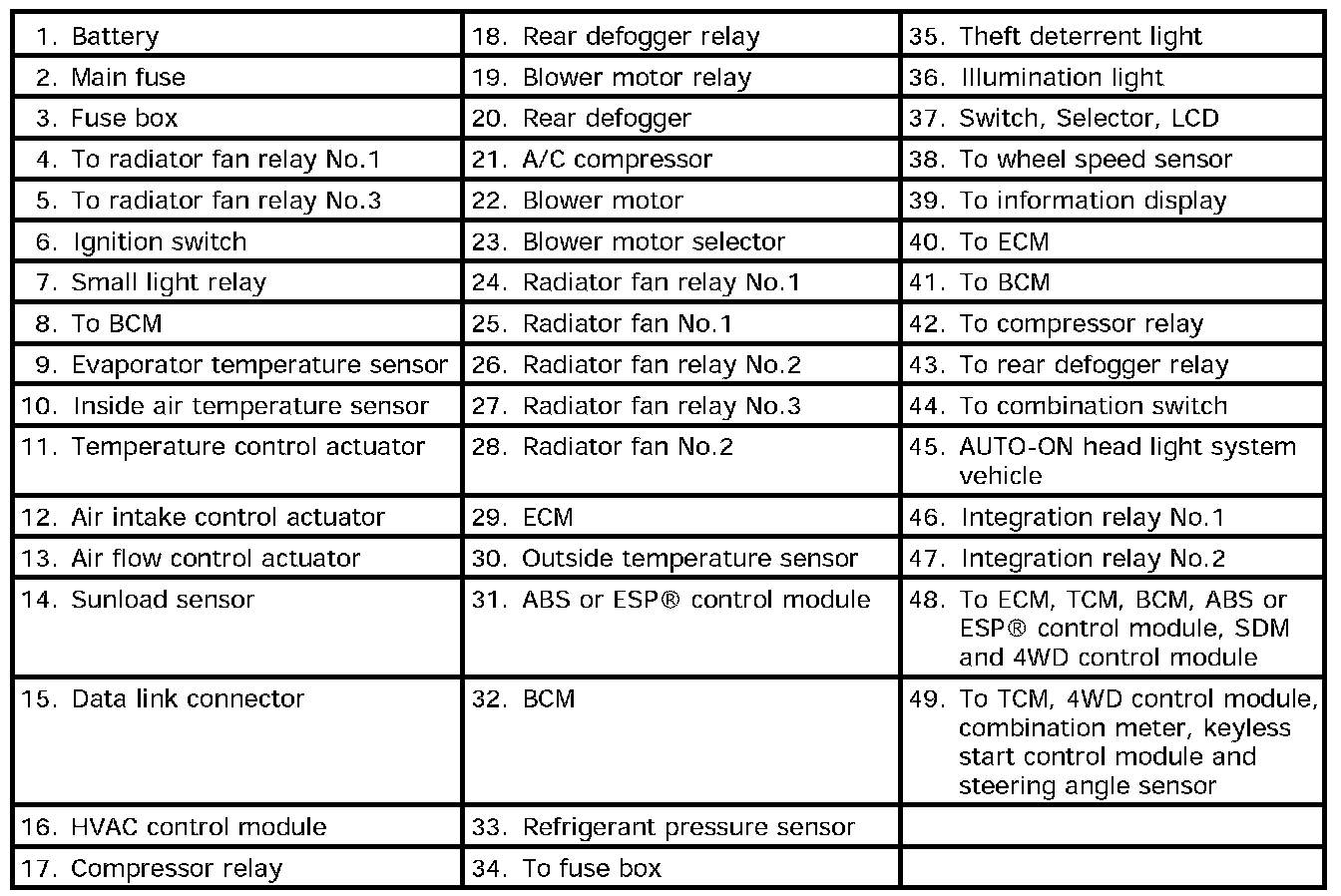

A/C System Wiring Circuit Diagram (LCD Model) (Part 1):

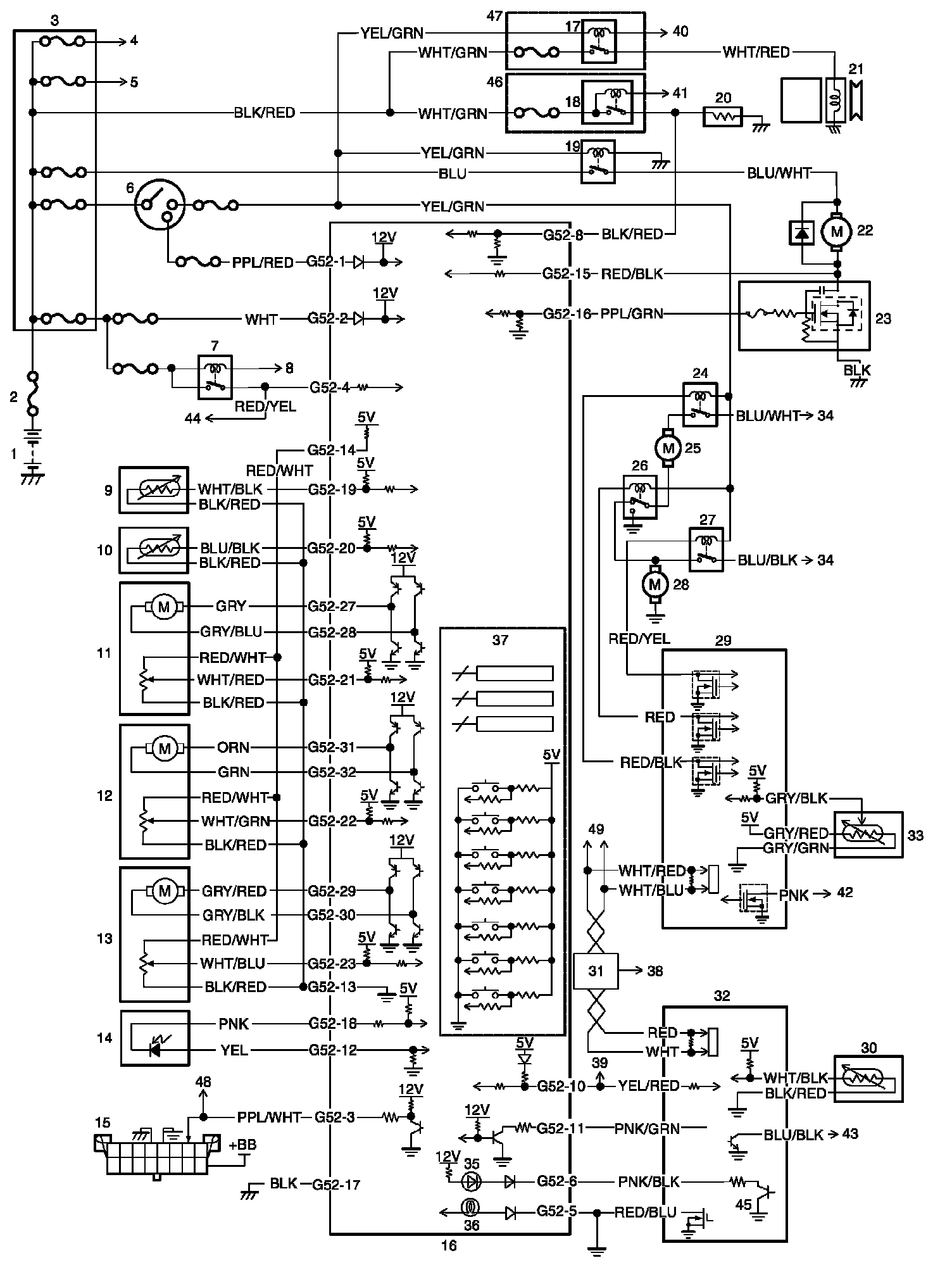

A/C System Wiring Circuit Diagram (LCD Model) (Part 2):
