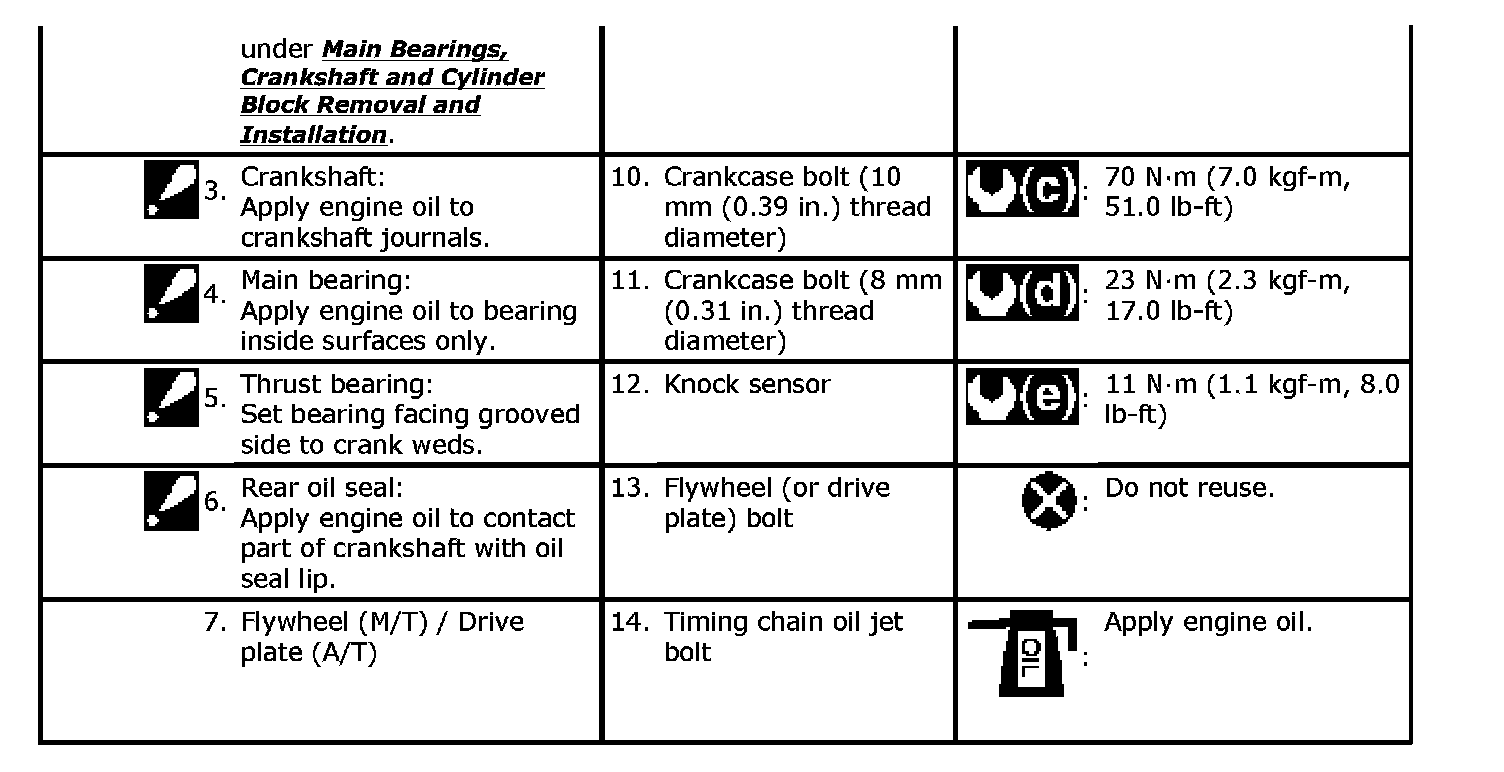

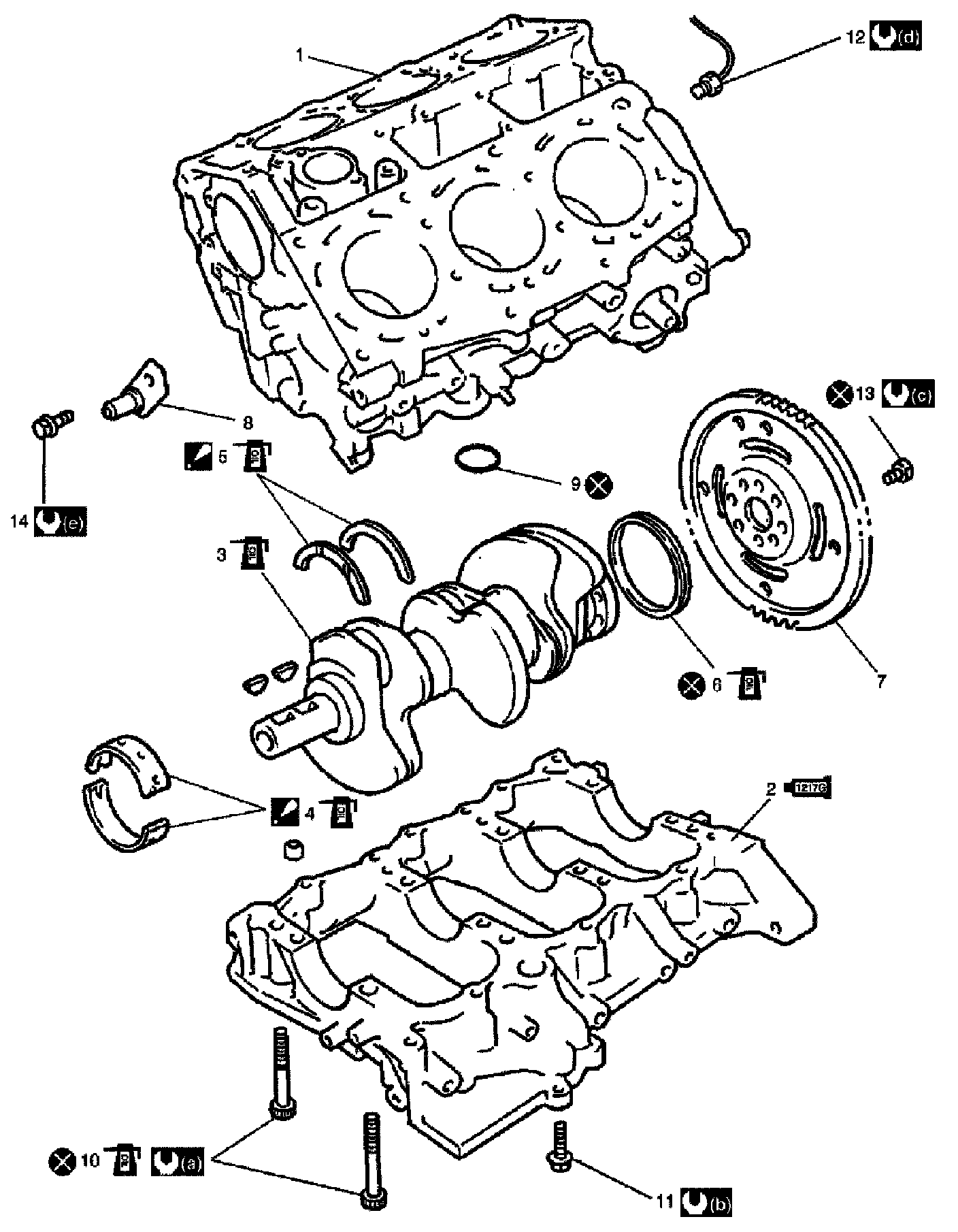

Main Bearings, Crankshaft and Cylinder Block Components
Main Bearings,
Crankshaft
and Cylinder Block Components
