Automatic Transmission/Transaxle
>>
Automatic Transmission Assembly Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Automatic Transmission Assembly Components

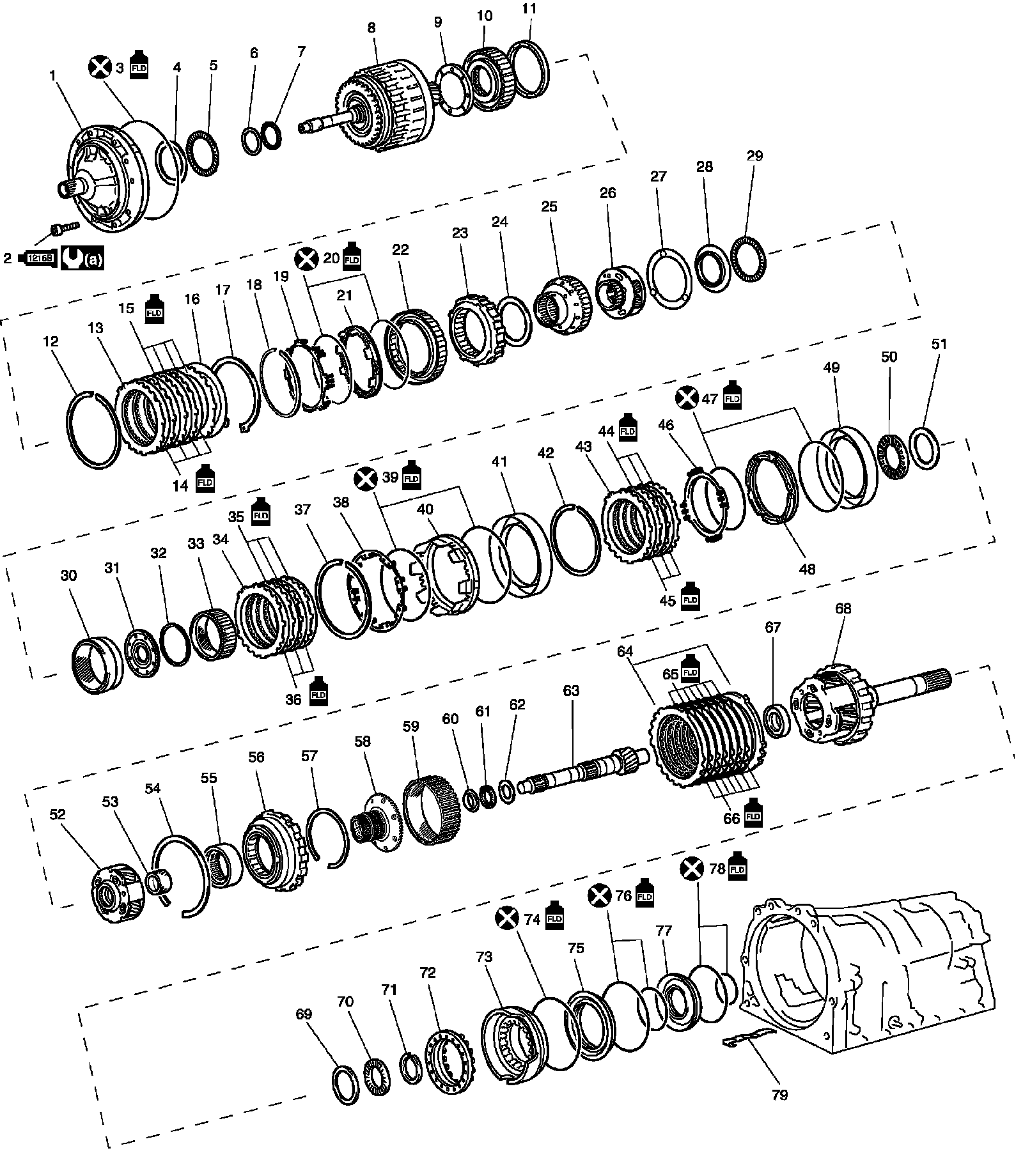

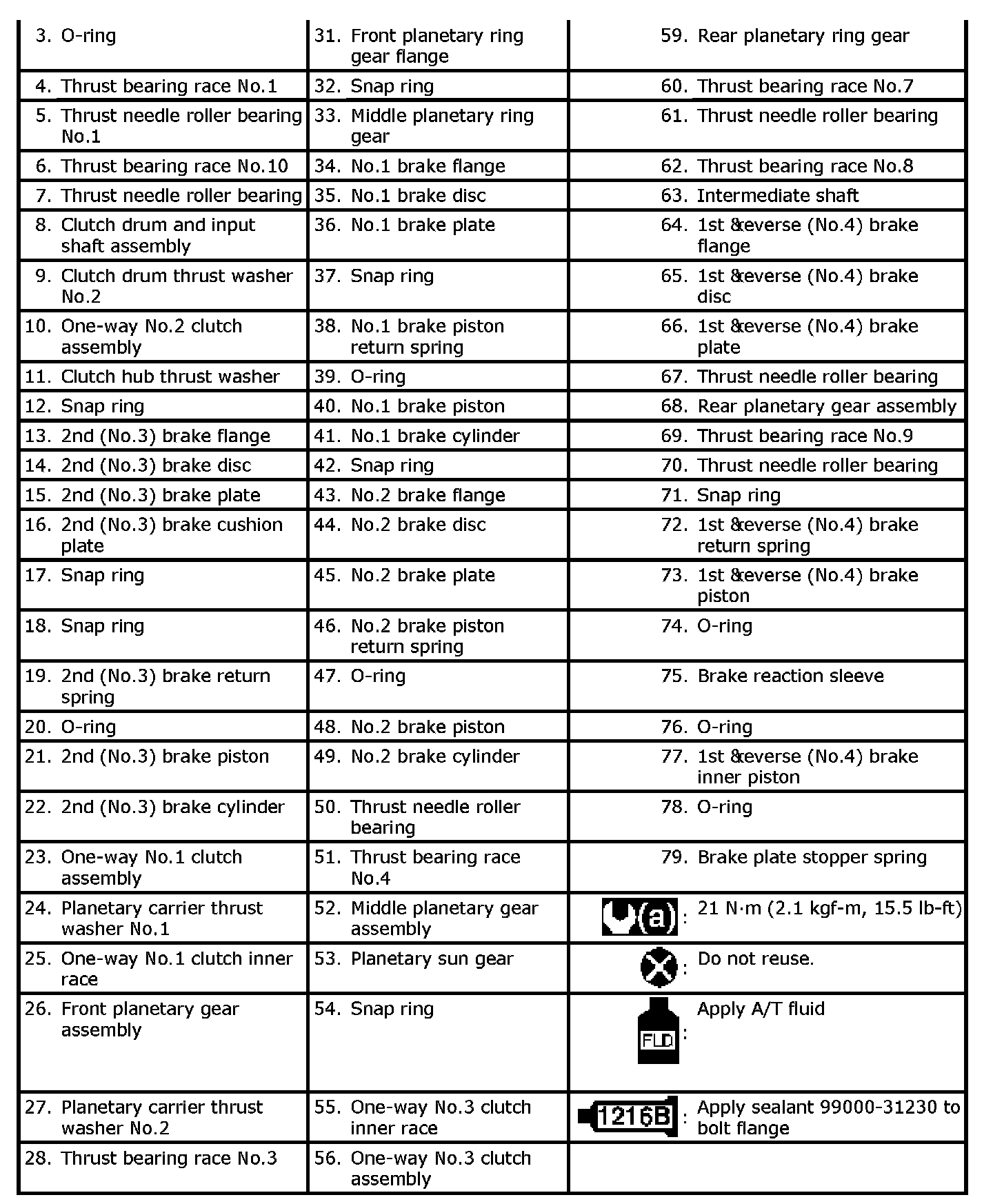

Automatic Transmission Unit Components
