System Schematic

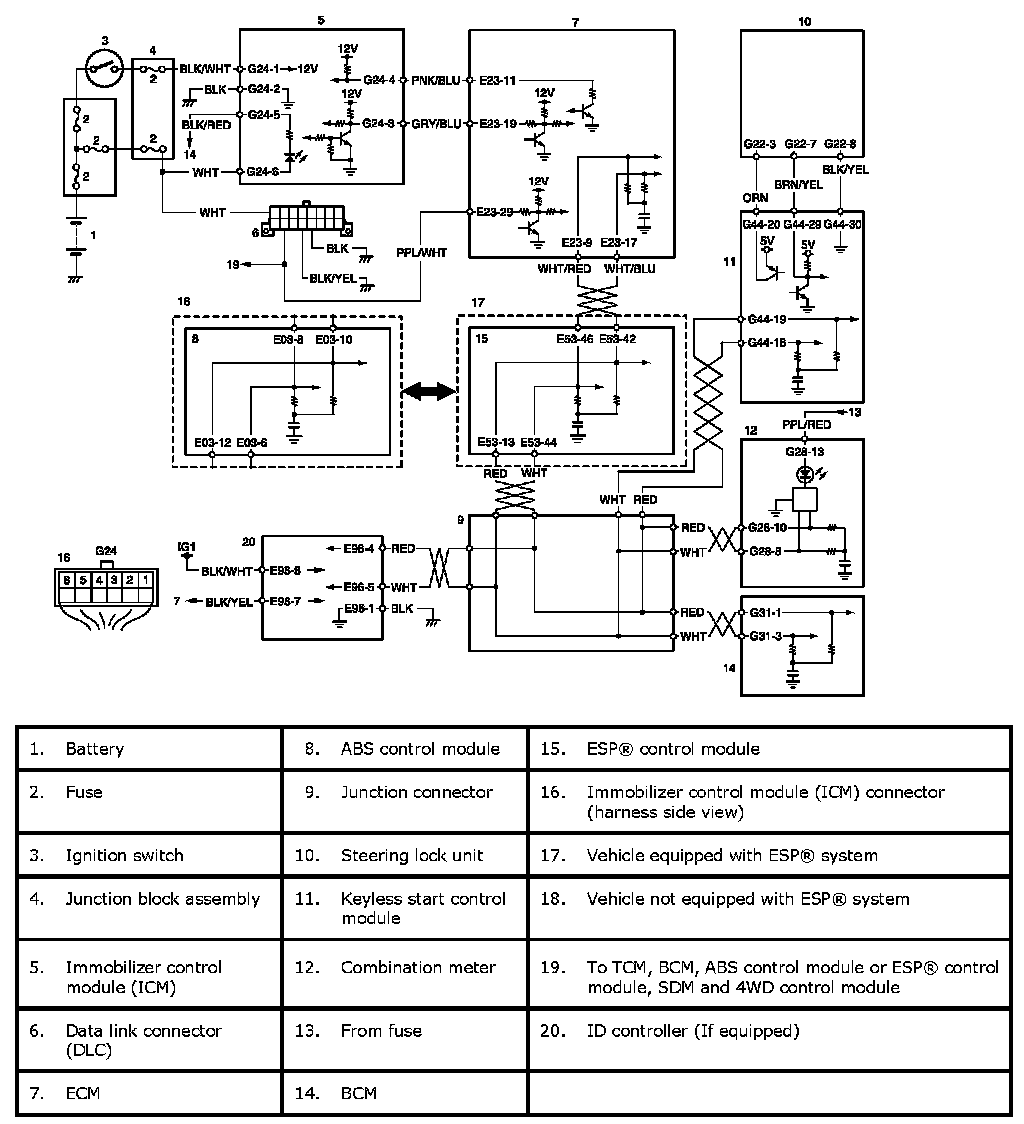

Immobilizer Control System Wiring Circuit Diagram

NOTE: For more details about power supply and ground wire circuits for ECM, BCM, ABS control module, keyless start control module and combination meter, refer to System Circuit Diagram.

Immobilizer Control System Wiring Circuit Diagram:
