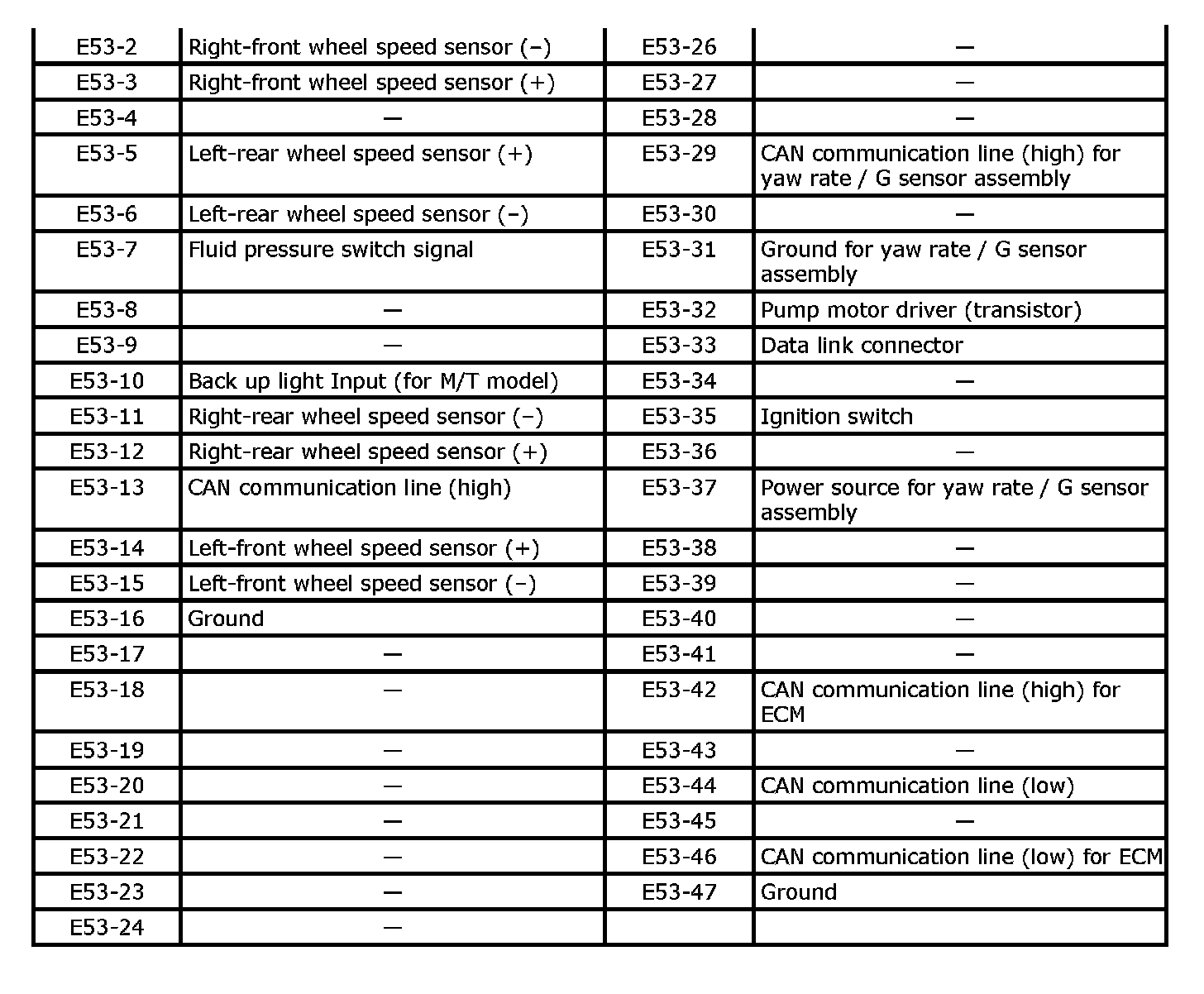

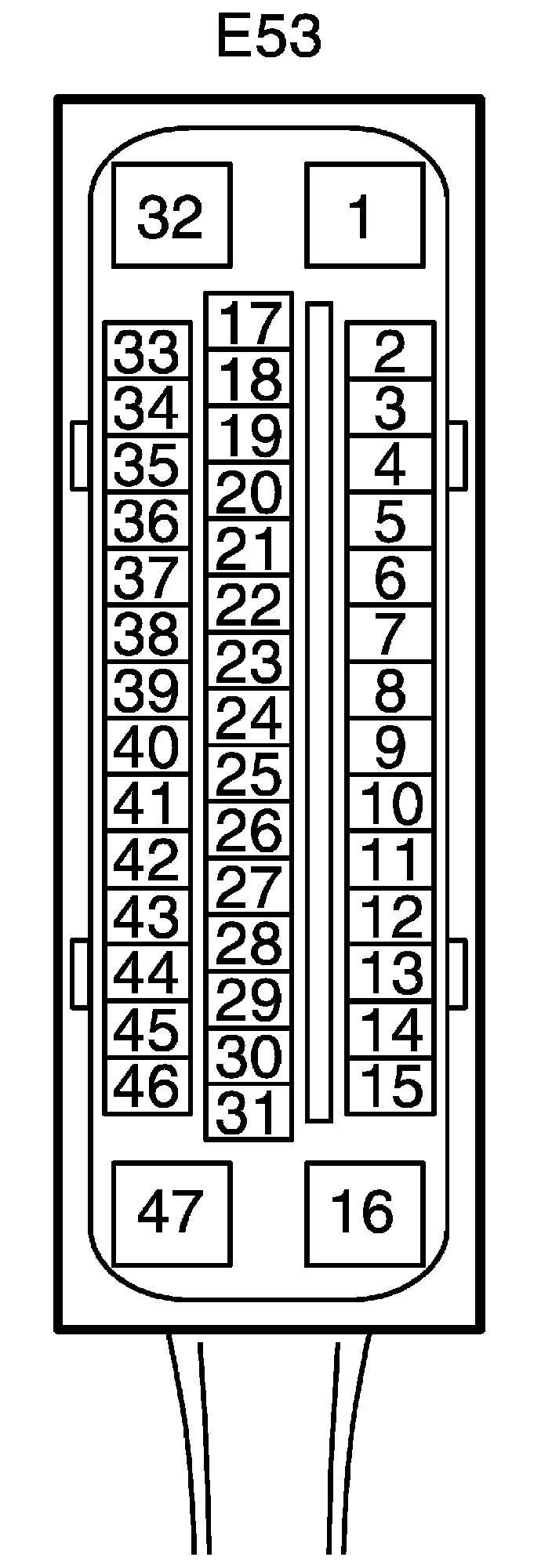

Terminal Arrangement of ESP(R) Control Module Connector (Viewed From Terminal Side)
Terminal Arrangement of ESP(R) Control Module Connector (Viewed from Terminal Side)
