Electronic Stability Program Wiring Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

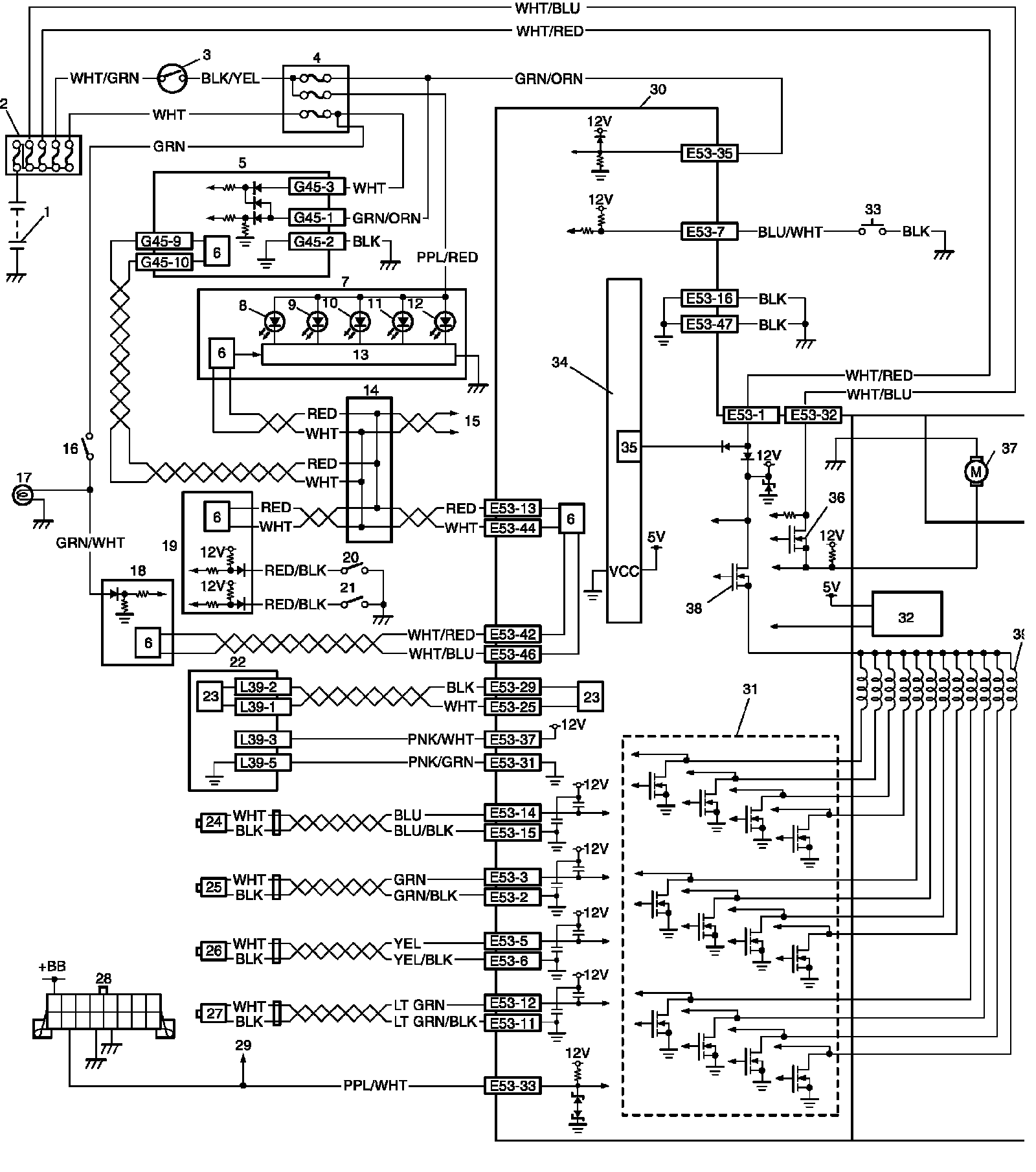

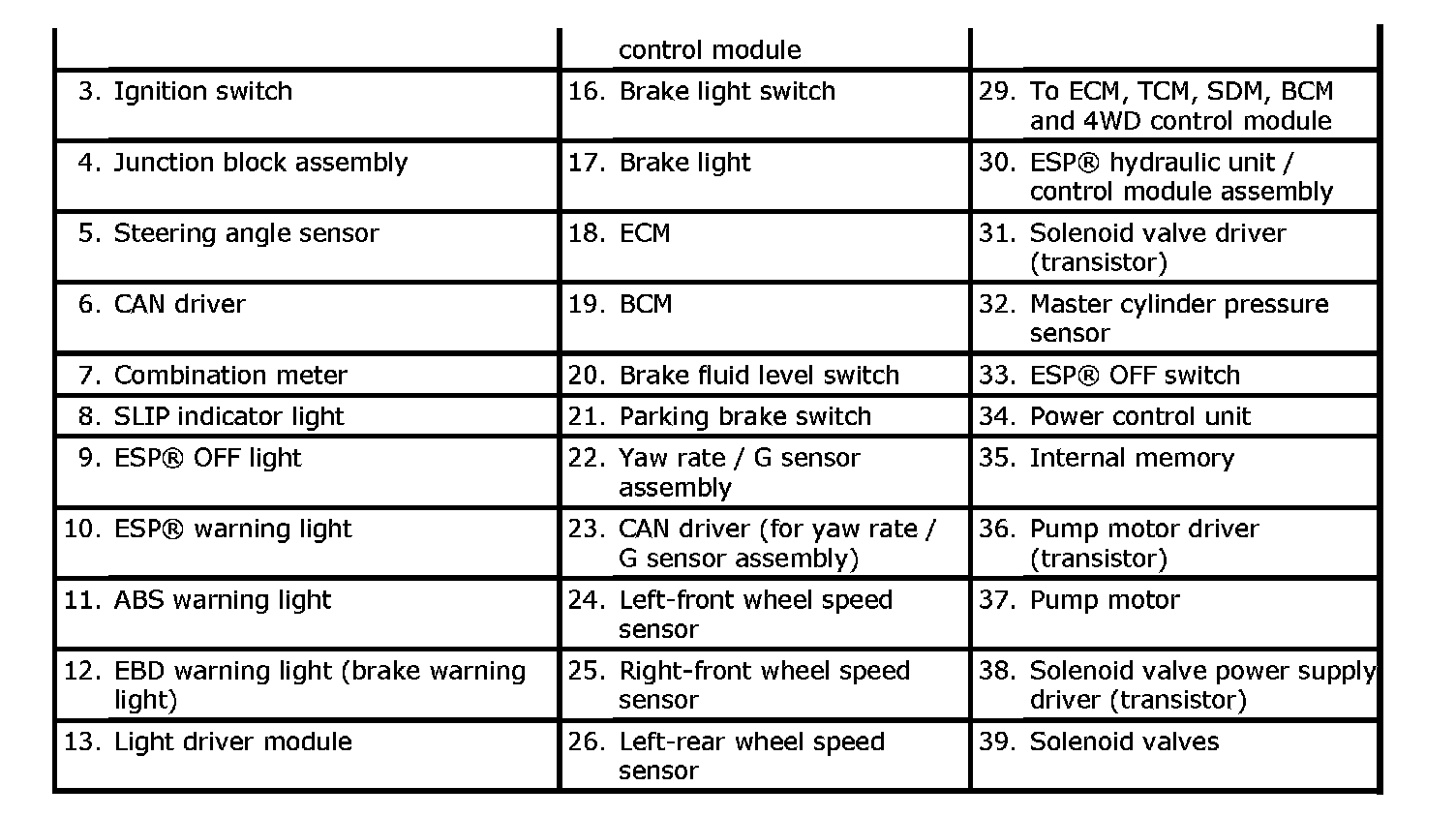

Electronic Stability Program Wiring Circuit Diagram
Electronic Stability Program Wiring Circuit Diagram
