Less Advanced Air Bag System

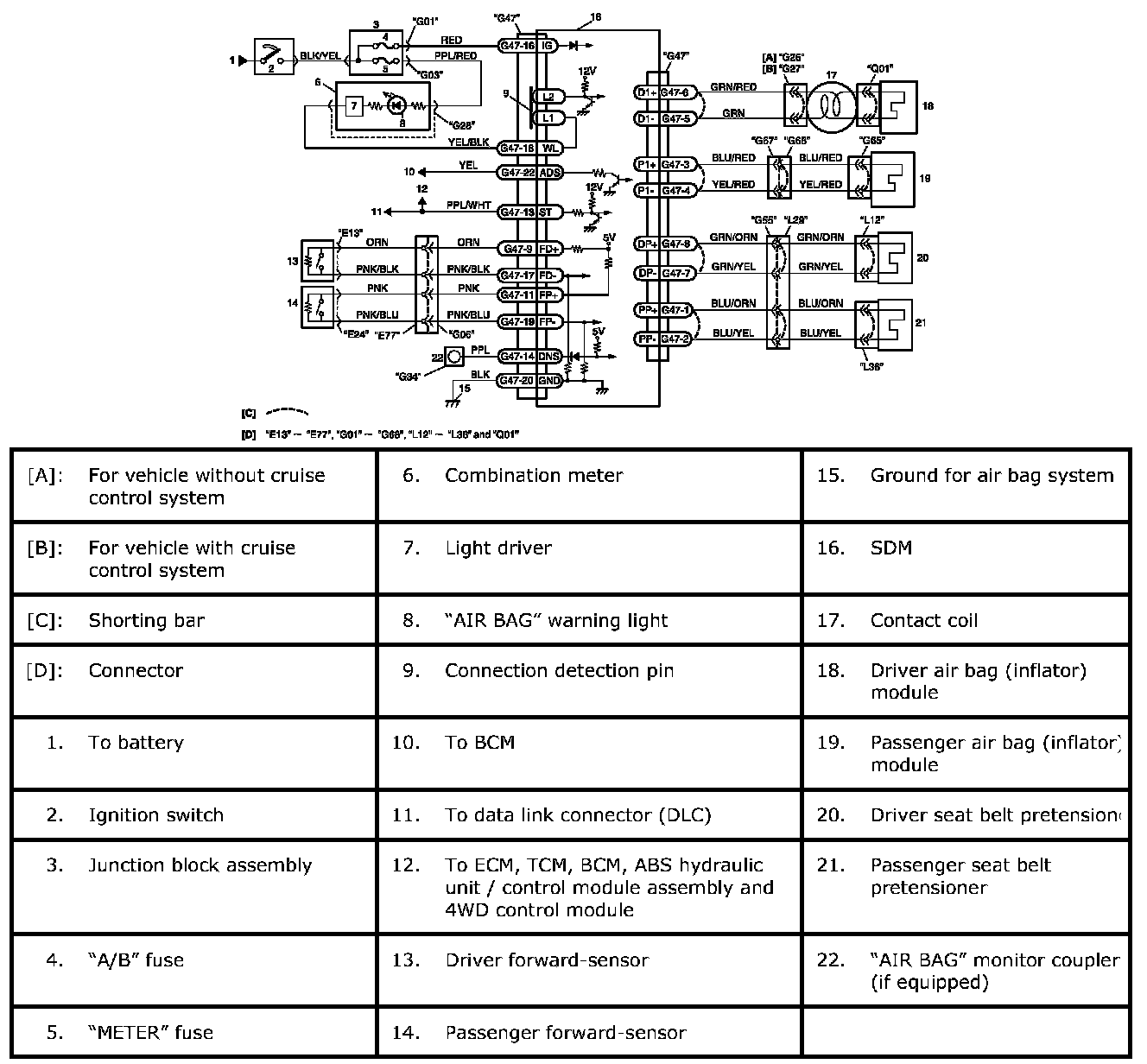

Air Bag System Without Side-Air Bag And Curtain-Air Bag:



Terminal Arrangement Of SDM (viewed From Harness Side) (Part 1):



Terminal Arrangement Of SDM (viewed From Harness Side) (Part 2):

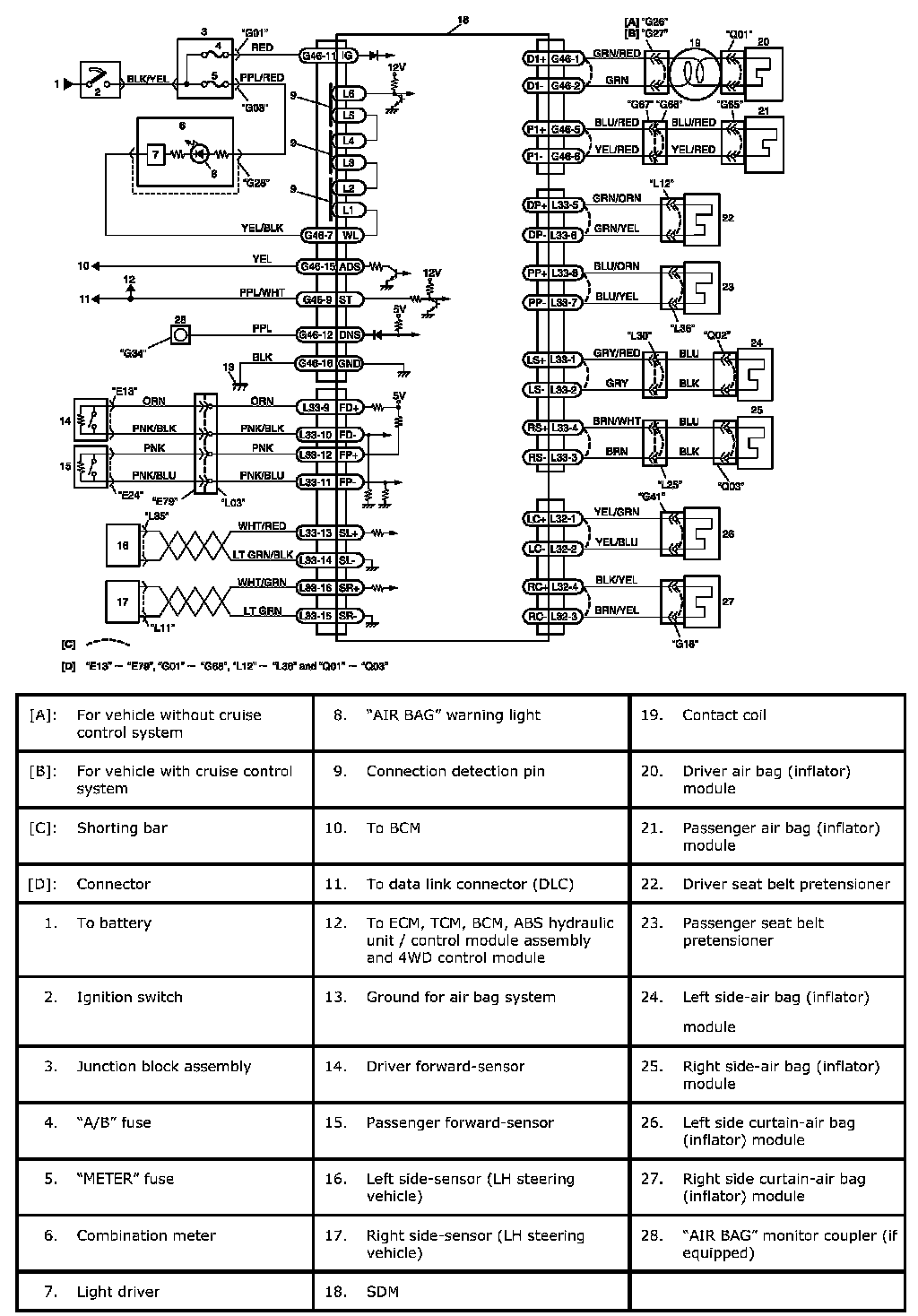

Air Bag System With Side-air Bag And Curtain-air Bag:



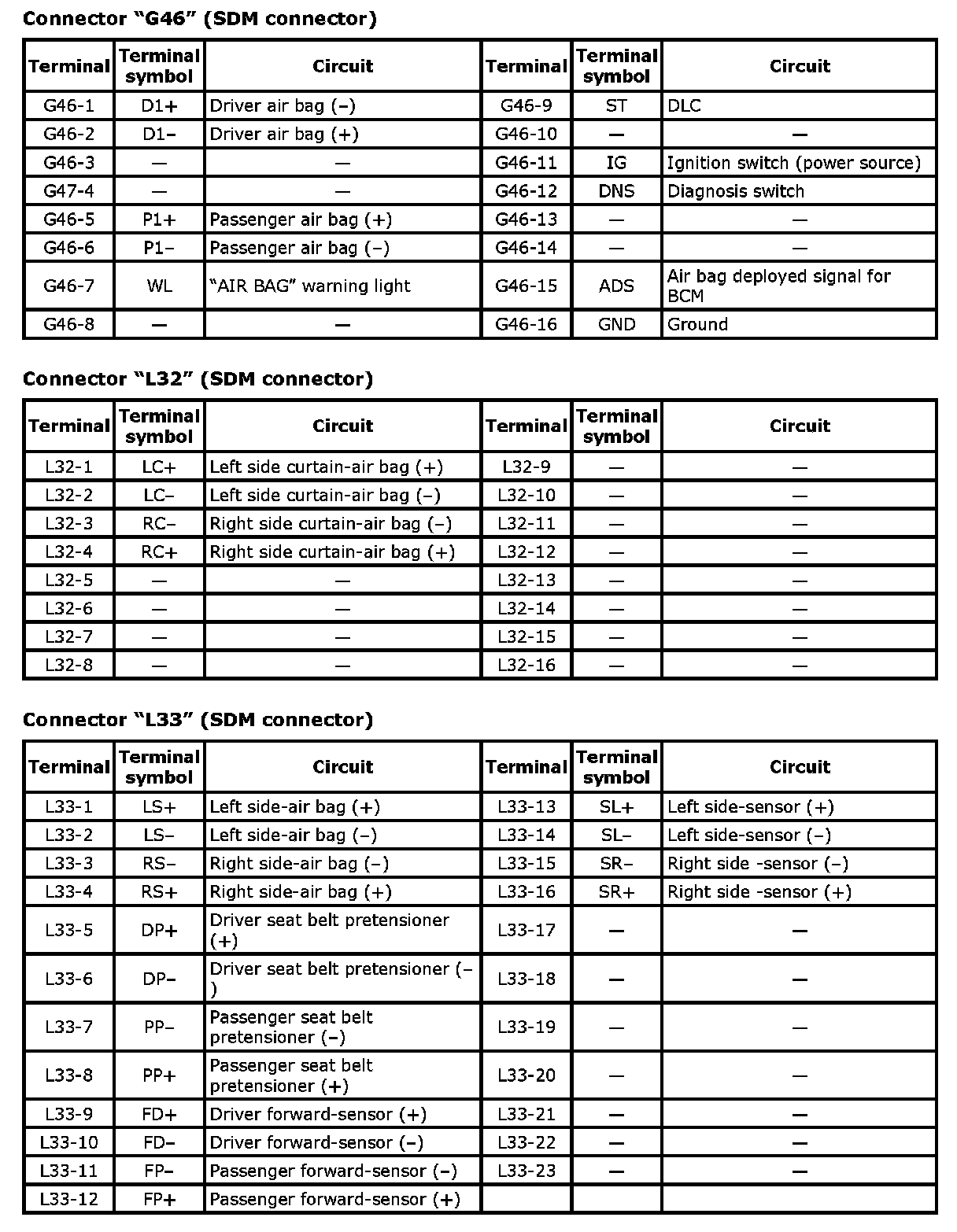

Terminal Arrangement Of SDM (Viewed From Harness Side) (Part 1):



Terminal Arrangement Of SDM (Viewed From Harness Side) (Part 2):
