Front Wheel Encoder On-Vehicle Inspection

Front Wheel Encoder On-Vehicle Inspection

Before inspect front wheel encoder, remove front drive shaft.

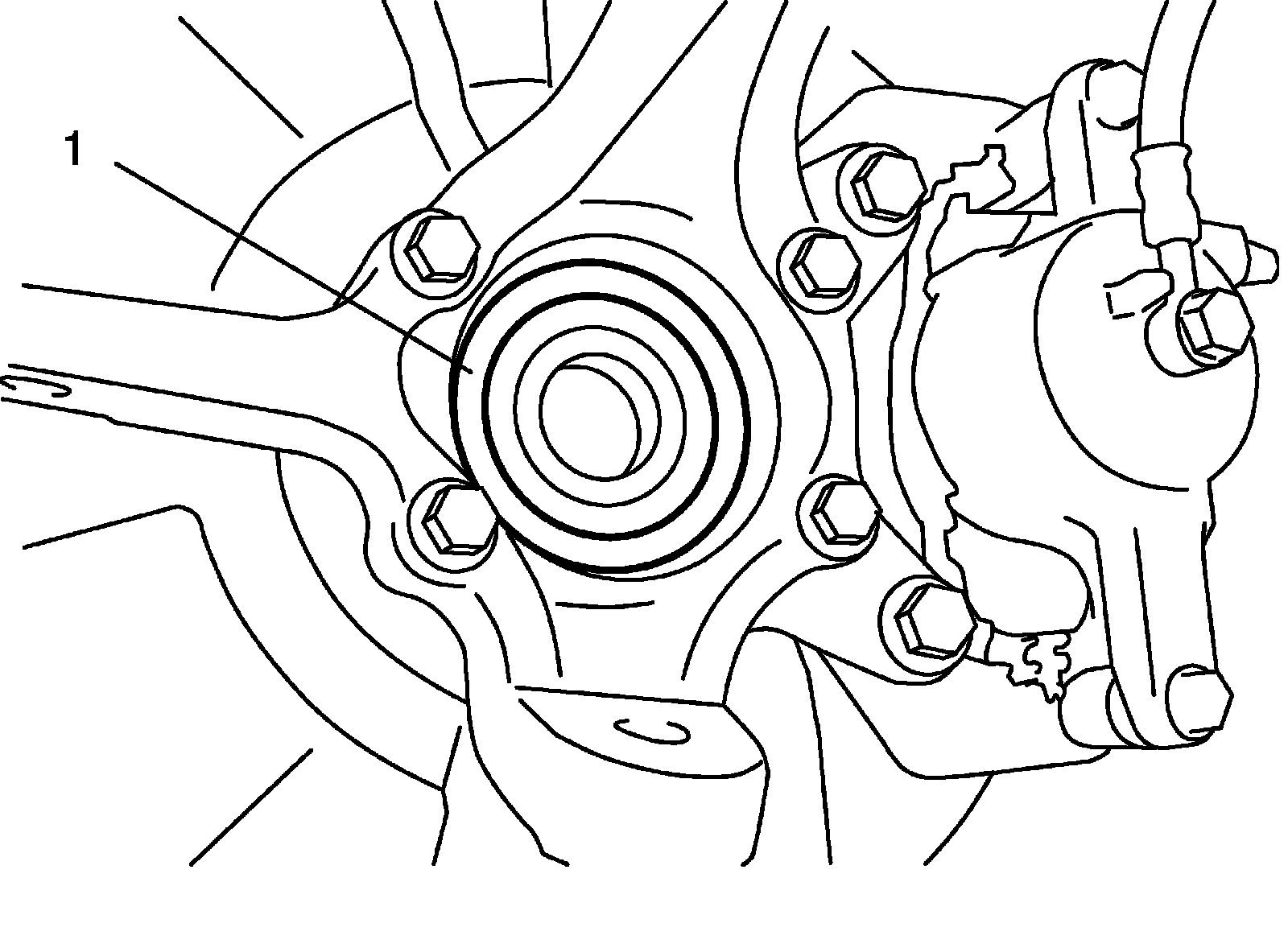

^ Check encoder (1) for being crack, damaged or deformed.
^ Turn wheel and check if encoder rotation is free from eccentricity and looseness.
^ Check that no foreign material is attached.

If any faulty is found, repair or replace.
