Serial Data Link Circuit Check
Serial Data Link Circuit Check
Inspection
Step 1-Step 2:

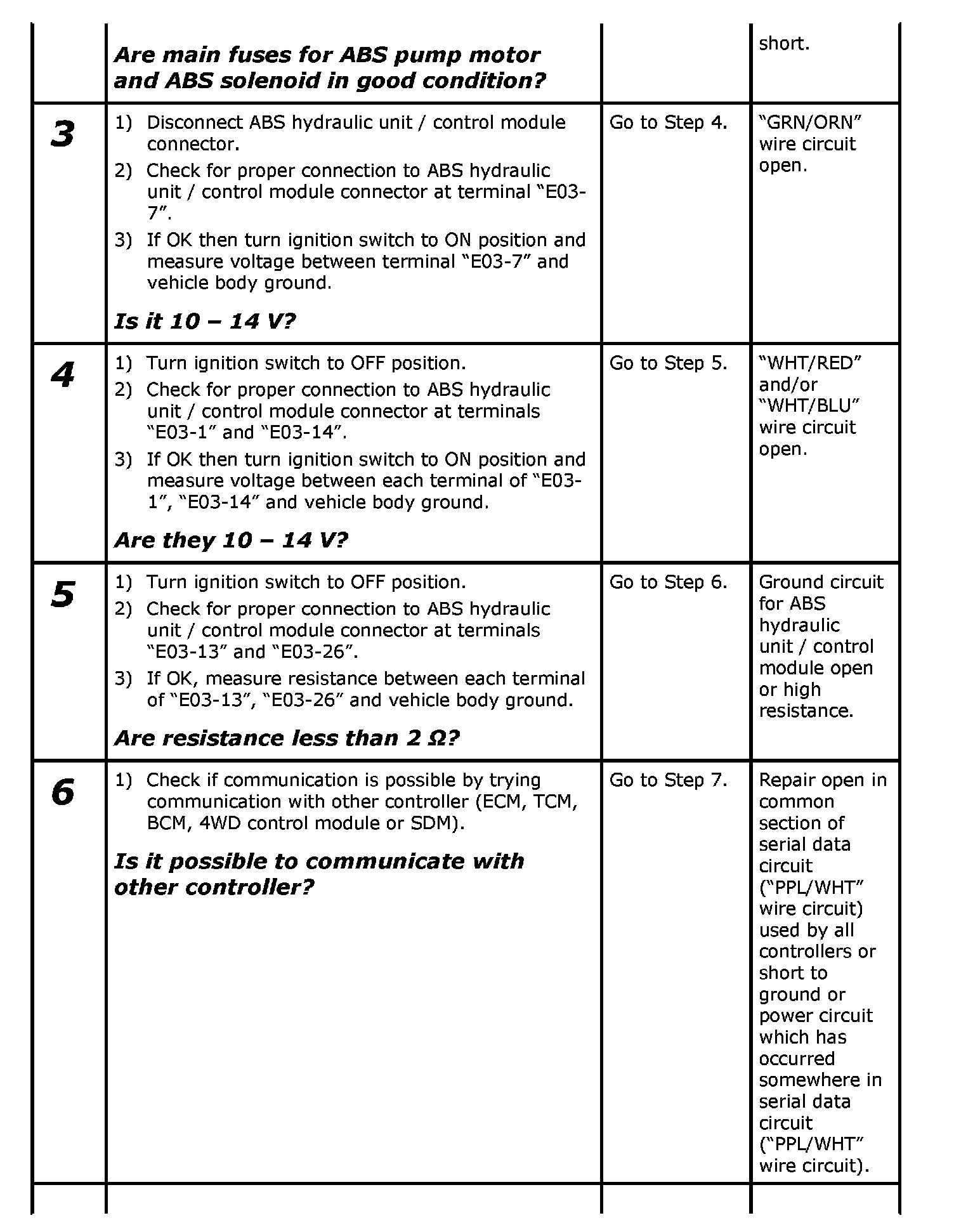

Step 3-Step 6:

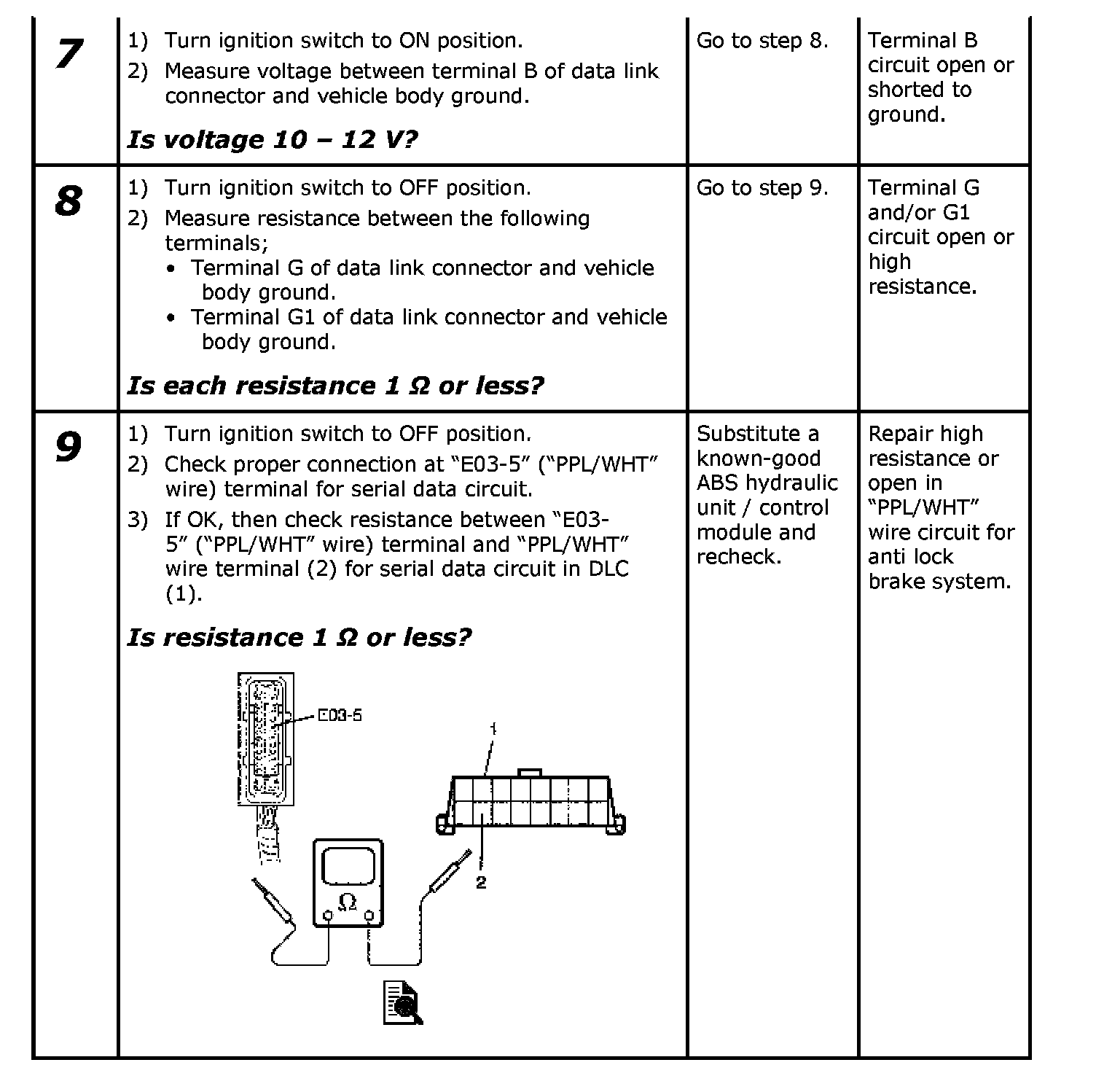

Step 7-Step 9:
