Rear Cover Disassembly and Assembly

Rear Cover Disassembly and Assembly
1. Remove the valve body assembly.

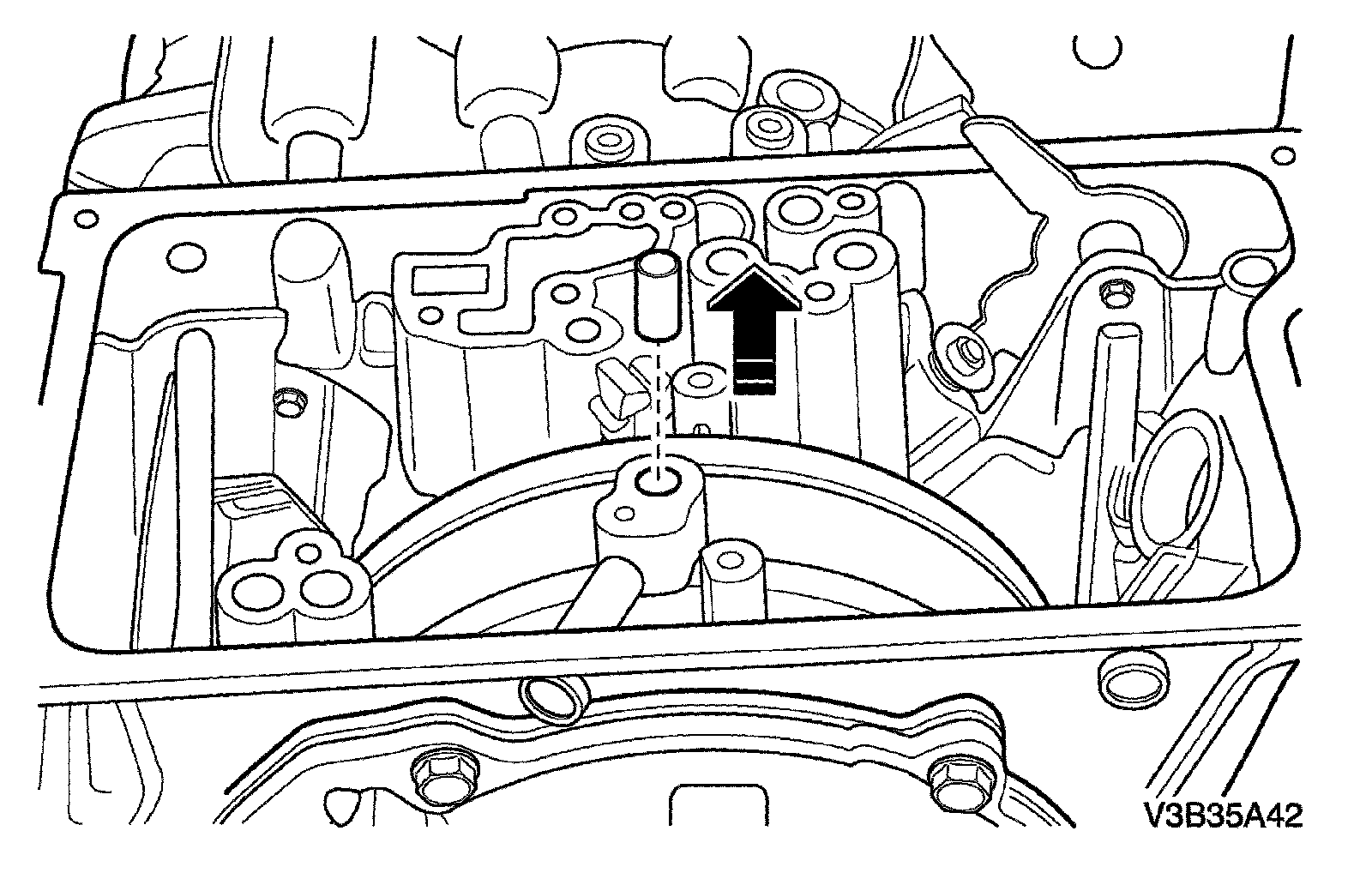

2. Pull out sealing sleeve (brake C with a kind of nail.
3. Turn transaxle by 90°.

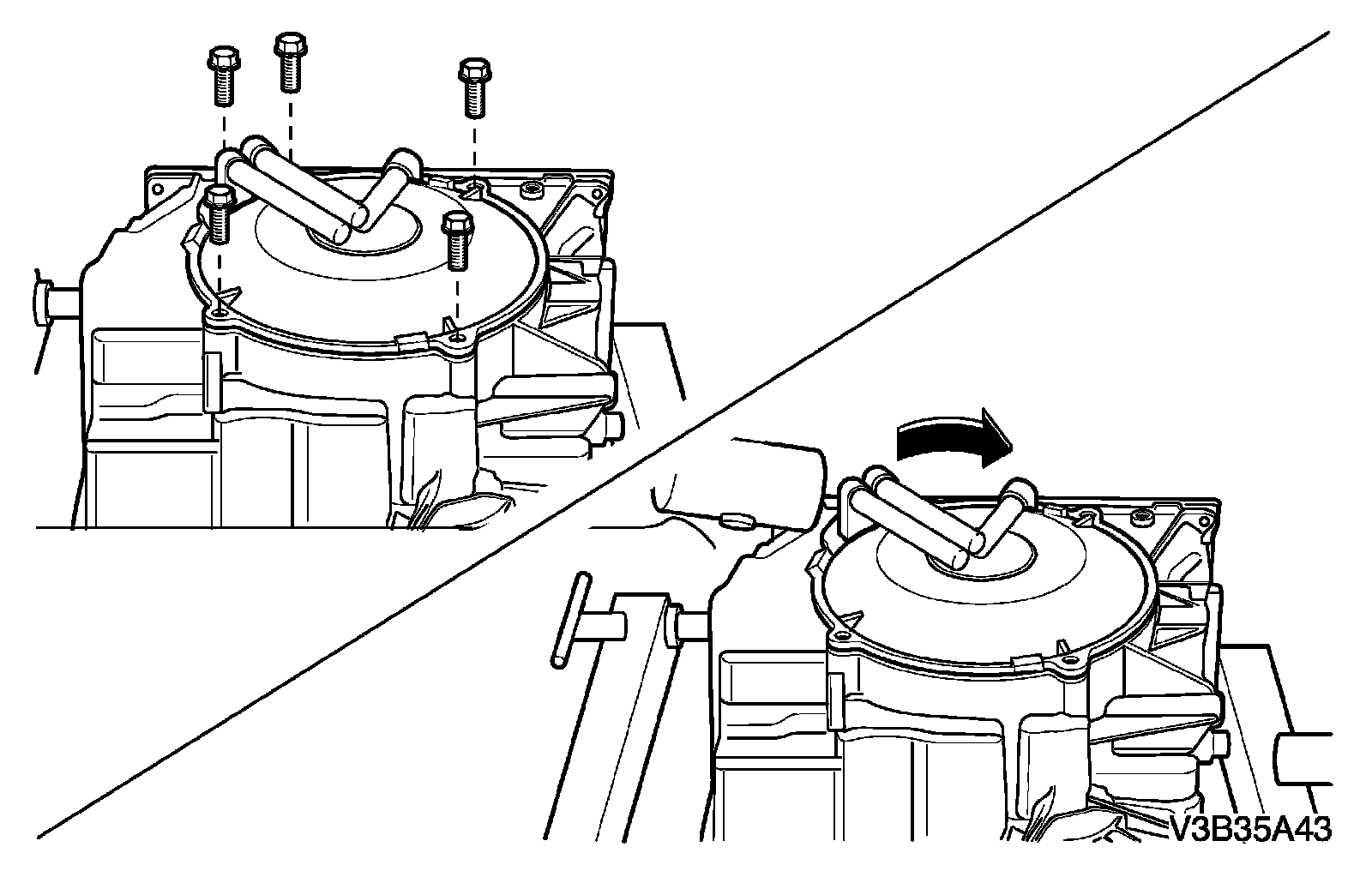

4. Remove the rear cover bolts.
5. Hit the rear cover rightly.
6. Remove the cover.
7. Installation should follow the removal procedure in the reverse order.
