Removal and Replacement

Drive Axle Oil Seal Removal and Installation
Removal
1. Disconnect the negative battery cable.
2. Remove the drive axles.

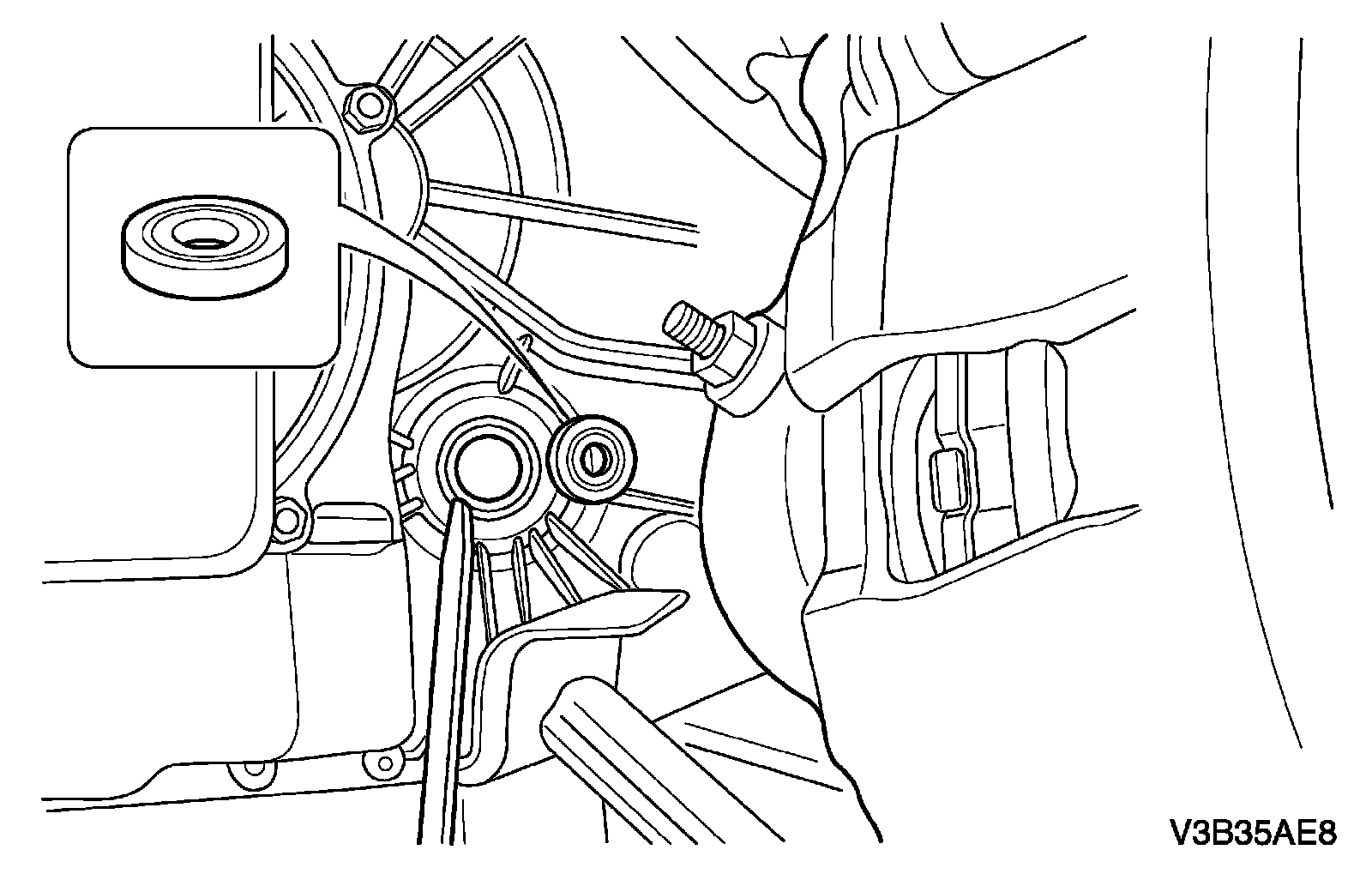

3. Remove the transaxle drive seal using a screwdriver. If necessary, crush the seal first with the screwdriver in order to loosen the seal from the case.





Installation
Tools Required:
DW2003001 Axle Seal Installer (LH)
DW2003002 Axle Seal Installer (RH)

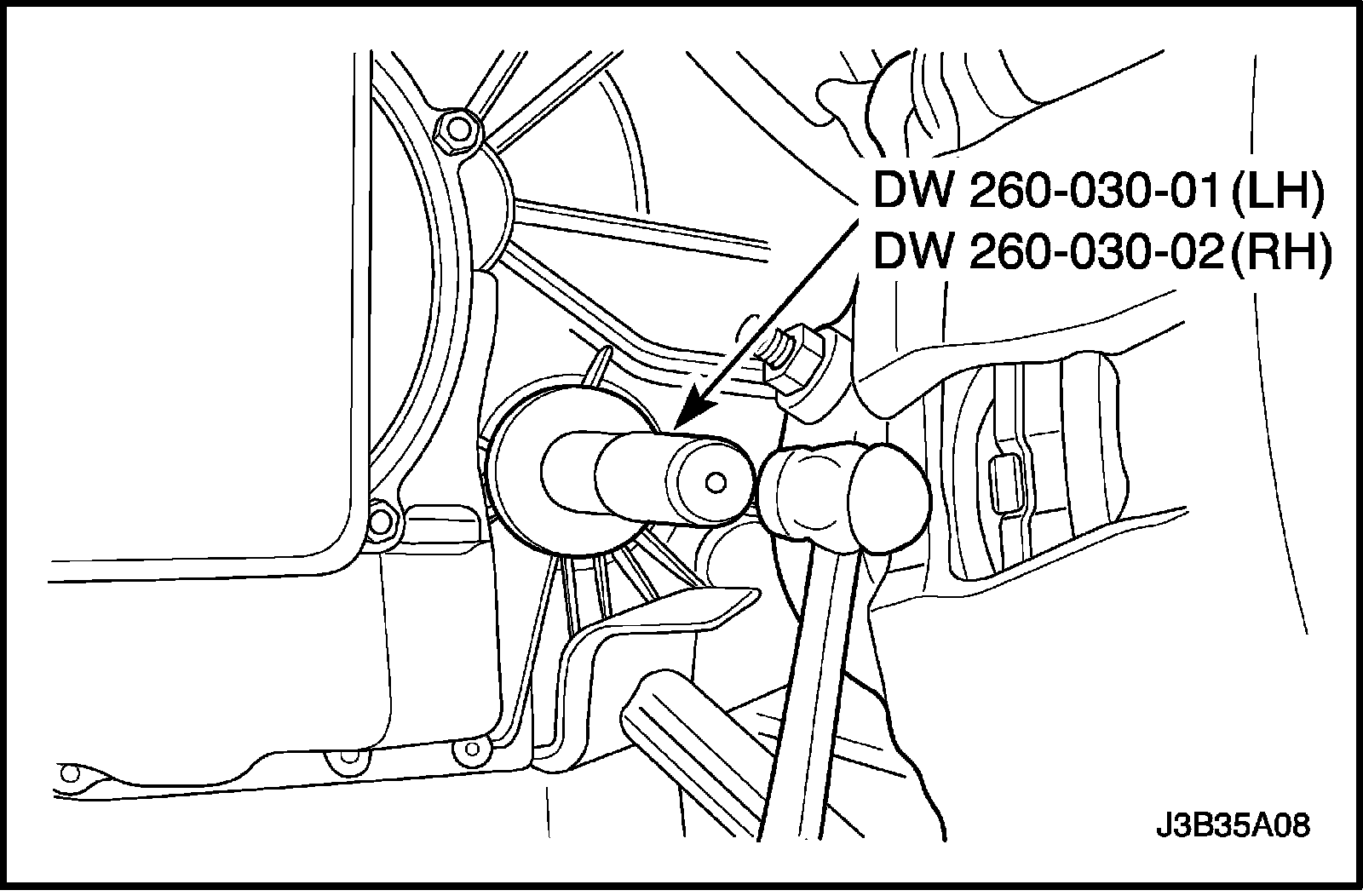

1. Install the transaxle drive seal using the axle seal installer DW260-030-01 (LH) or DW260030-02 (RH).
2. Install the drive axles.
3. Connect the negative battery cable.
