Shift Mode Diagram

Shift Mode Diagram

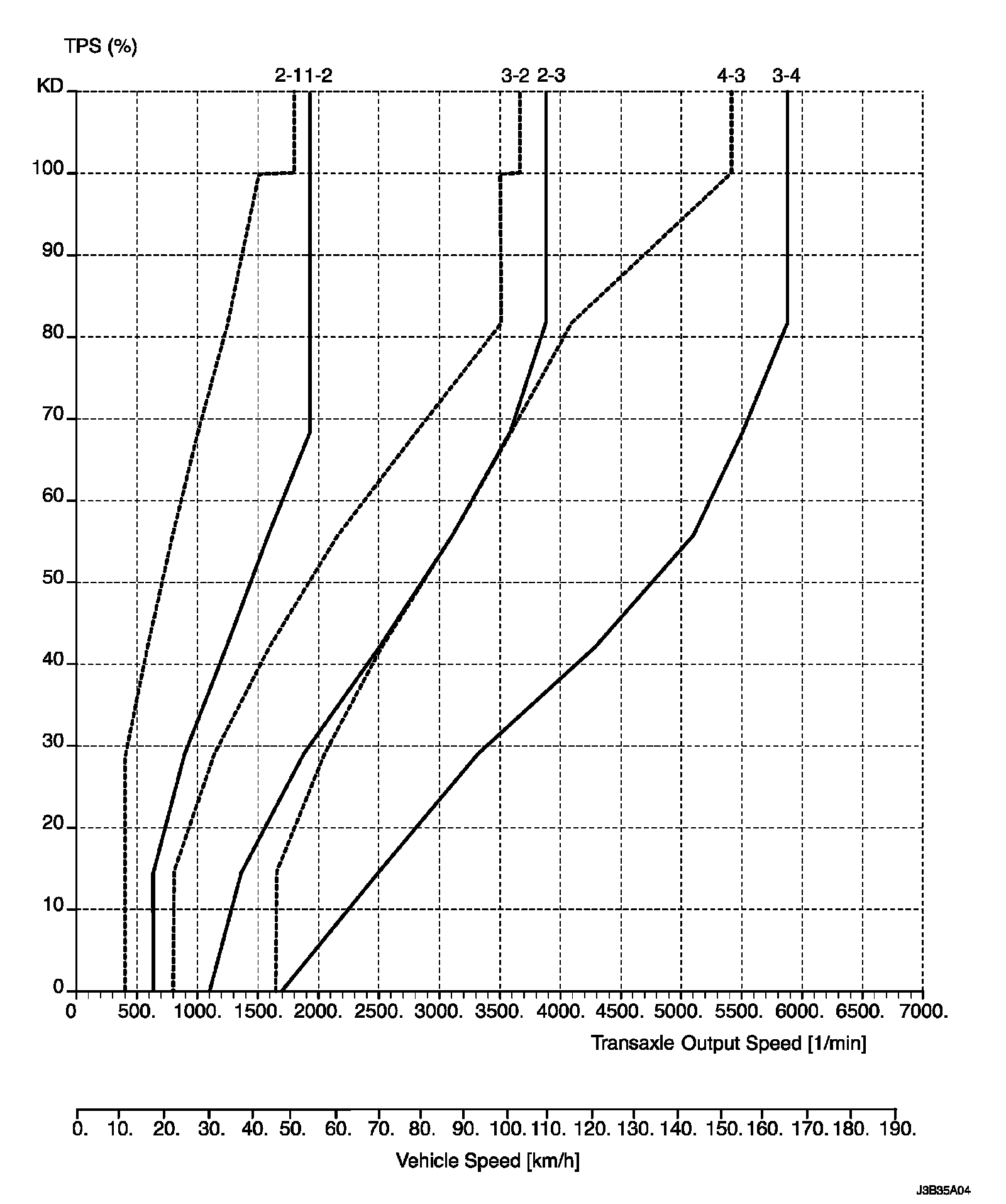

Economic Mode (2.0 DOHC)

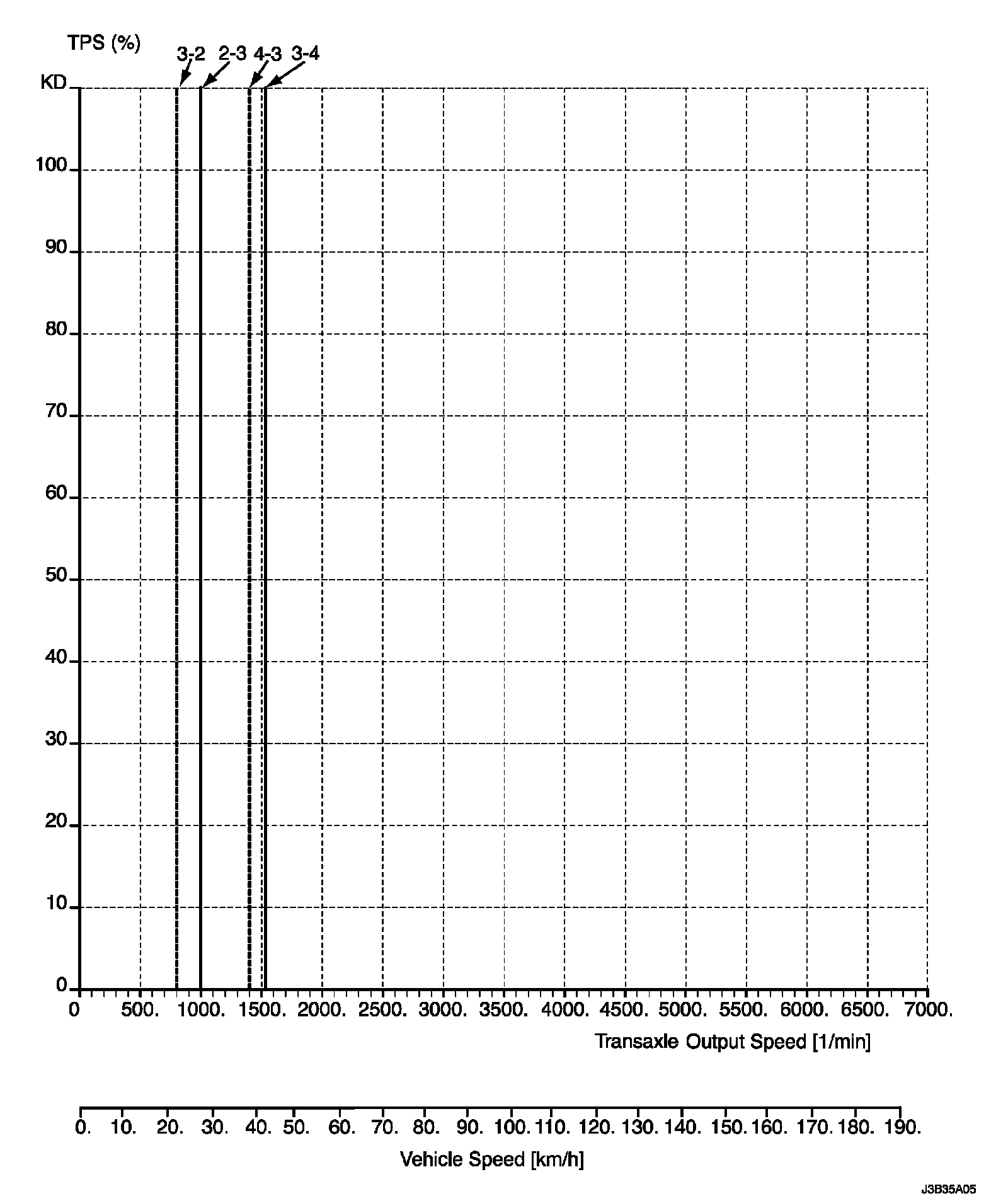

Lock-Up Clutch Applied (Economic Mode; Fourth Gear) (2.0 DOHC)

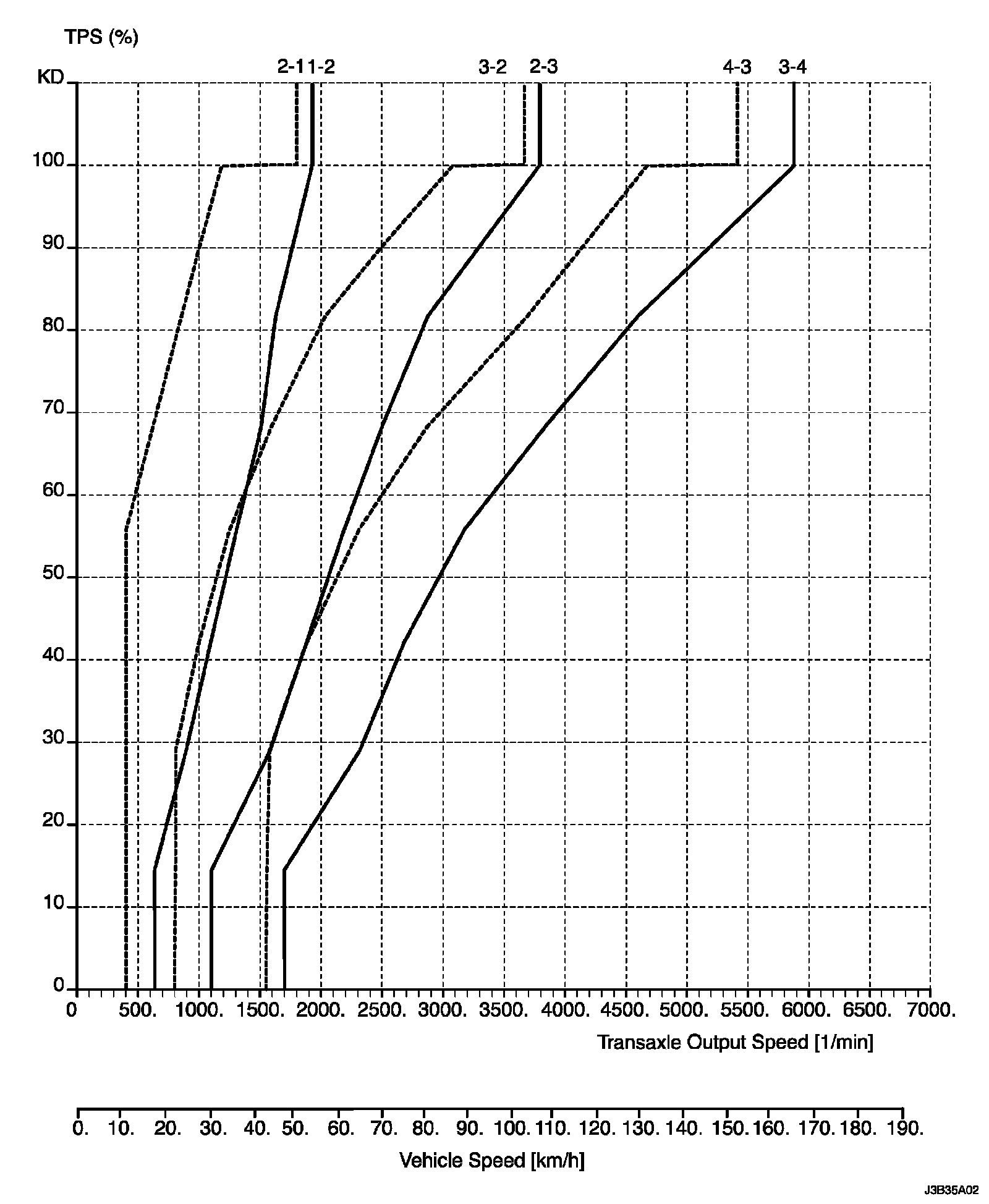

Power Mode (2.0 DOHC)

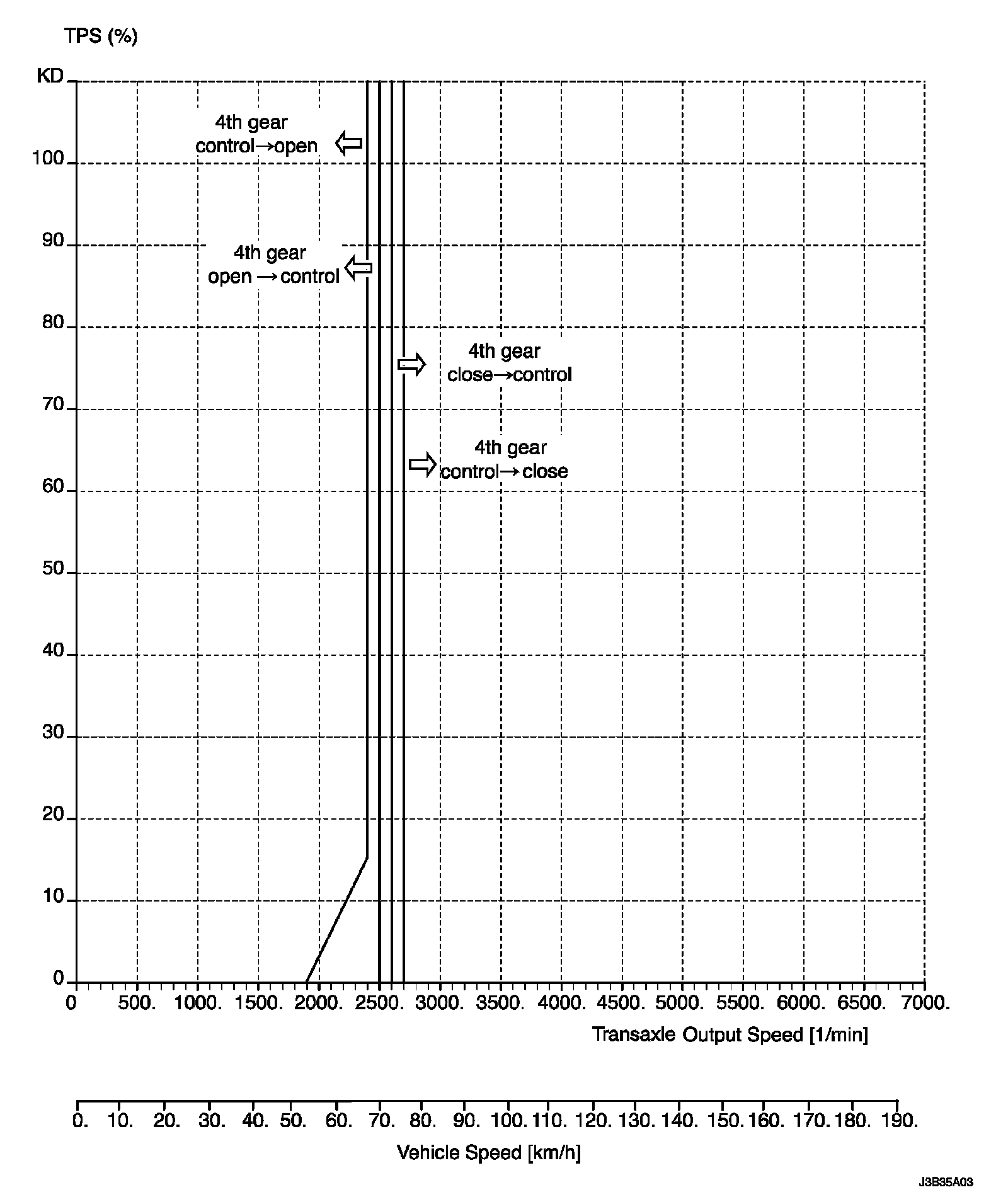

Hold Mode (2.0 DOHC)
