For Notchback Model

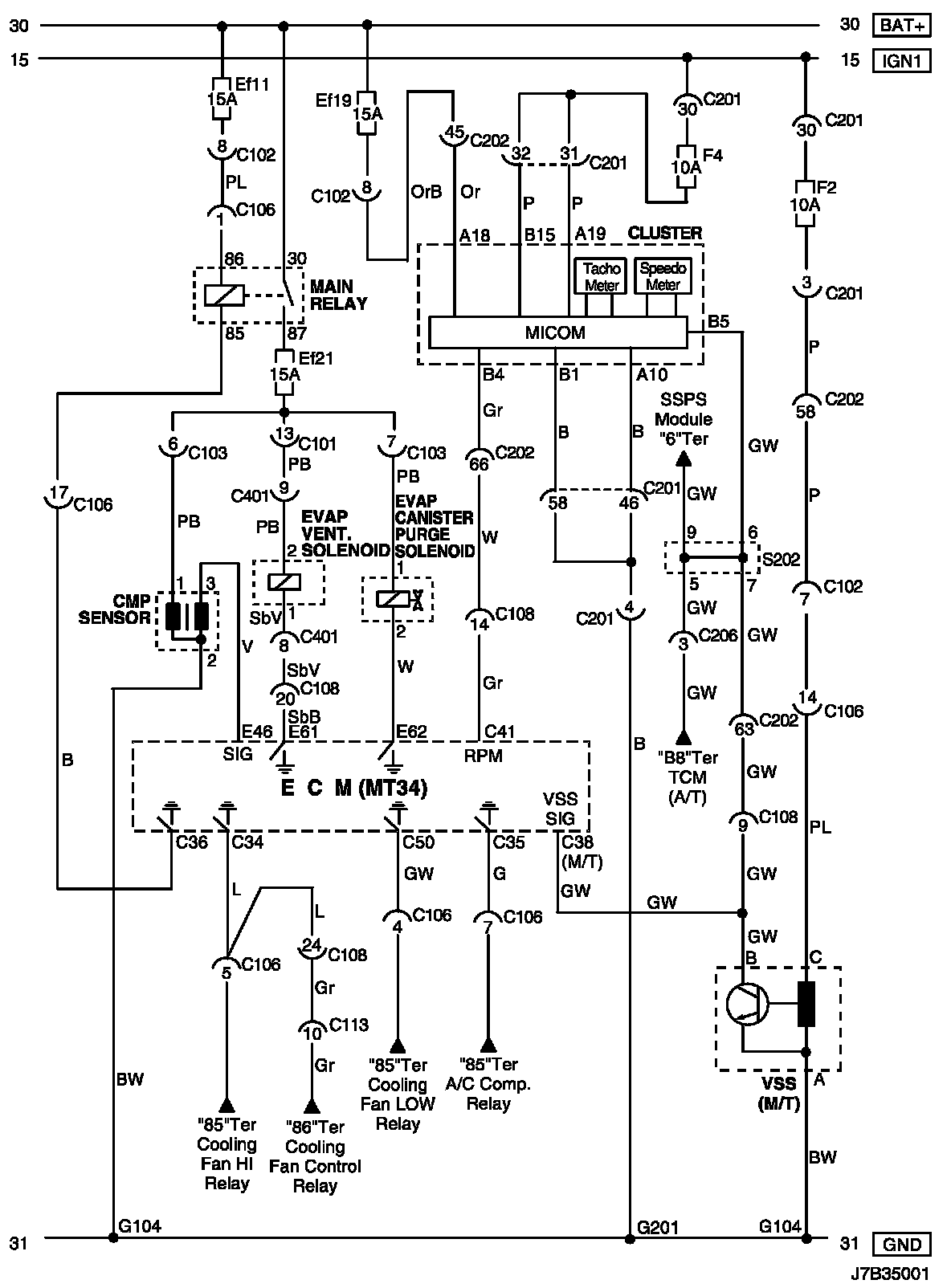

EVAP Canister Purge Solenoid, EVAP Vent. Solenoid, CMP Sensor, Cluster and VSS Circuit (For NOTCHBACK Model)EVAP Canister Purge Solenoid, EVAP Vent. Solenoid, CMP Sensor, Cluster and VSS Circuit (For NOTCHBACK Model):
Connector Information
Connector Information:

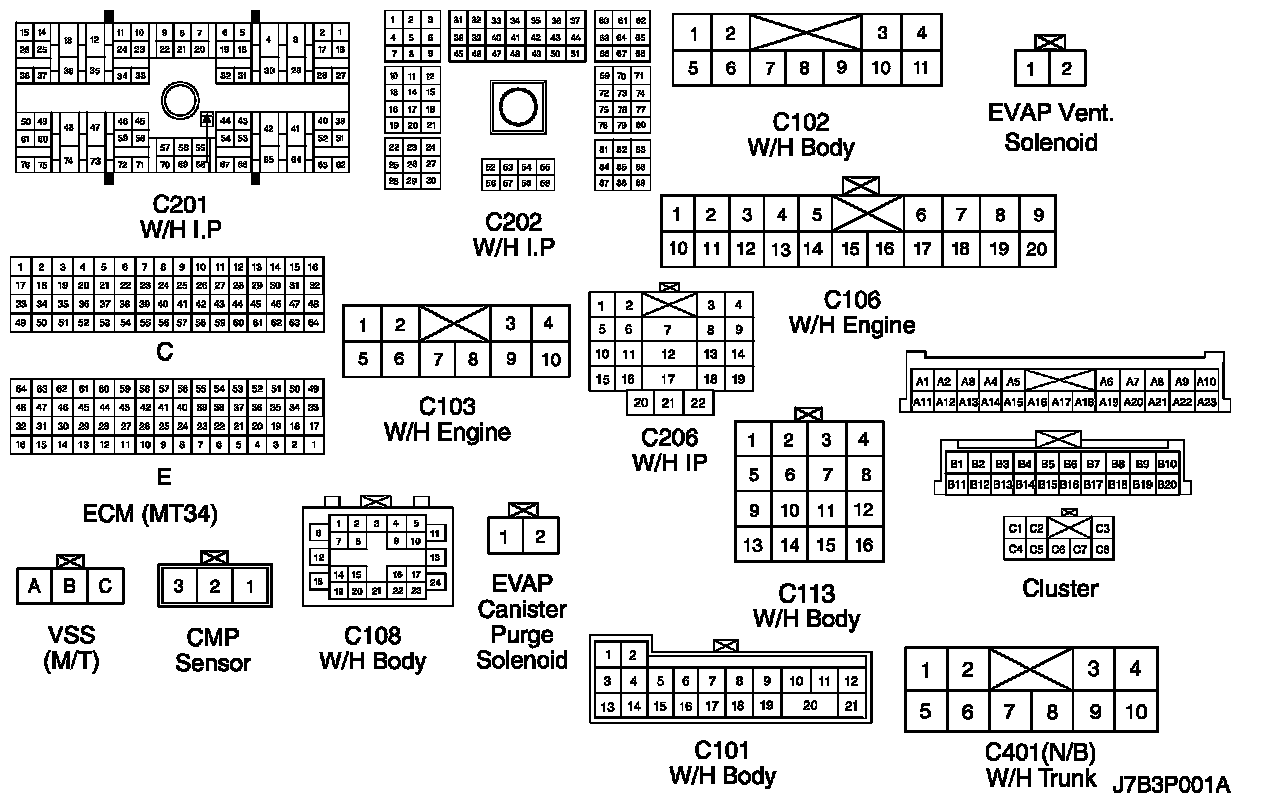

Connector Identification Symbol and Pin Number Position
Connector Identification Symbol and Pin Number Position:
Position of Connectors and Grounds

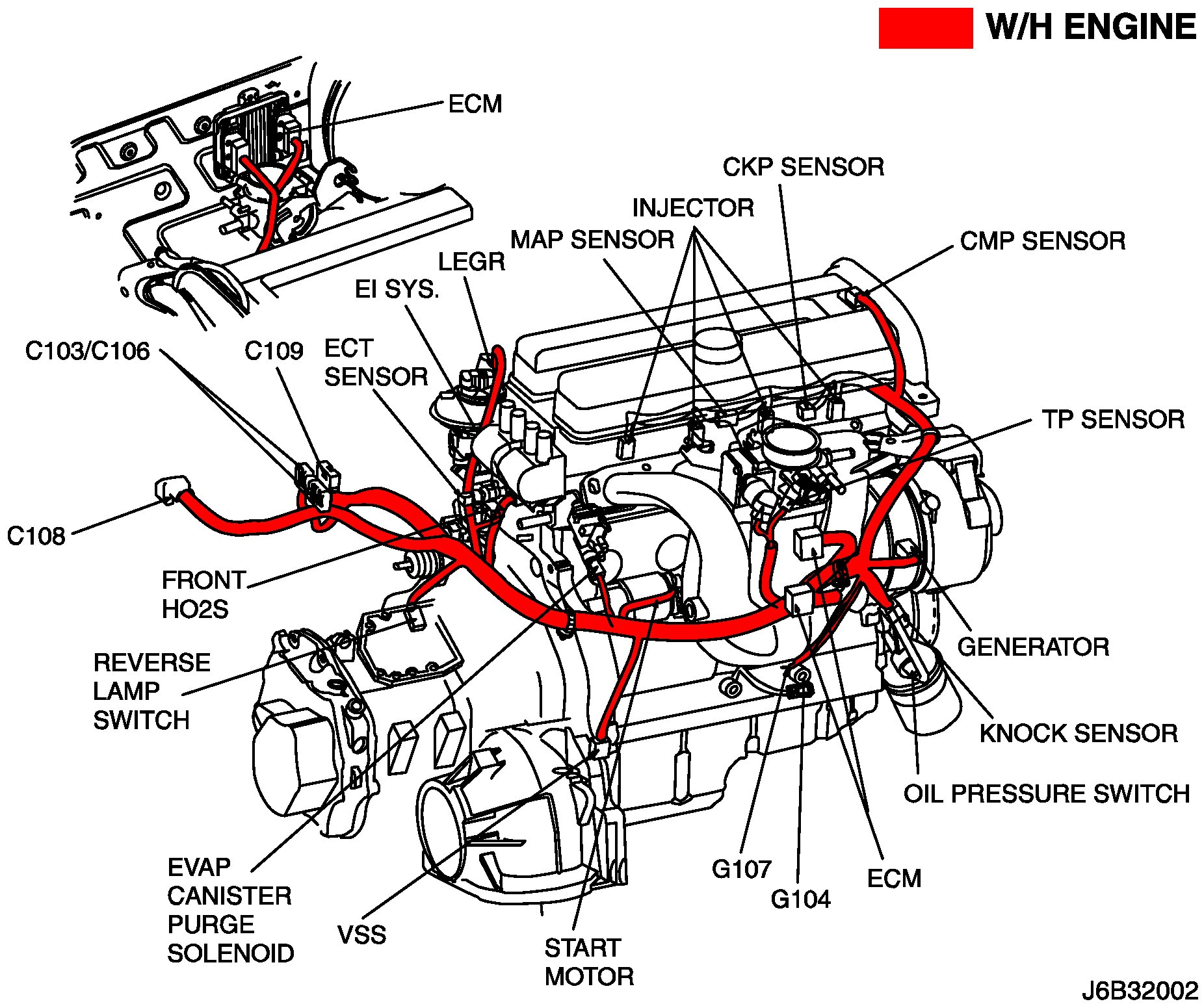

Position of Connectors and Grounds - W/H Engine:

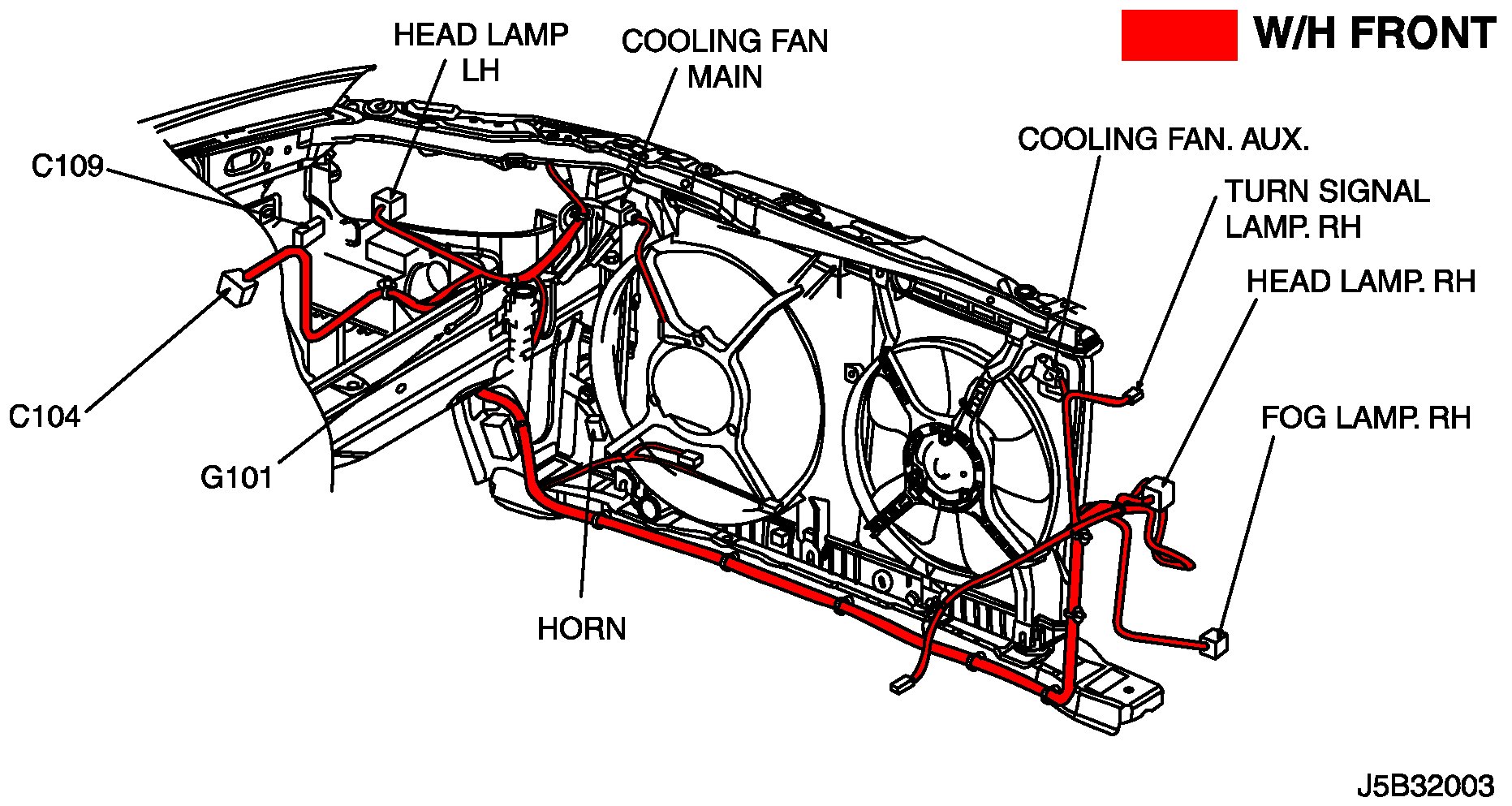

Position of Connectors and Grounds - W/H Front:
Splice Pack
S202:
