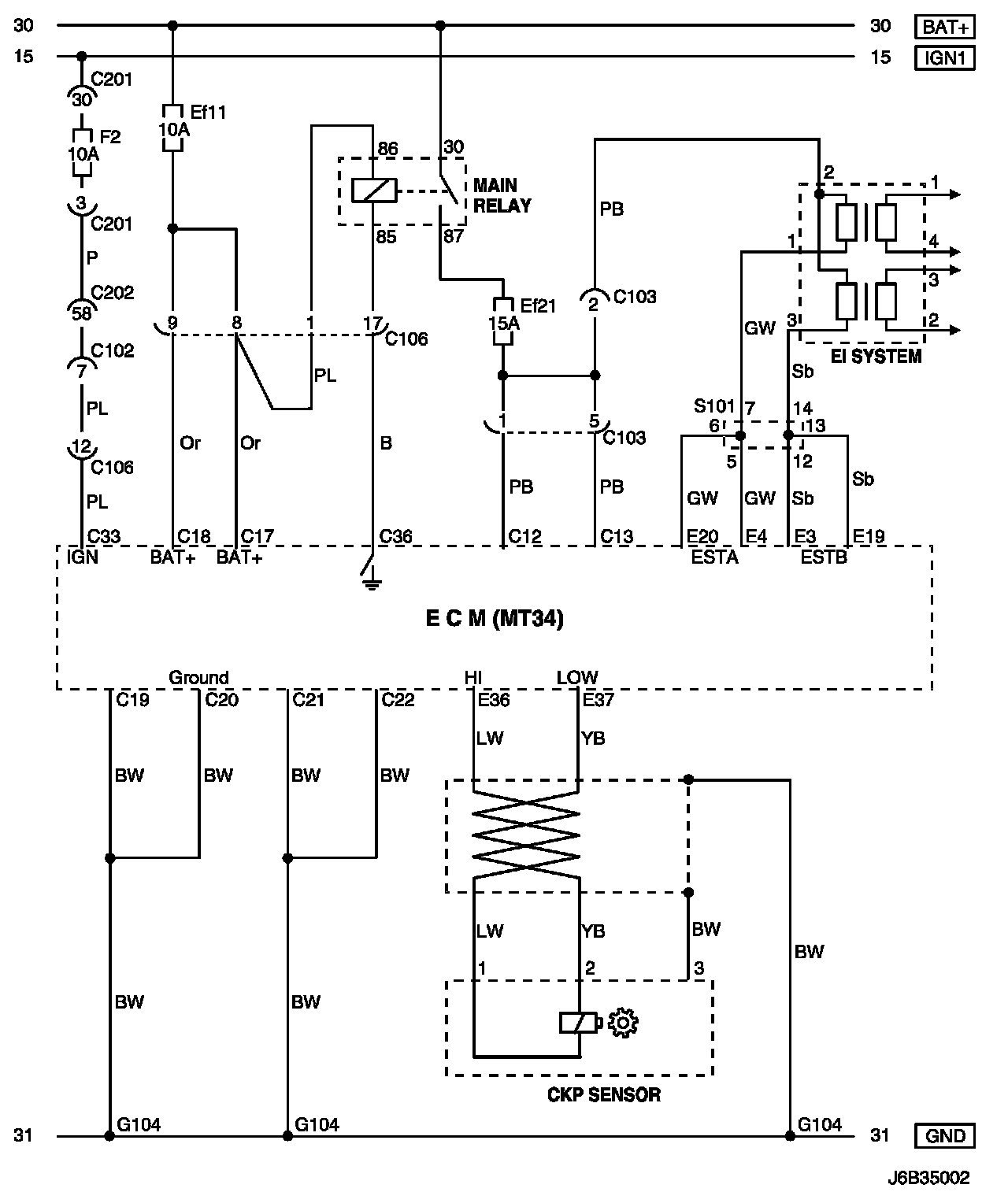

Battery Power Supply, Ground, EI System and CKP Sensor Circuit
Battery Power Supply, Ground, EI System and CKP Sensor CircuitBattery Power Supply, Ground, EI System and CKP Sensor Circuit:
Connector Information
Connector Information:

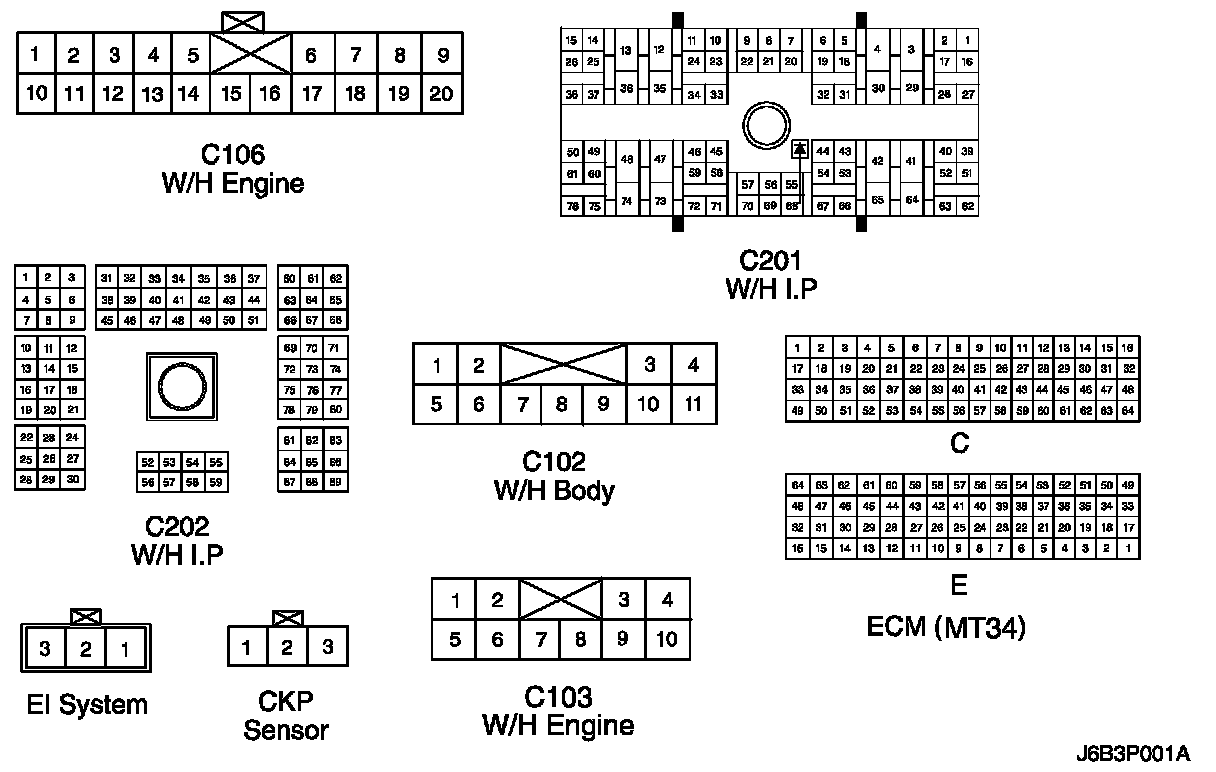

Connector Identification Symbol and Pin Number Position
Connector Identification Symbol and Pin Number Position:

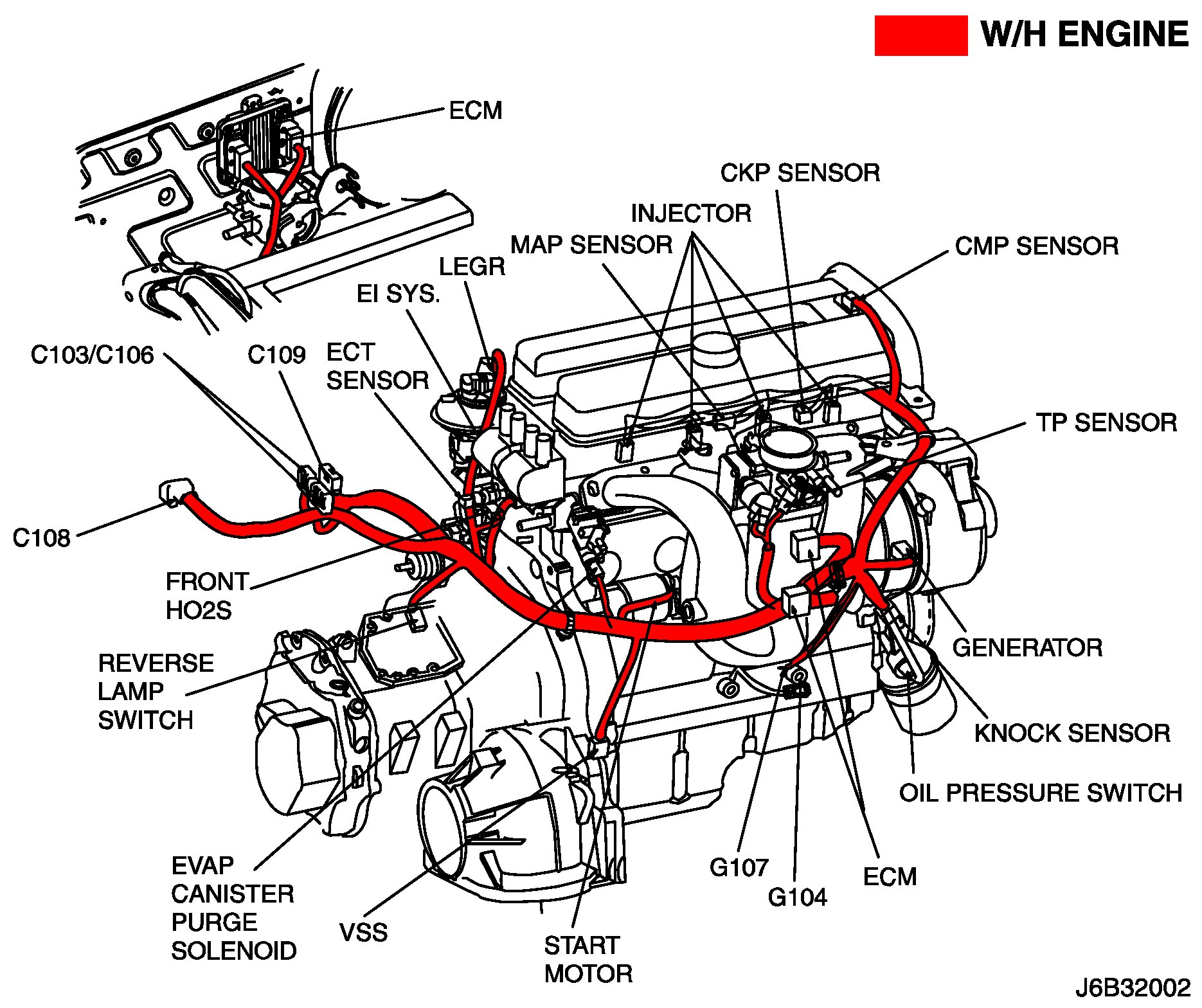

Position of Connectors and Grounds
Position of Connectors and Grounds - W/H Engine:
Splice Pack
S101:
