Steering

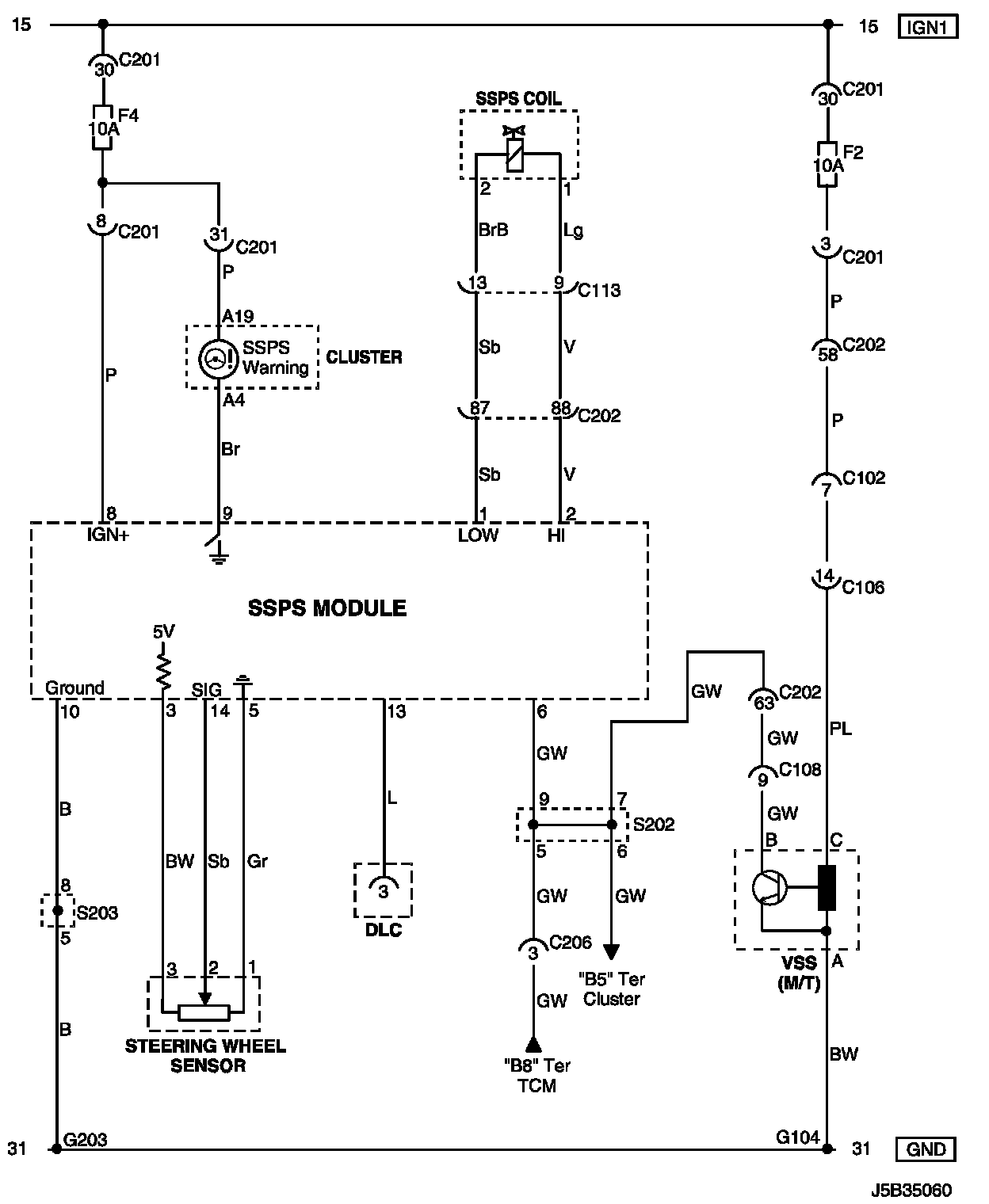

SSPS (Speed Sensitive Power Steering) Circuit Wiring Diagram

SSPS (Speed Sensitive Power Steering) Circuit

SSPS (Speed Sensitive Power Steering) Circuit:





Connector Information

Connector Information:

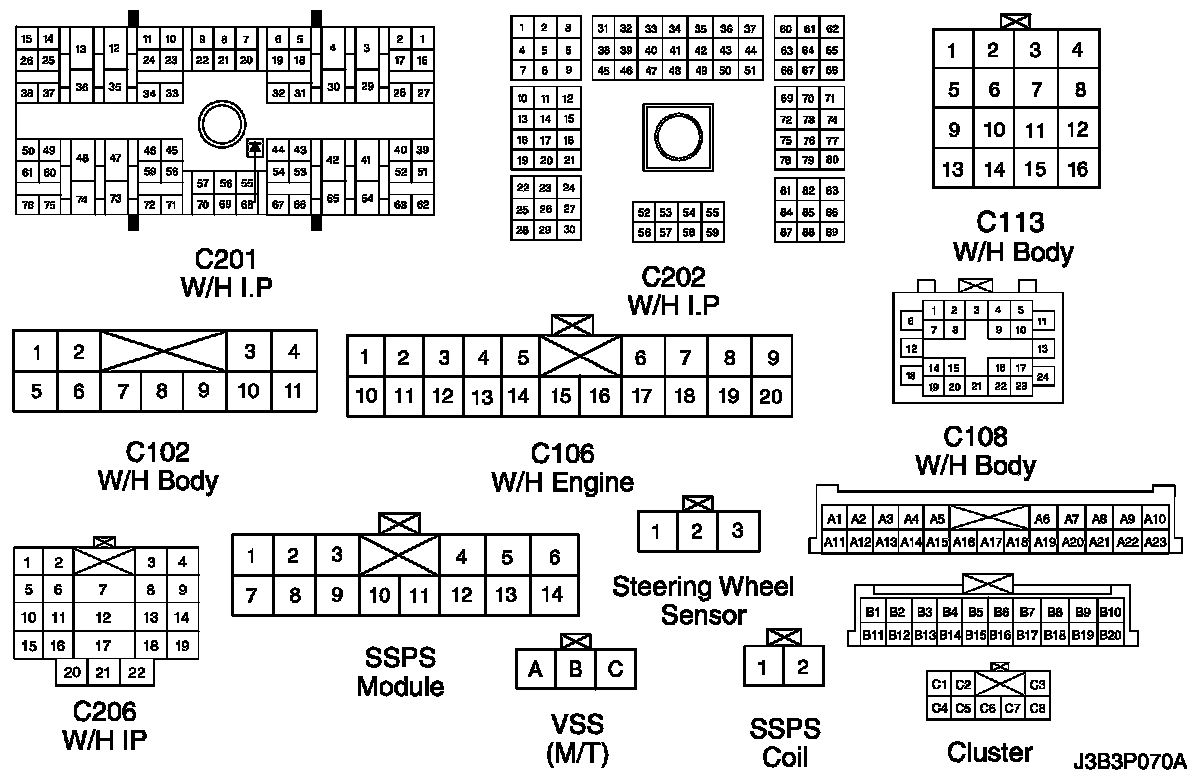

Connector Identification Symbol and Pin Number Position

Connector Identification Symbol and Pin Number Position:

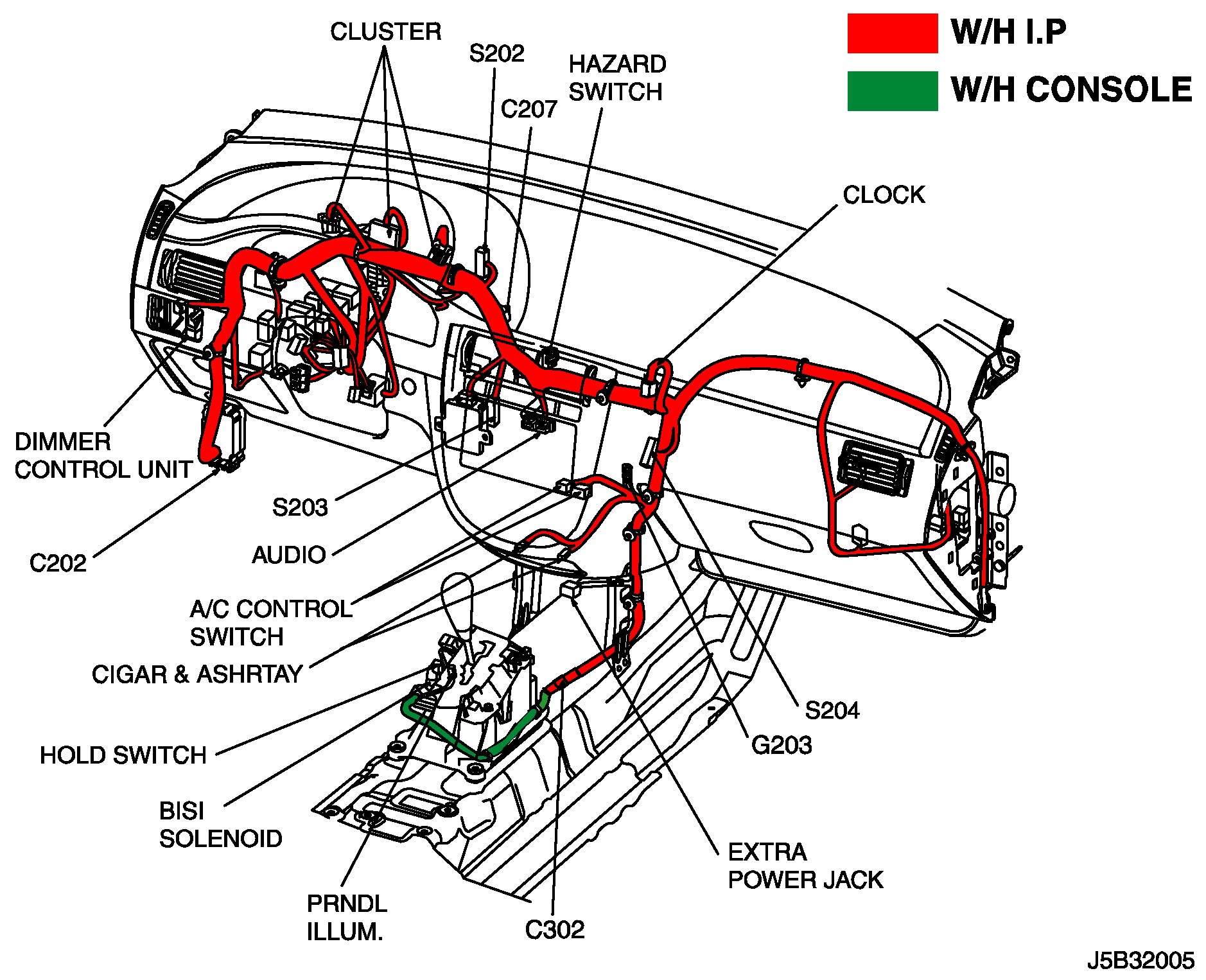

Position of Connectors and Grounds

Position of Connectors and Grounds - W/H Instrument Panel:





Splice Pack

S202:




S203:
