With Sun Roof

W/ Sun Roof

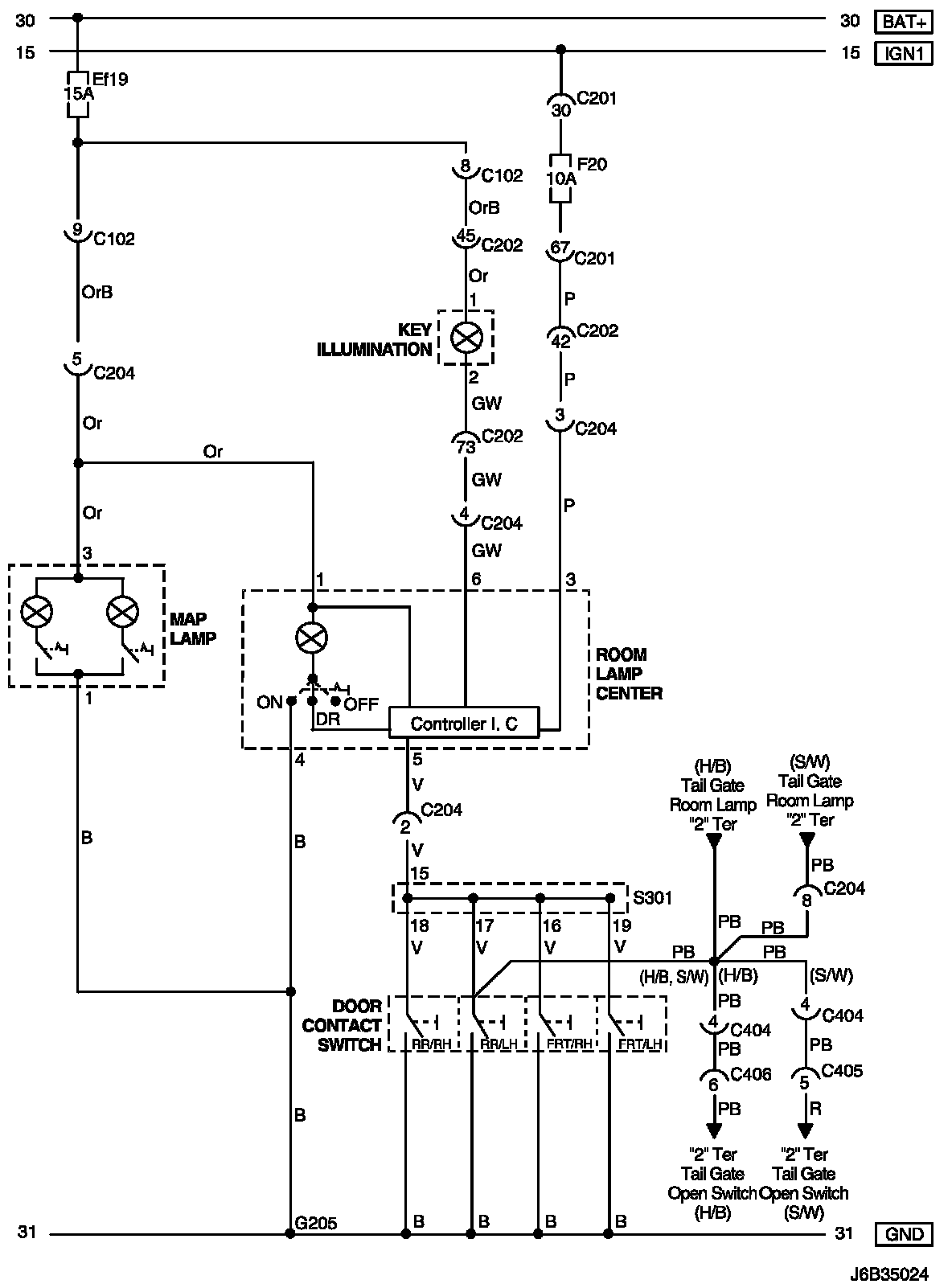

Lamp (Map and Room) and Key Illumination Circuit Wiring Diagram (W/ Sun Roof):

Connector information

Connector Information:

Connector Identification Symbol and Pin Number Position

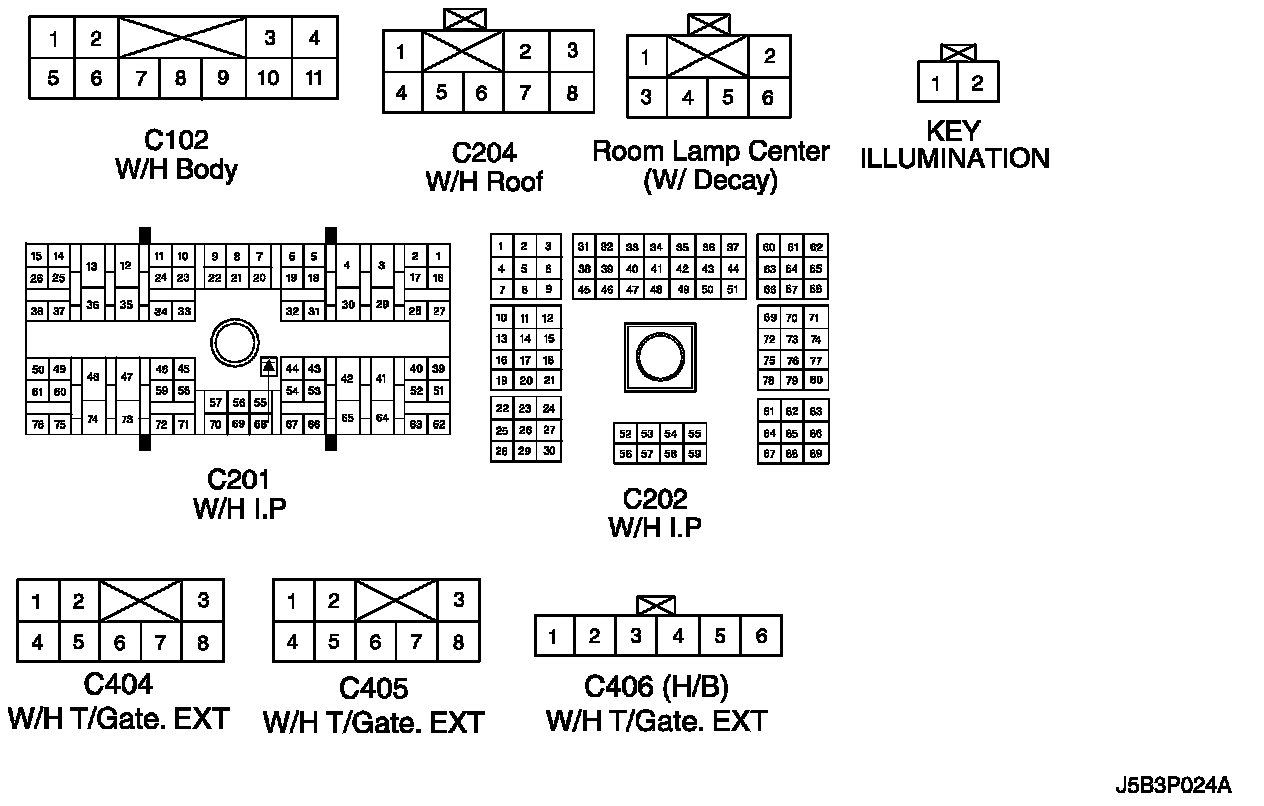

Connector Identification Symbol and Pin Number Position:

Position of Connectors and Grounds

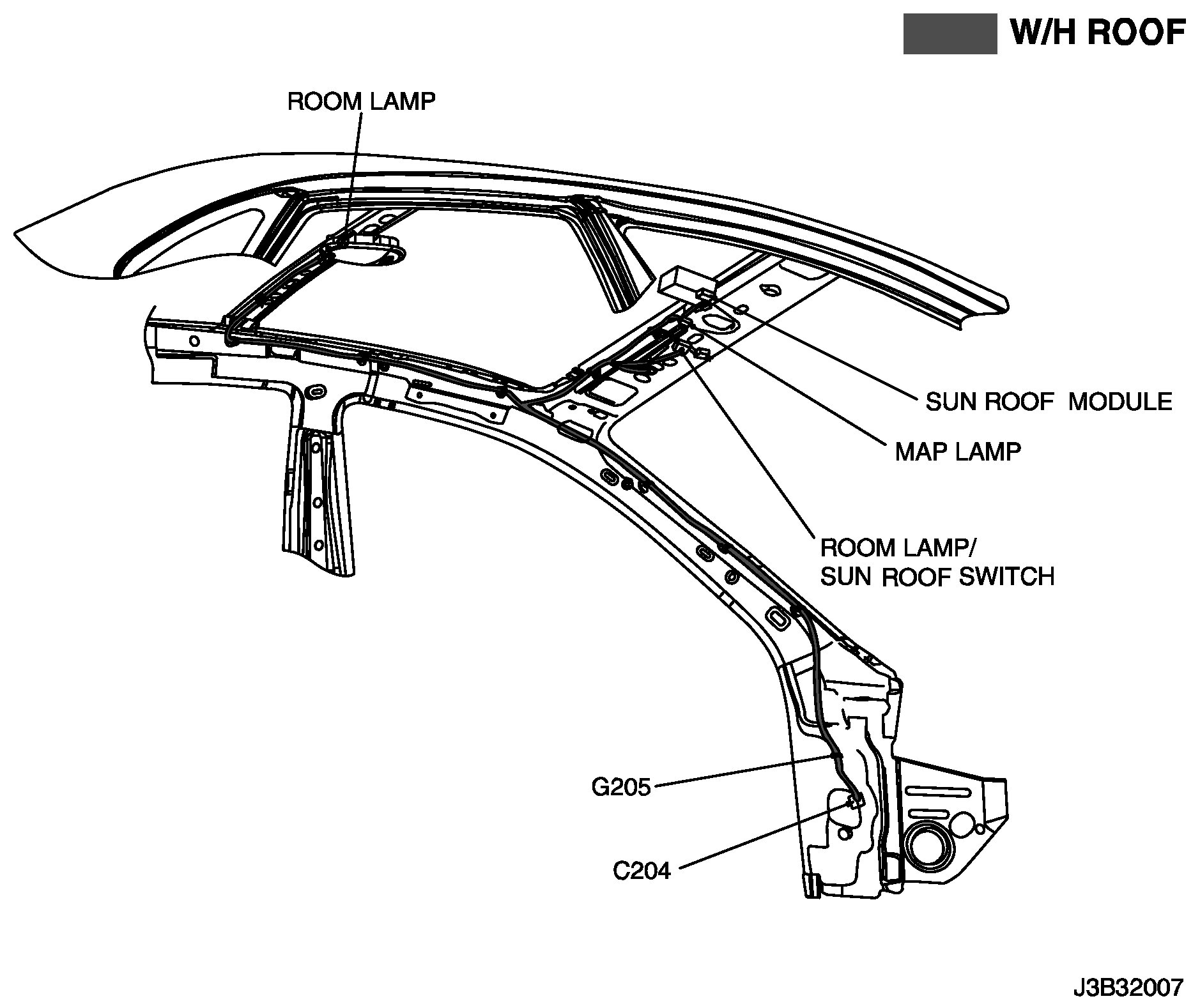

Position of Connectors and Grounds - W/H Roof:

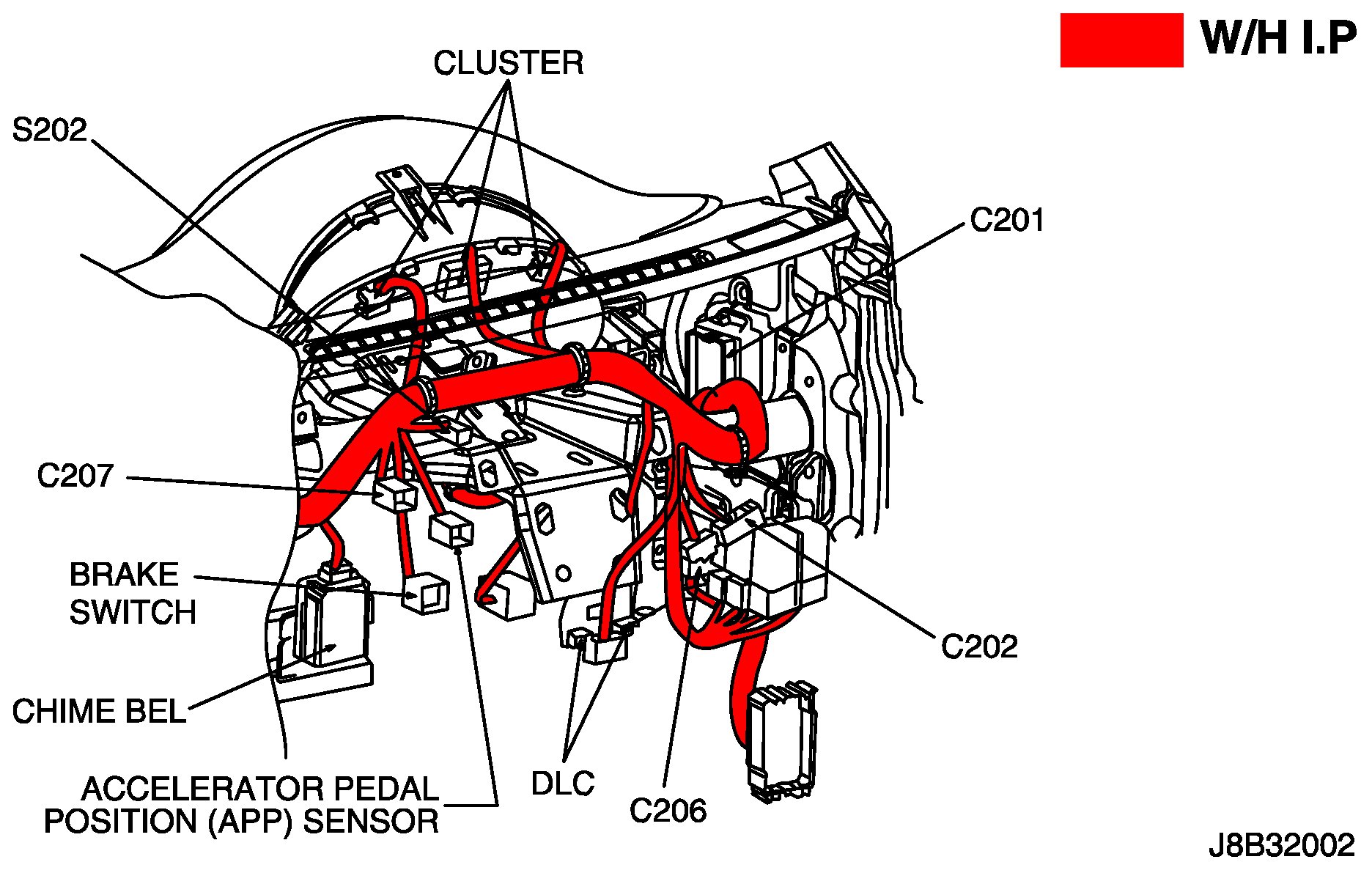

Position of Connectors and Grounds - W/H Instrument Panel:

Splice Pack

S301 (Notchback):

S301 (Hatchback):

S301 (Station Wagon):
