Daytime Running Lamp

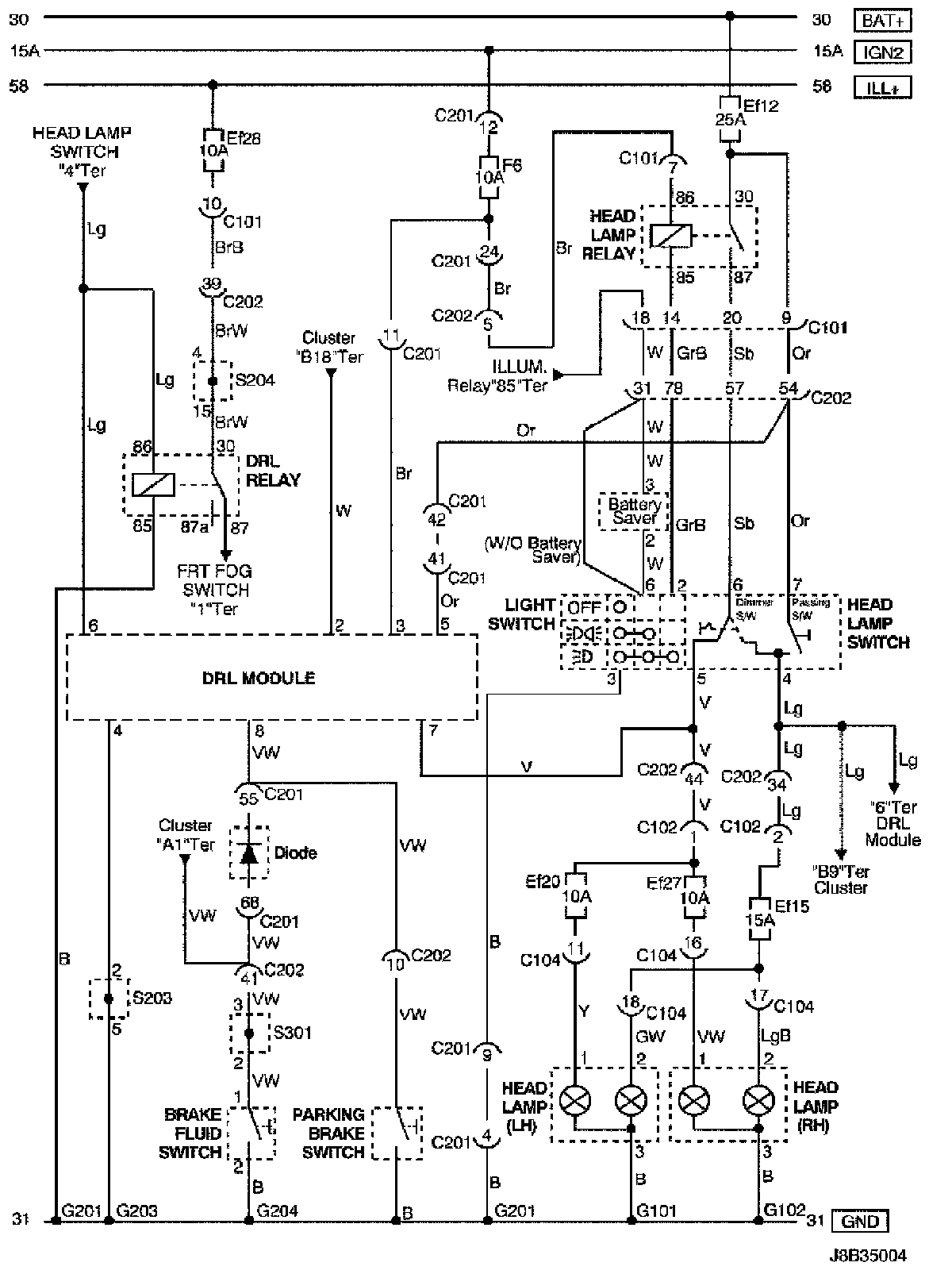

DRL (Day Time Running Light) and Head Lamp Circuit Wiring DiagramDRL (Day Time Running Light) and Head Lamp Circuit
DRL (Day Time Running Light) and Head Lamp Circuit:
Connector Information
Connector Information:

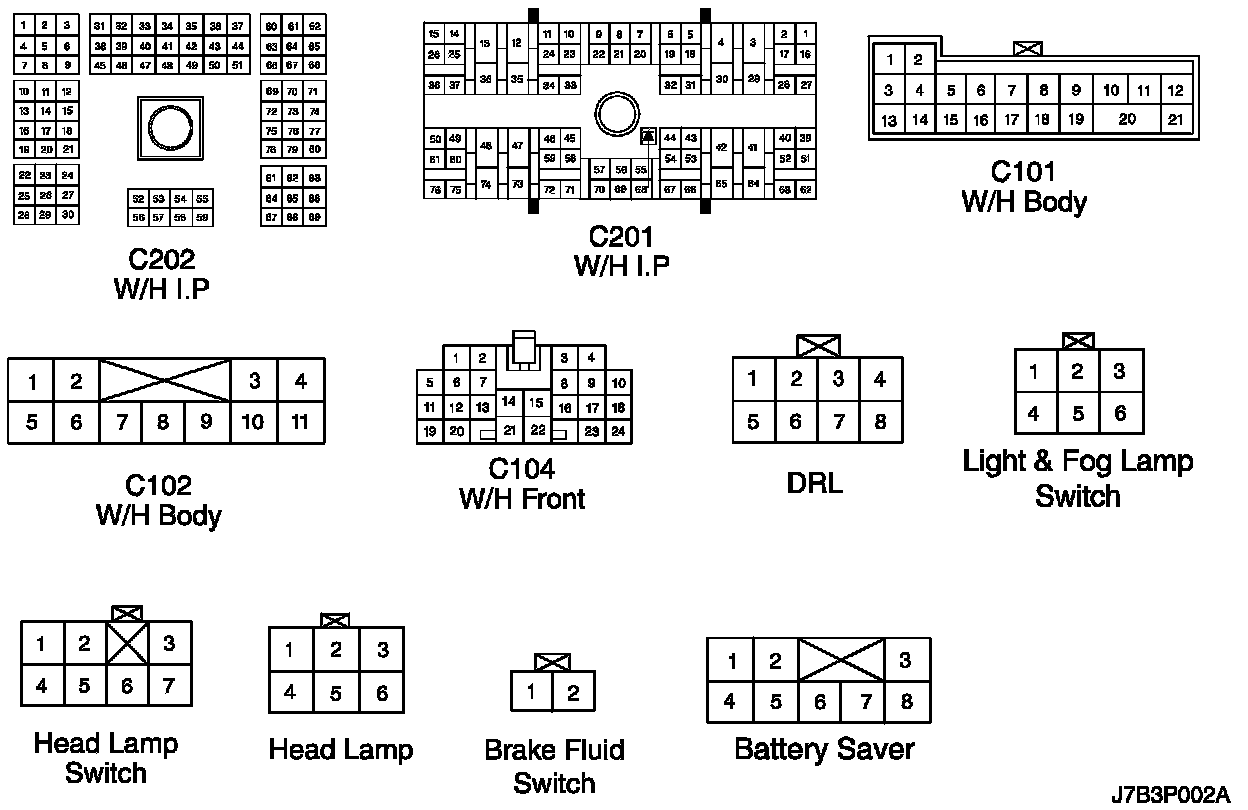

Connector Identification Symbol and Pin Number Position
Connector Identification Symbol and Pin Number Position:

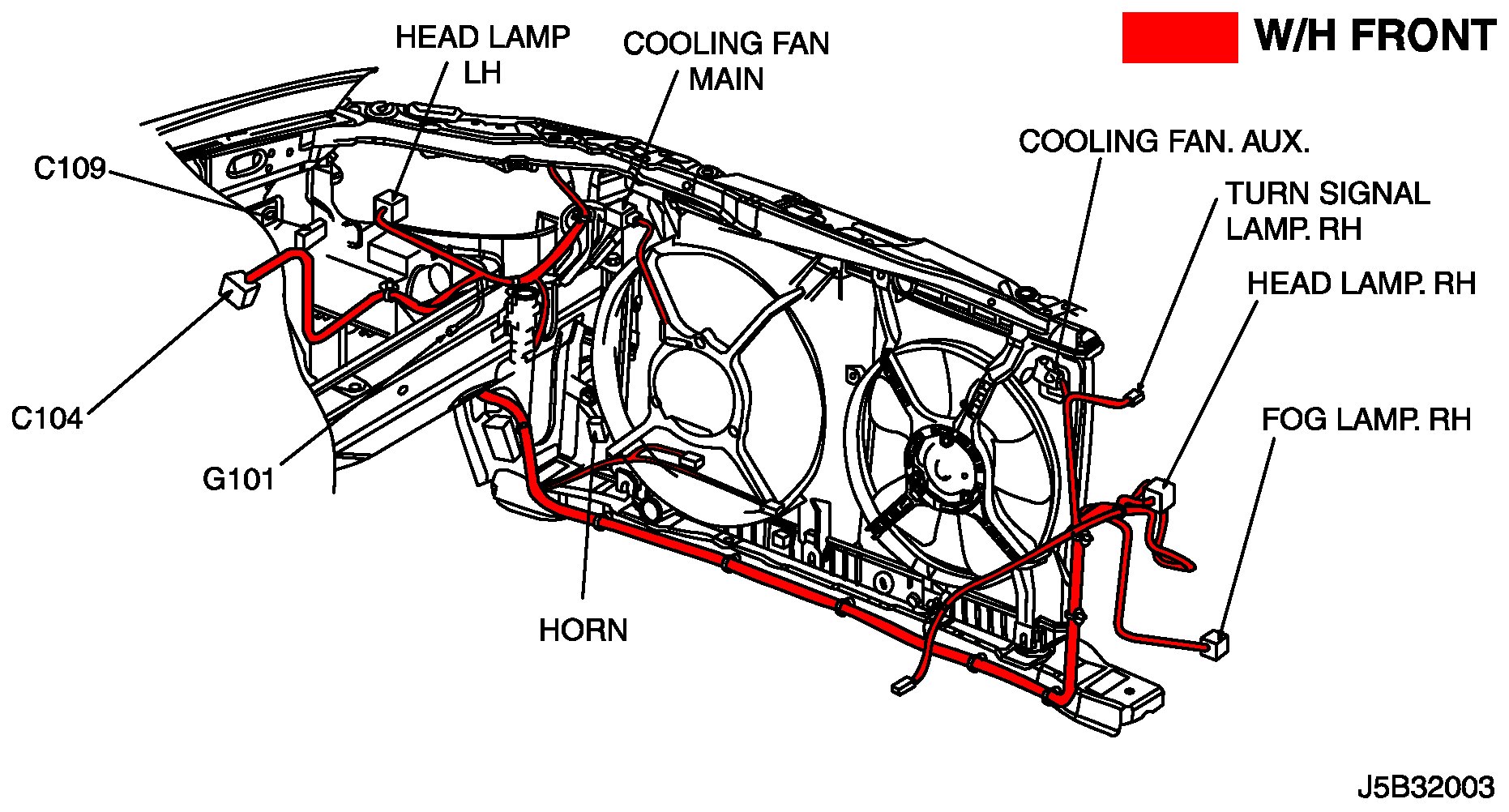

Position of Connectors and Grounds
Position of Connectors and Grounds - W/H Front:
Splice Pack
S203:
S301 (Notchback):
S301 (Hatchback):
S301 (Station Wagon):
