For Station Wagon Model

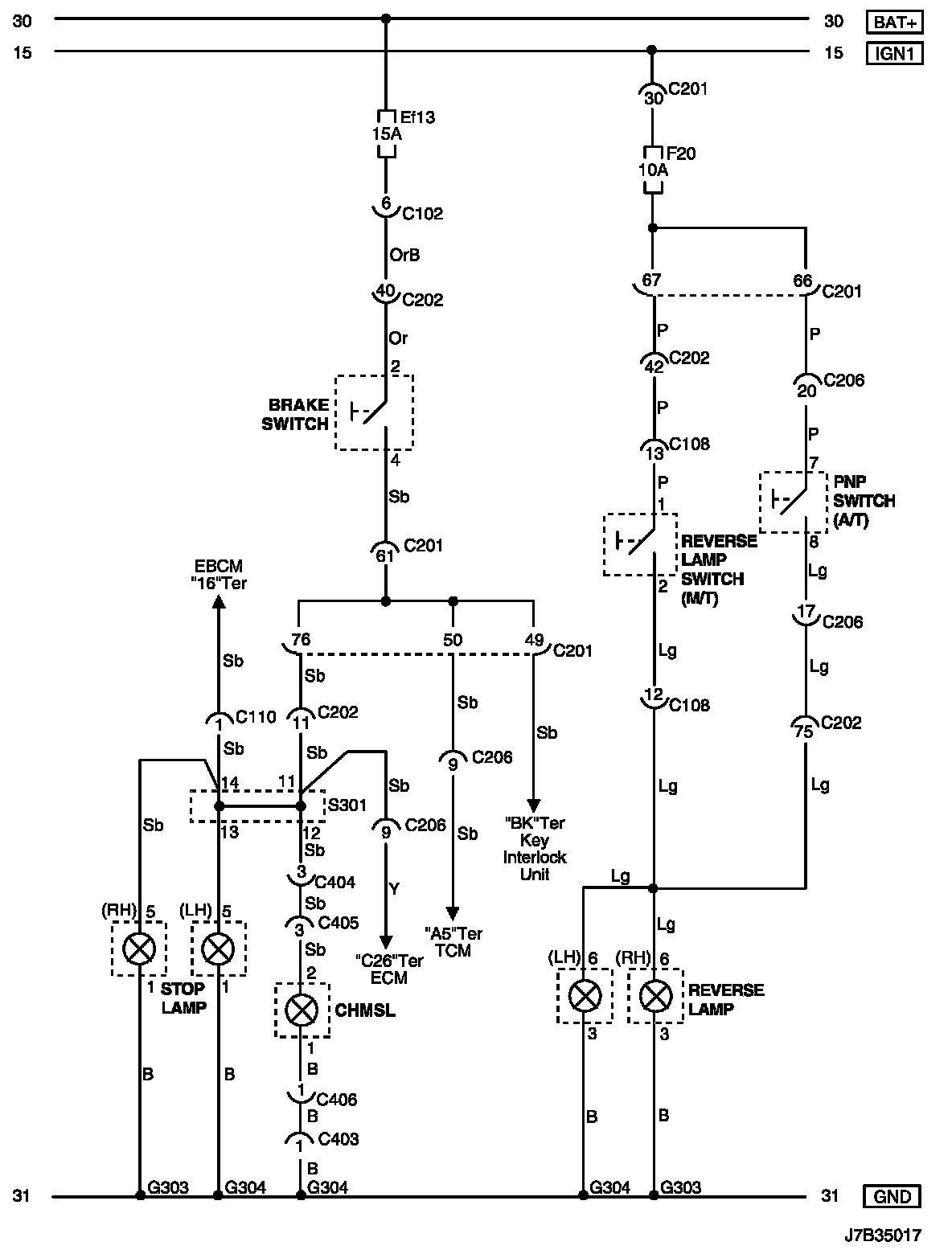

(For STATION WAGON Model)Stop Lamp, Center High Mount Stop Lamp (CHMSL) Reverse Lamp Circuit Wiring Diagram (For STATION WAGON Model):
Connector Information
Connector Information:

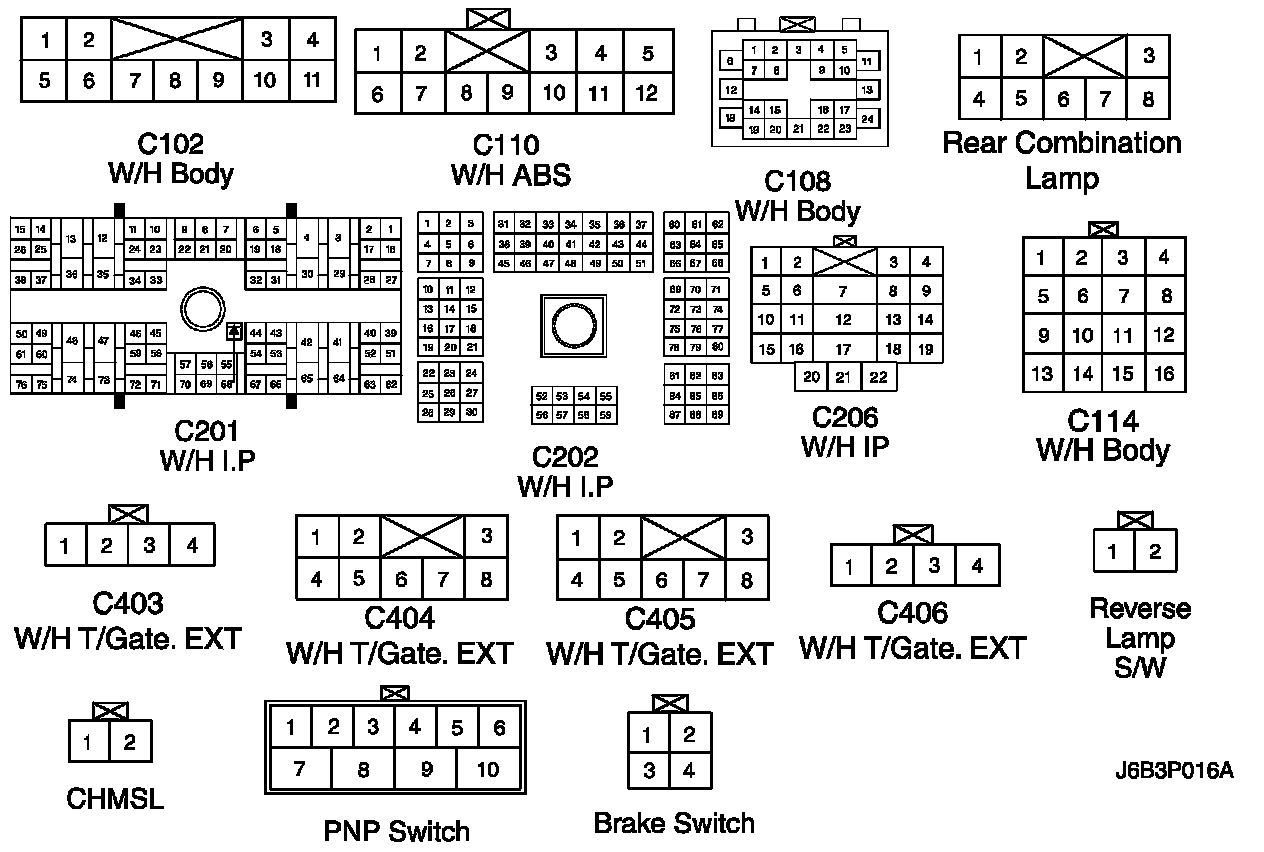

Connector Identification Symbol and Pin Number Position
Connector Identification Symbol and Pin Number Position:

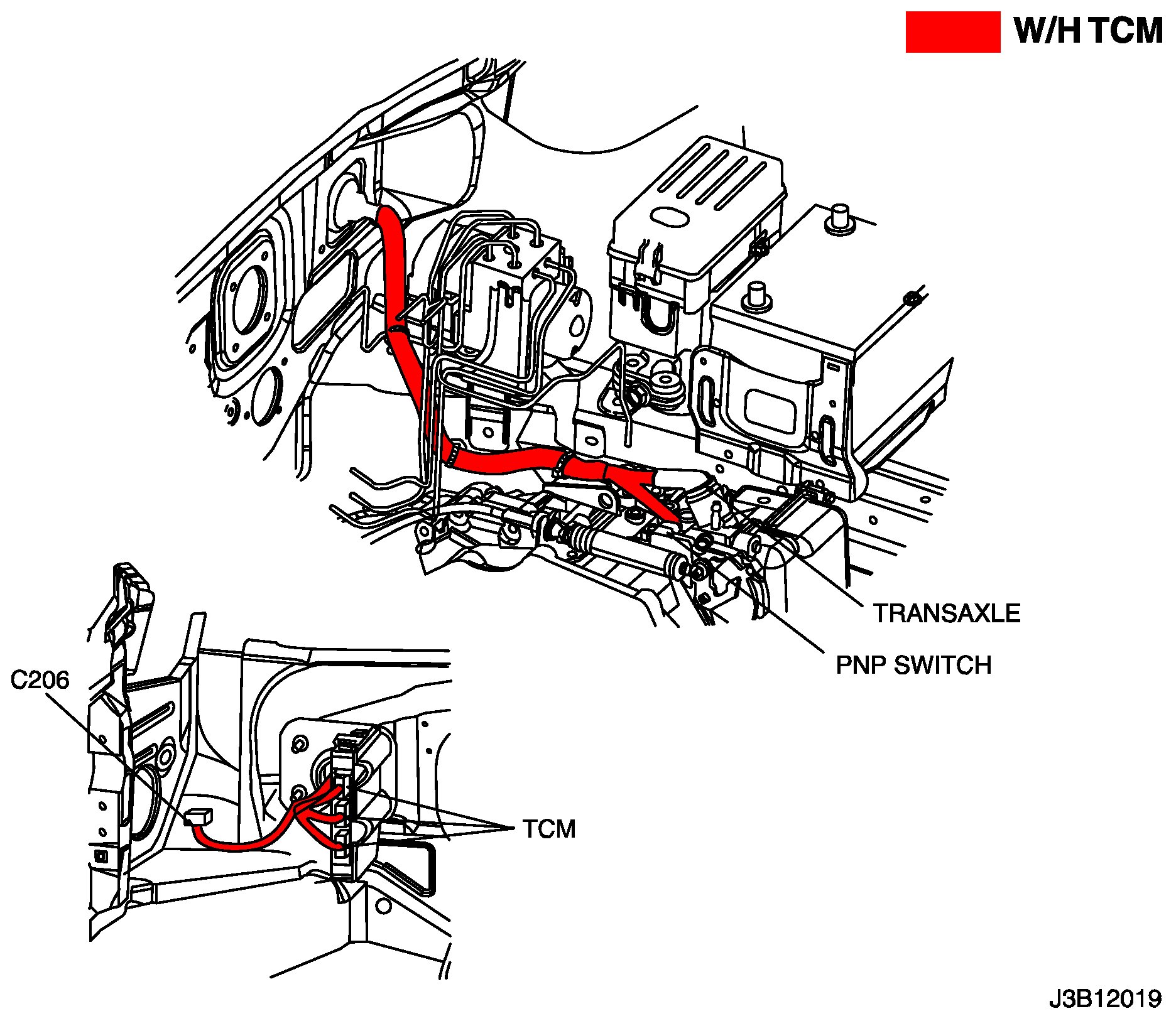

Position of Connectors and Grounds
Position of Connectors and Grounds - W/H TCM:
Splice Pack
S301 (Station Wagon):
