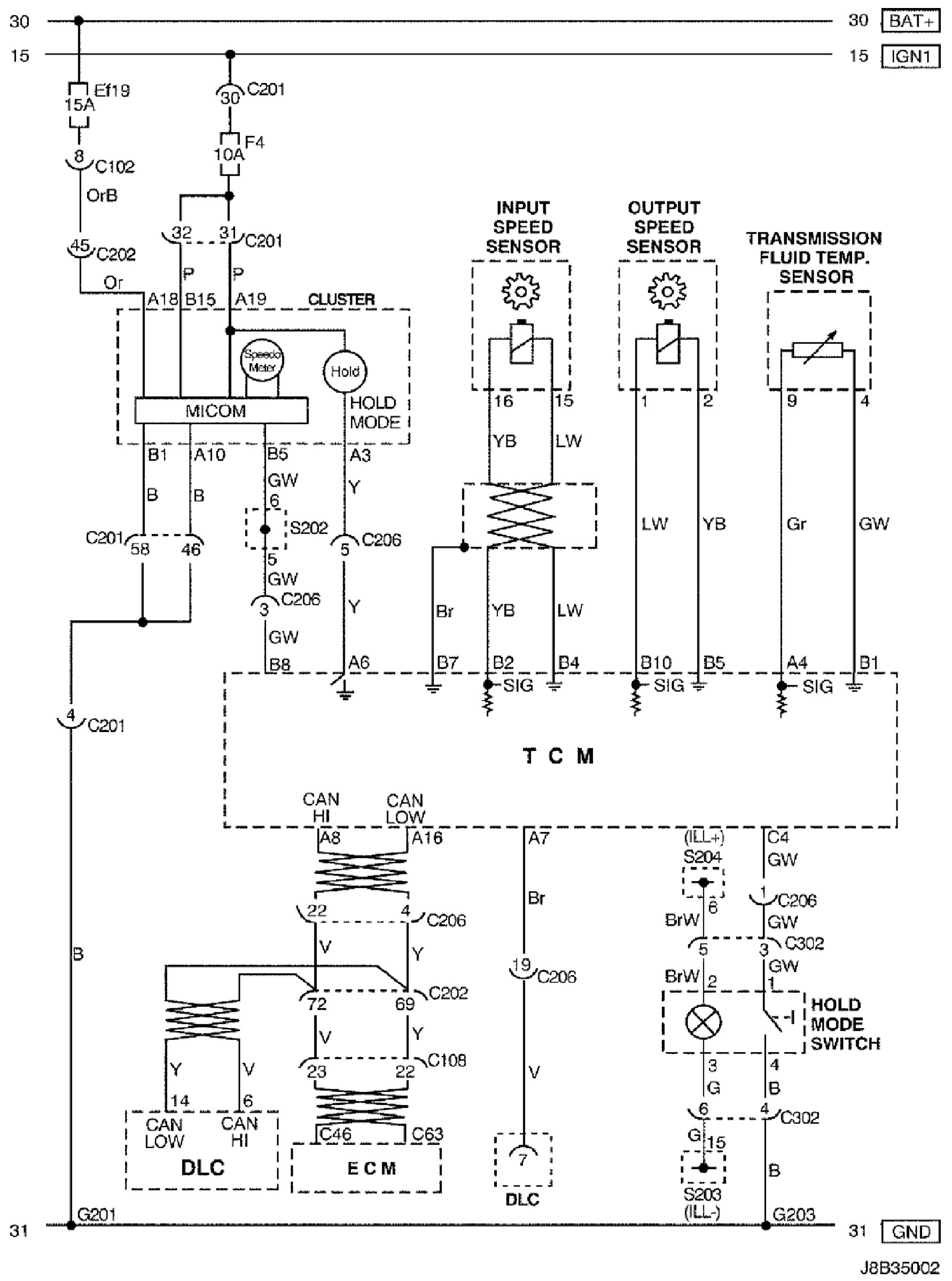

Sensor (Input Speed, Output Speed and Transmission Fluid Temp.), Cluster, DLC, ECM and Hold Mode Switch Circuit
Sensor (Input Speed, Output Speed and Transmission Fluid Temp.), Cluster, DLC, ECM and Hold Mode Switch CircuitSensor (Input Speed, Output Speed and Transmission Fluid Temp.), Cluster, DLC, ECM and Hold Mode Switch Circuit:
Connector Information
Connector Information:

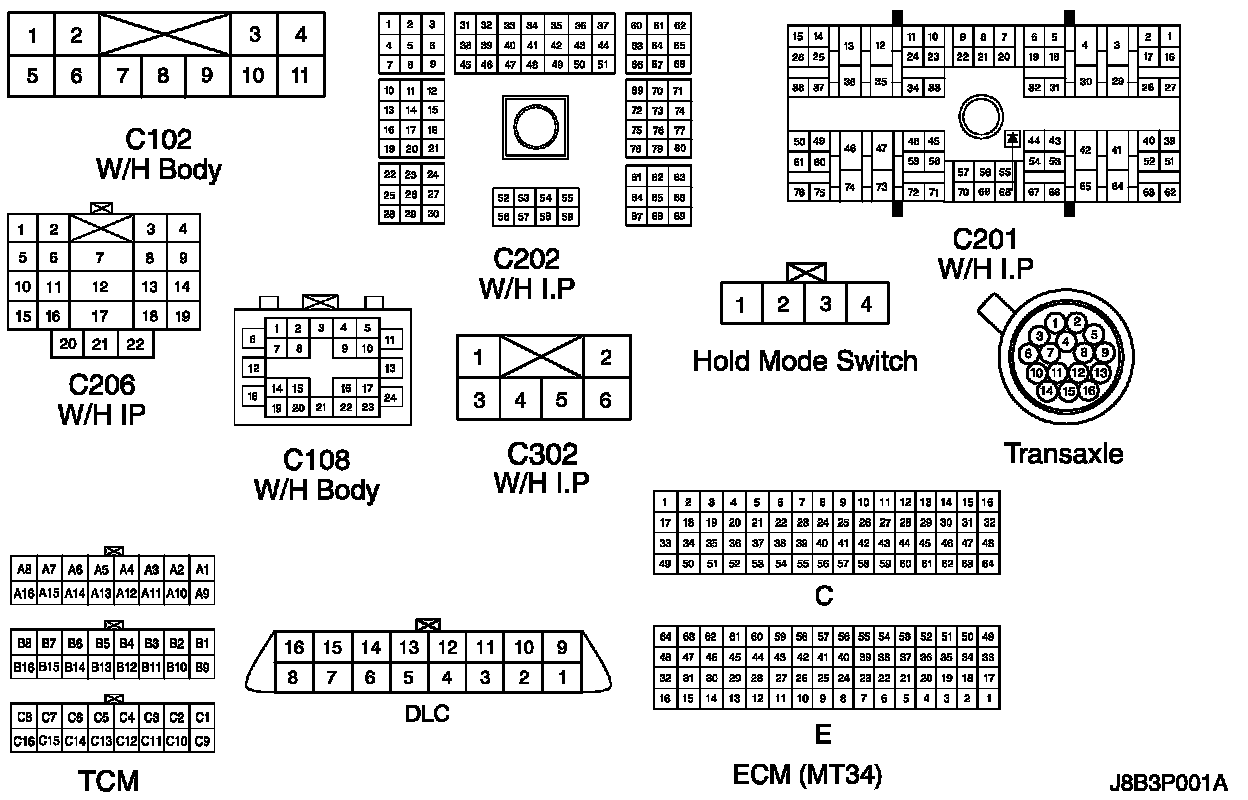

Connector Identification Symbol and Pin Number Position
Connector Identification Symbol and Pin Number Position:

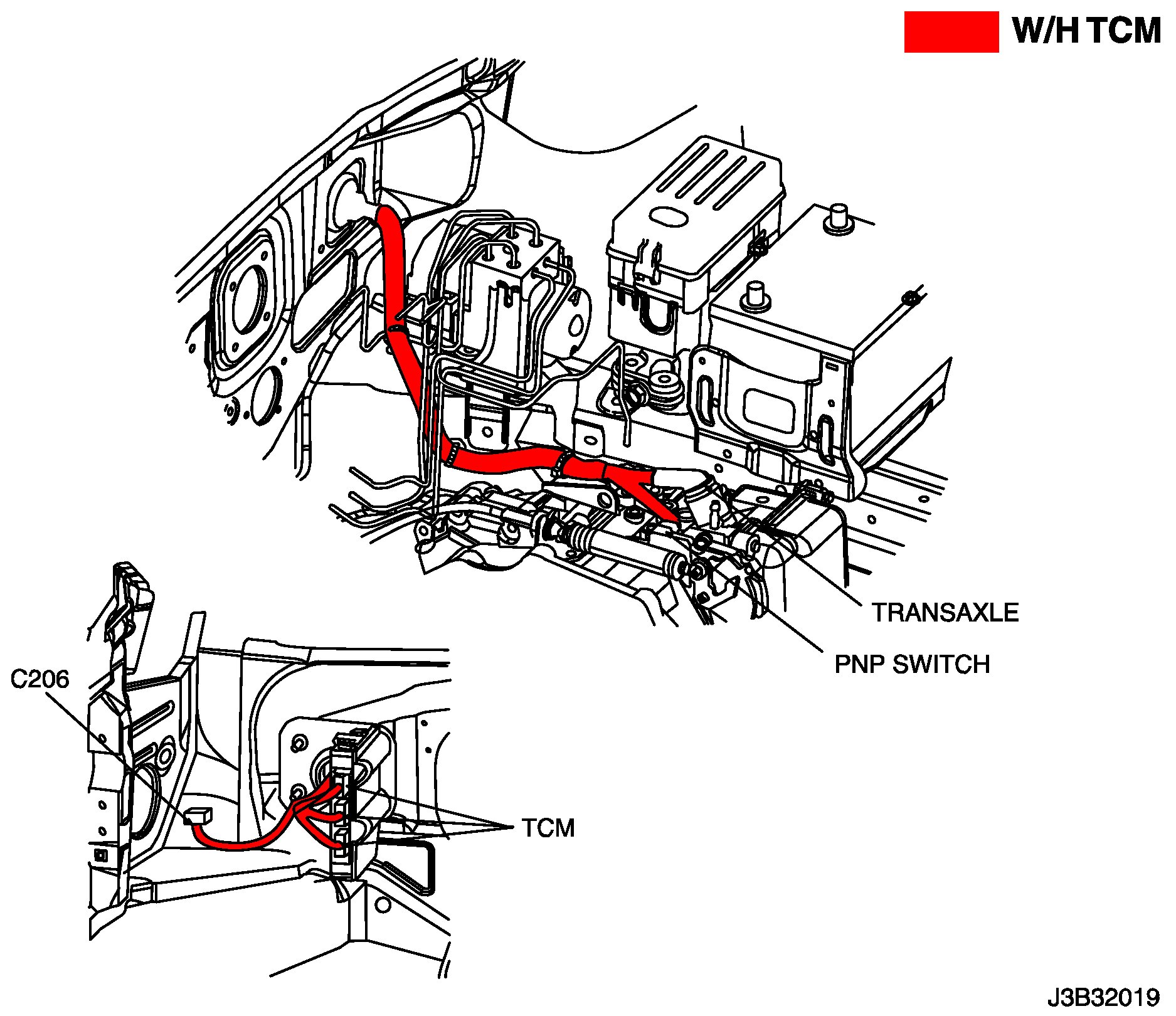

Position of Connectors and Grounds
Position of Connectors and Grounds - W/H TCM:
Splice Pack
S202:
S203:
S204:
