For Station Wagon Model

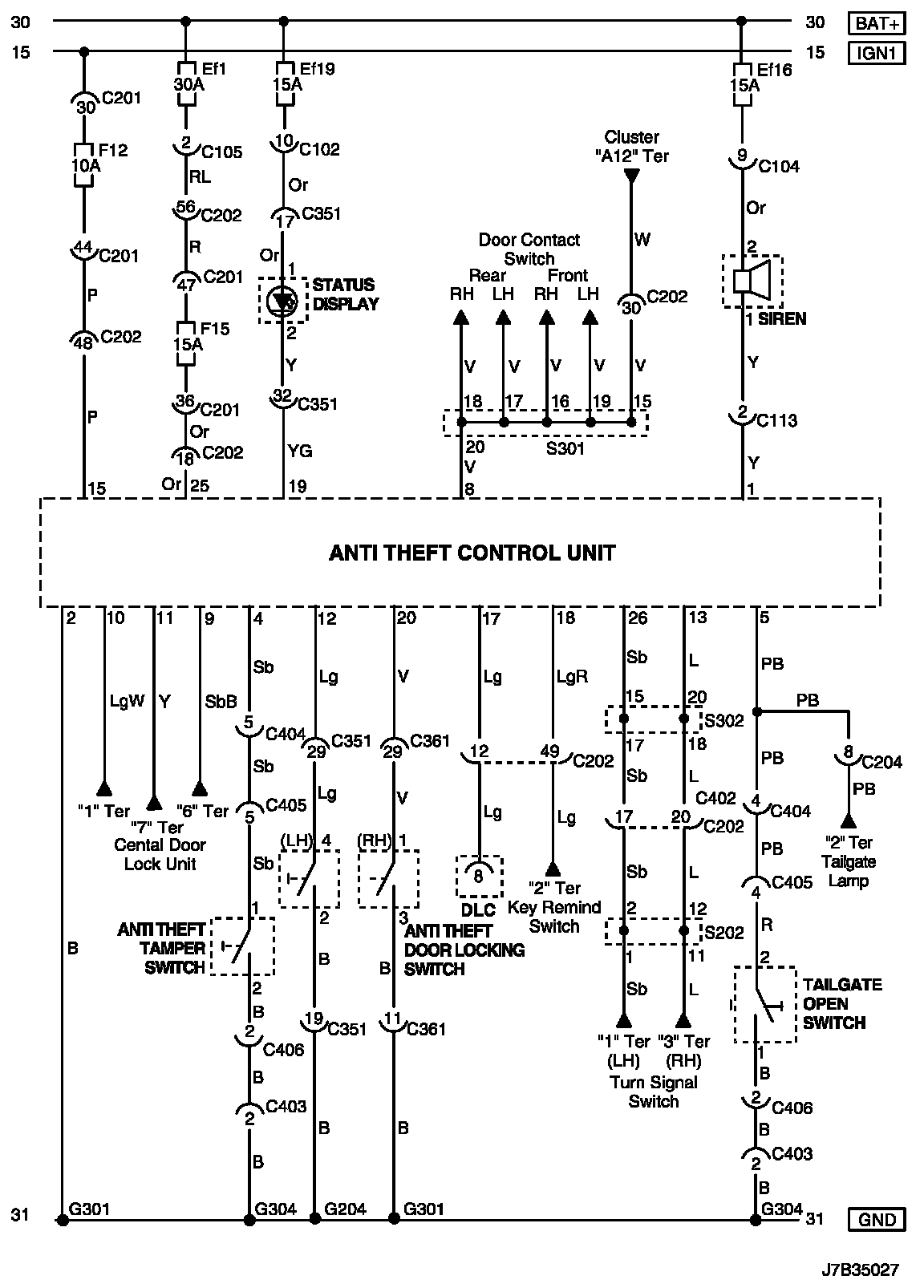

(For STATION WAGON Model)Anti Theft Control System Circuit Wiring Diagram (For STATION WAGON Model):

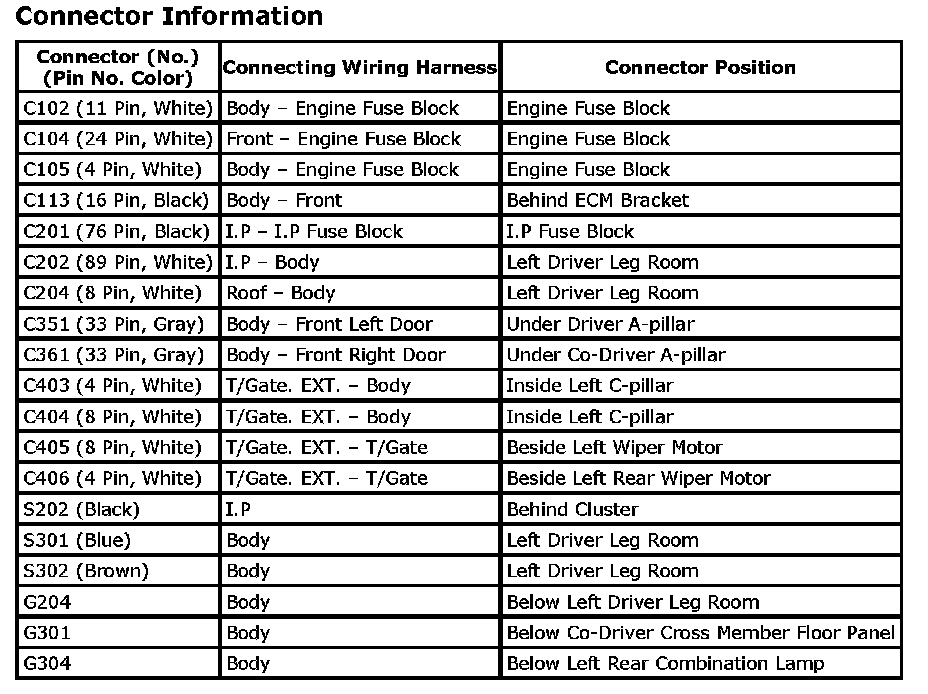

Connector Information
Connector Information:

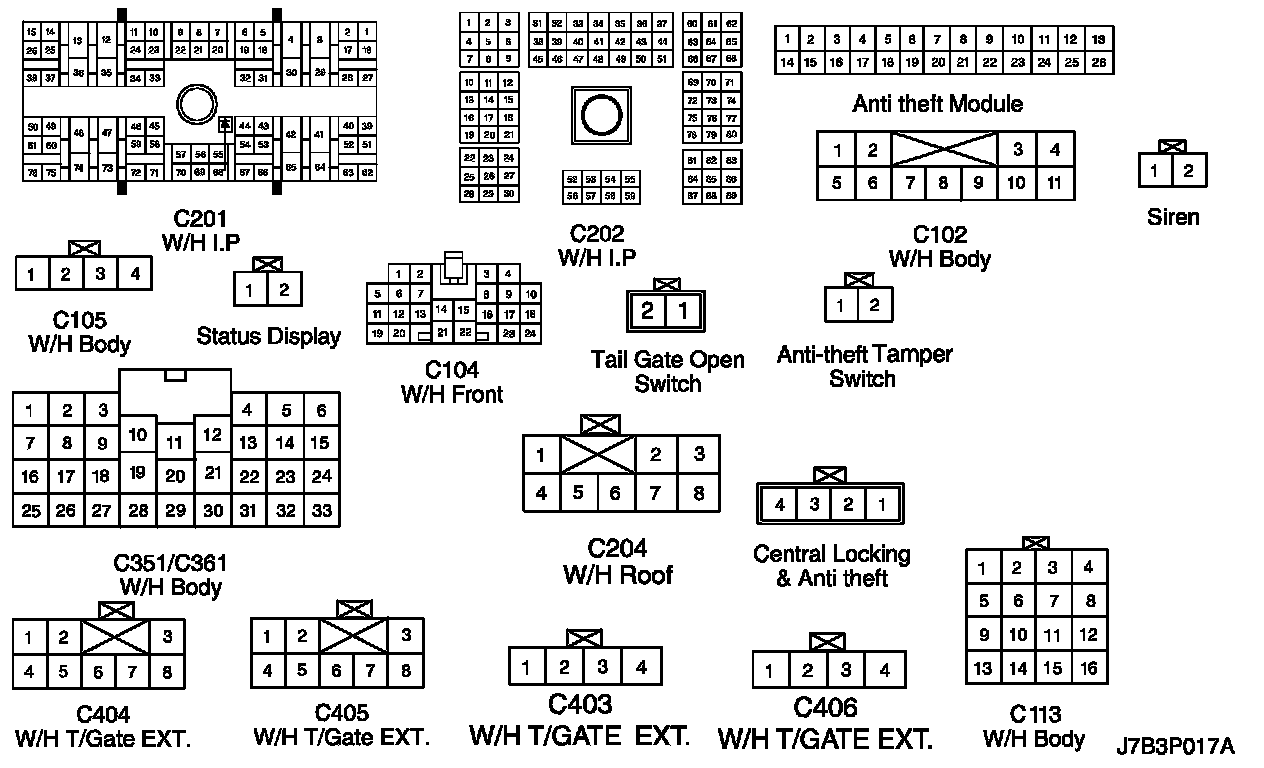

Connector Identification Symbol and Pin Number Position
Connector Identification Symbol and Pin Number Position:
Position of Connectors and Grounds
Position of Connectors and Grounds - W/H Body:
Splice Pack
S202:
S301 (Station Wagon):
S302 (Station Wagon):
