Transaxle Assembly Removal and Installation: Installation

Support the transaxle with a transaxle support jack.
Install the transaxle by inserting the transaxle input shaft into the clutch disc and sliding the transaxle sideways into the engine block.

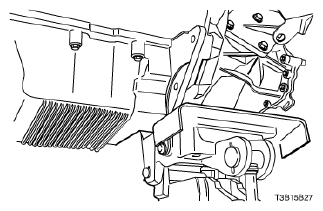

Fig 1: Supporting Transaxle With Transaxle Support Jack
Courtesy of SUZUKI OF AMERICA CORP.
Install the seven transaxle lower retaining bolts.
Tighten:
- Tighten the transaxle lower retaining bolts (a) to 73 N.m (54 lb-ft).
- Tighten the transaxle lower retaining bolt (b) to 31 N.m (23 lb-ft).
- Tighten the transaxle lower retaining bolts (c) to 21 N.m (15 lb-ft).

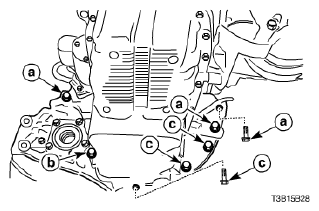

  Fig 2: Identifying Transaxle Lower Retaining Bolts
  Courtesy of SUZUKI OF AMERICA CORP.
Install the three transaxle upper retaining bolts.
Tighten:

Tighten the transaxle upper retaining bolts to 73 N.m (54 lb-ft).

Fig 3: Identifying Transaxle Upper Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the cage retaining bolt and cage.
Install the three transaxle upper mounting bracket bolts and bracket.
Tighten:

Tighten the transaxle upper mounting bracket bolts to 48 N.m (35 lb-ft).

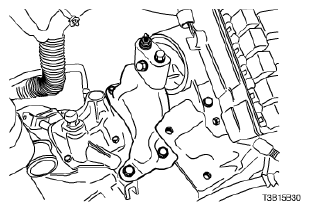

Fig 4: Identifying Transaxle Upper Mounting Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the two rear damping block retaining bolts.
Tighten:

Tighten the rear damping block retaining bolts to 68 N.m (50 lb-ft).
Install the rear damping block from the front cross member.

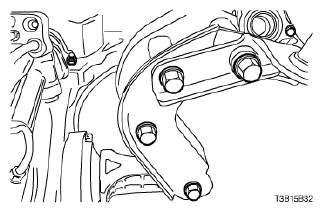

Fig 5: Identifying Rear Damping Block Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the three rear mounting bracket bolts and the bracket.
Tighten:

Tighten the rear mounting bracket bolts to 90 N.m (66 lb-ft).
Install the damping block connection nut and bolt.
Tighten:

Tighten the damping block connection nut and bolt to 68 N.m (50 lb-ft).

Fig 6: Identifying Damping Block Connection Nut And Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Connect the clutch release cylinder pipe.
Perform the air bleeding. Refer to AIR BLEEDING .

Fig 7: Connecting Clutch Release Cylinder Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Connect the speedometer speed sensor electrical connector.
Connect the backup lamp switch electrical connector.

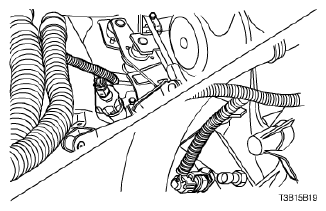

Fig 8: Identifying Backup Lamp Switch And Speedometer Speed Sensor Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove the engine assembly support fixture DW110-060.
Install the drive axle shaft. Refer to DRIVE AXLE ASSEMBLY REMOVAL AND INSTALLATION .
Install the shift linkage assembly. Refer to Shift Linkage Assembly Removal and Installation .
Install the battery and battery tray. Refer to BATTERY AND BATTERY TRAY REMOVAL AND INSTALLATION .
Inspect the fluid level. Refer to Checking Fluid Level .

Fig 9: Identifying Fixing Shaft Pin
Courtesy of SUZUKI OF AMERICA CORP.
