Race and Bearing Specifications

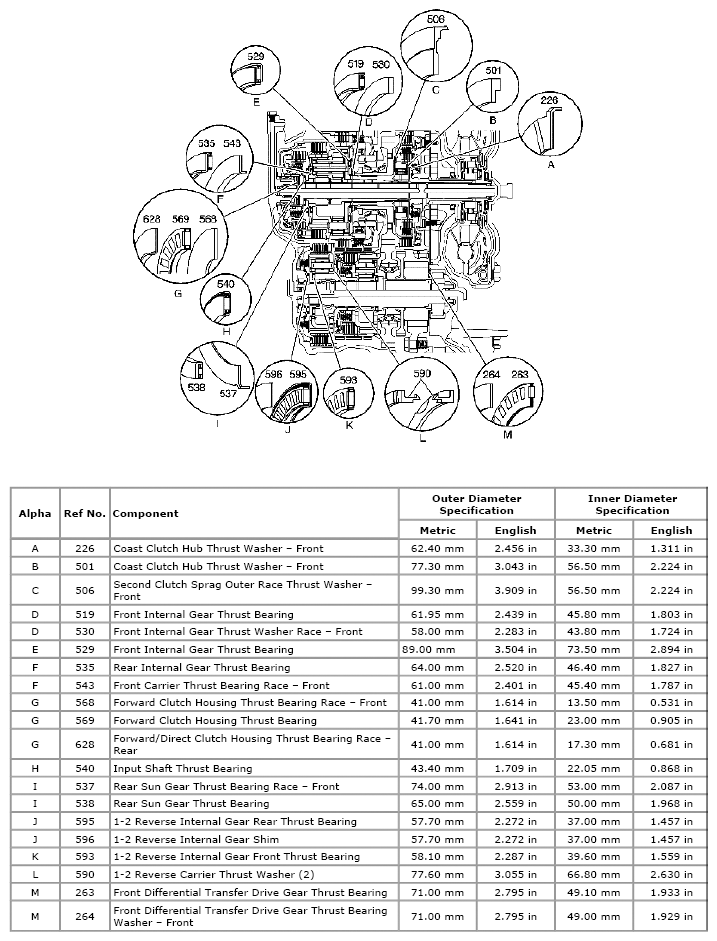

Fig 1: Identifying Races & Bearings Specifications
G04846400Courtesy of SUZUKI OF AMERICA CORP.
