Windshield Wiper Motor Connector End View

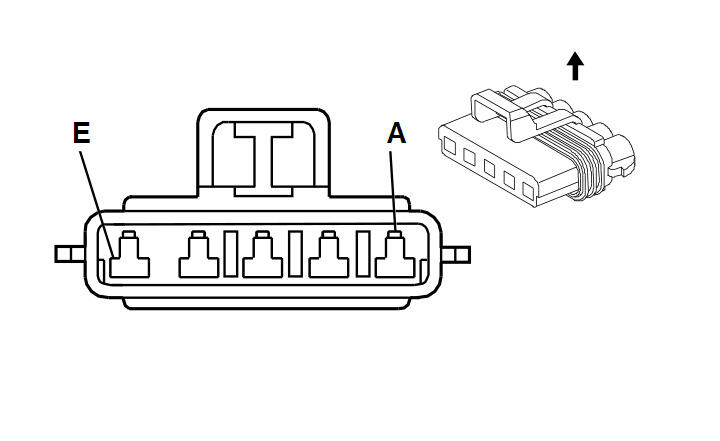

Fig 1: Windshield Wiper Motor Connector End View
GM243503Courtesy of GENERAL MOTORS CORP.
Windshield Wiper Motor Connector Parts Information

Connector Part Information
  • OEM: 12084891
  • Service: 15305874
  • Description: 5-Way F Metri-Pack 280 Series, Sealed (M-GY)
Terminal Part Information
  • Terminal/Tray: 12077411/2
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
Windshield Wiper Motor Connector Terminal Identification

Pin Wire Color Circuit No. Function
A - - Not Used
B YE 196 Windshield Wiper Motor Park Switch Signal
C BK 1250 Ground
D PU 92 Windshield Wiper Motor High Speed
E D-GN 95 Windshield Wiper Motor Low Speed
