Inflatable Restraint Front End Sensor Connector End View - Left (-ASF)

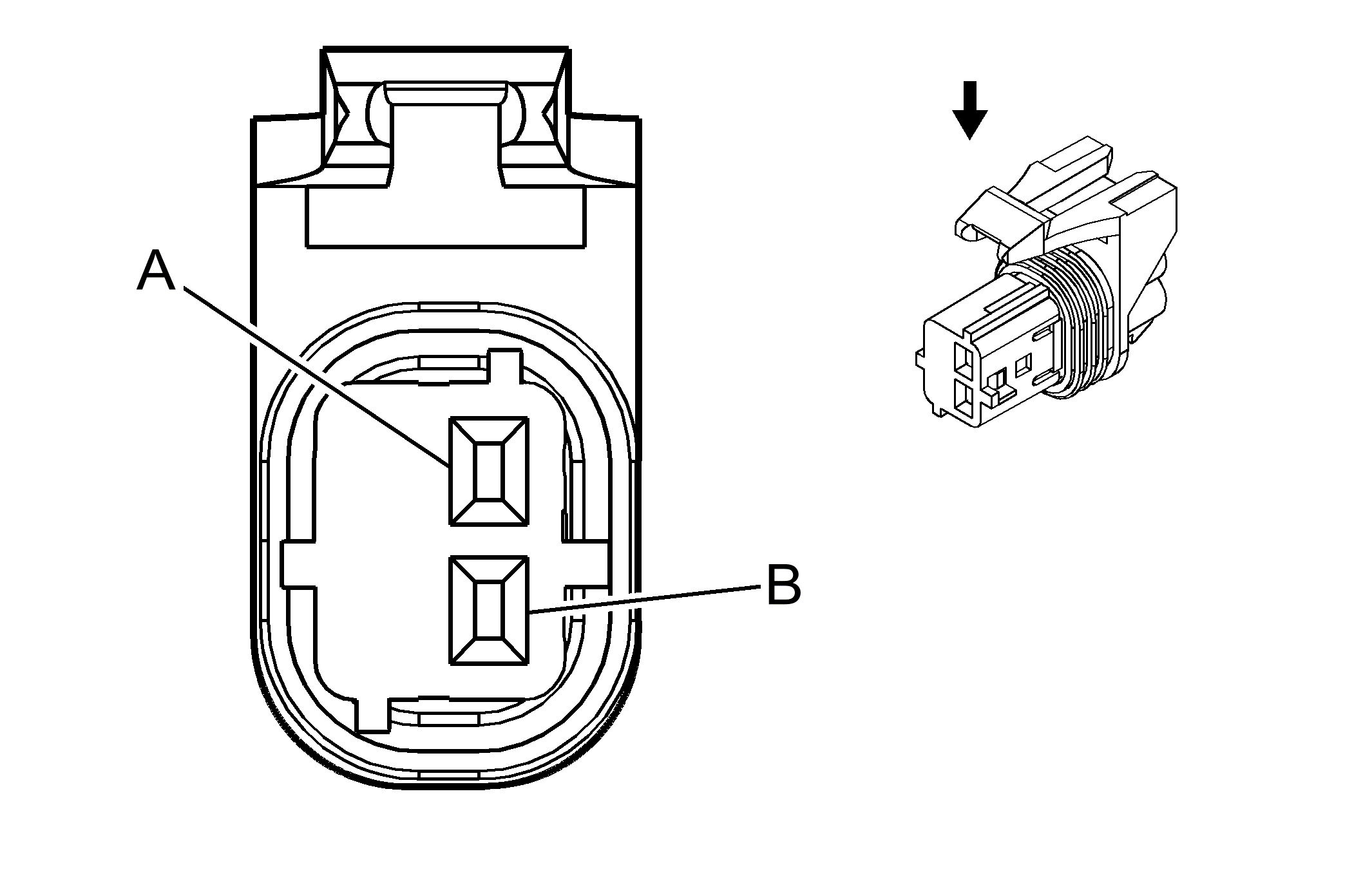

Fig 1: Inflatable Restraint Front End Sensor - Left (-ASF) Connector End View
GM744046Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Front End Sensor - Left (-ASF) Connector Parts Information

Connector Part Information
  • OEM: 15356723
  • Service: 15306439
  • Description: 2-Way F GT 150 Series Sealed 4.0 (YE)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: J-15315247/J-35616-2A (GY)
Inflatable Restraint Front End Sensor - Left (-ASF) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A TN/OG 5045 Low Reference
B YE 354 Discriminating Sensor - Signal
