Cigar Lighter Connector End View

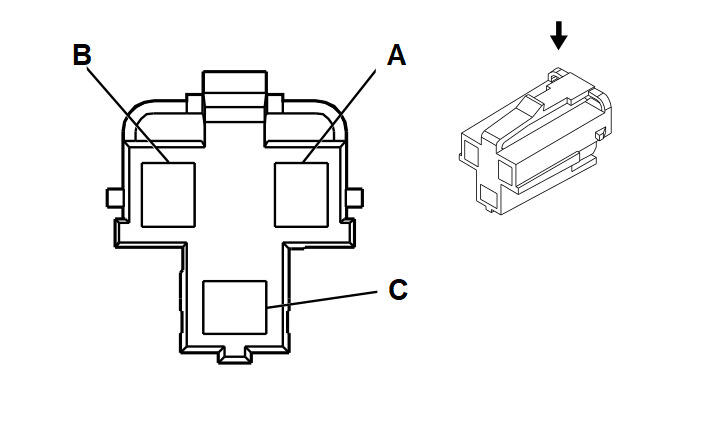

Fig 1: Cigar Lighter Connector End View
GM362748Courtesy of GENERAL MOTORS CORP.
Cigar Lighter Connector Parts Information

Connector Part Information
  • OEM: 12176836
  • Service: 15305923
  • Description: 3-Way F Metri-Pack 280 Series (GY)
Terminal Part Information
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Cigar Lighter Connector Terminal Identification

Pin Wire Color Circuit No. Function
A RD/WH 2540 Battery Positive Voltage
B BK 650 Ground
