Outside Rearview Mirror Switch Connector End View

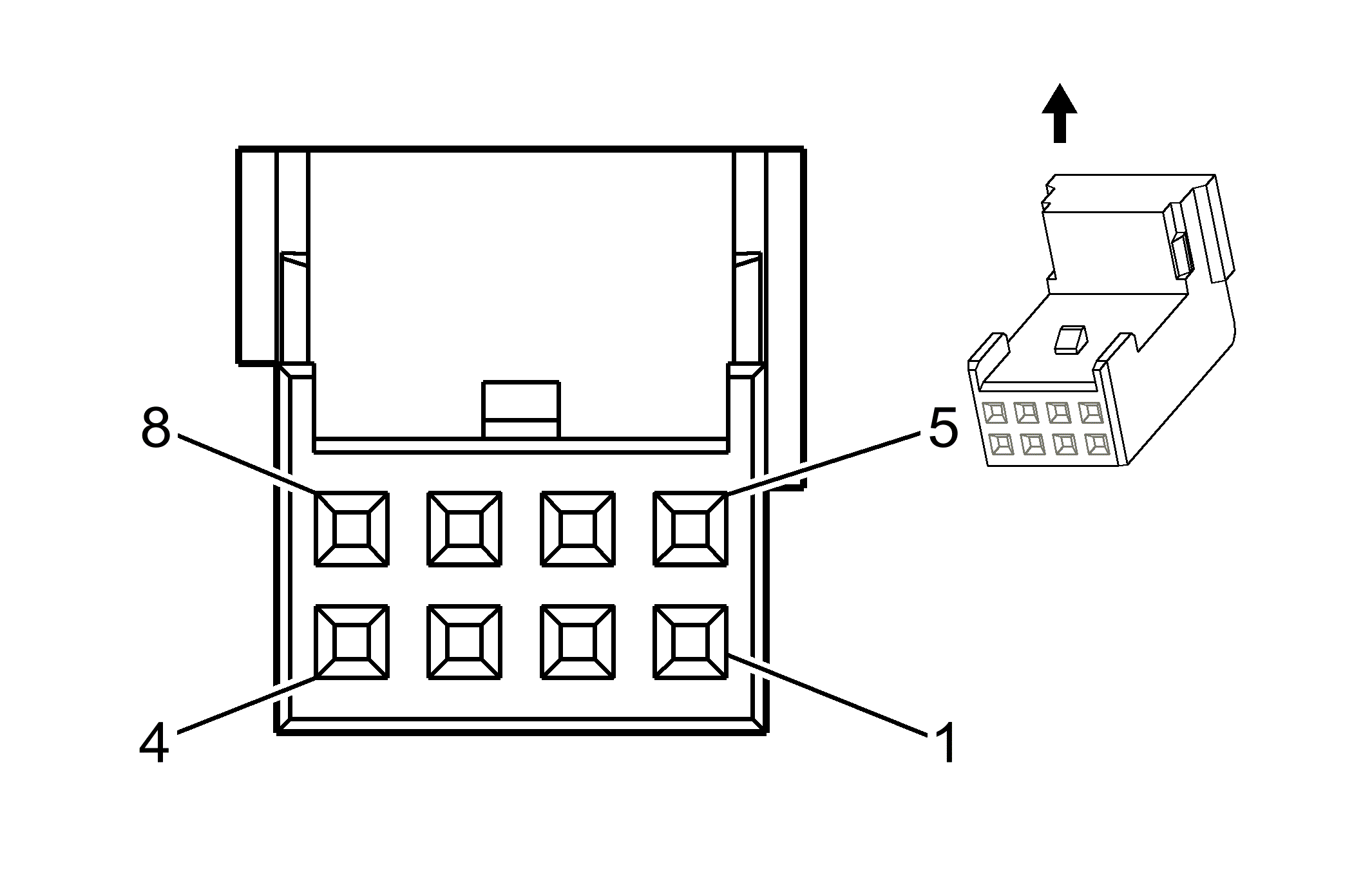

Fig 1: Outside Rearview Mirror Switch Connector End View
GM901282Courtesy of GENERAL MOTORS CORP.
Outside Rearview Mirror Switch Connector Parts Information

Connector Part Information
  • OEM: 15336862
  • Service: 88988407
  • Description: 8-Way F REI DUSON (GY)
Terminal Part Information
  • Terminal/Tray: 15326592/19
  • Core/Insulation Crimp: E/2
  • Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
Outside Rearview Mirror Switch Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 RD/WH 840 Battery Positive Voltage
2 BK 1450 -
3 PU/WH 889 Passenger Mirror Motor Down Control
4 WH 81 Driver Mirror Motor Right Control
5 L-GN 1499 Driver Mirror Motor Left/Down Control
7 YE 88 Driver Mirror Motor Up Control
8 OG/WH 881 Passenger Mirror Motor Right Control
