Vanity Mirror Dome Lamp Switch Connector End View (UUC)

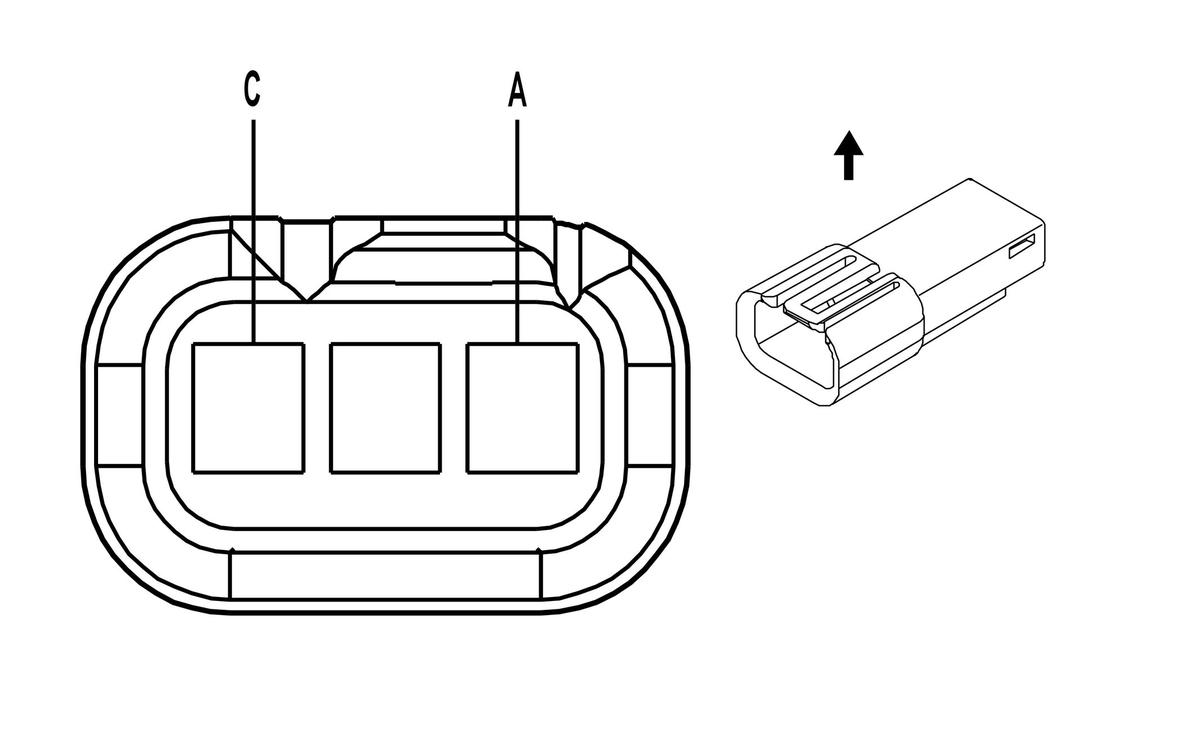

Fig 1: Vanity Mirror Dome Lamp Switch (UUC) Connector End View
GM287973Courtesy of GENERAL MOTORS CORP.
Vanity Mirror Dome Lamp Switch (UUC) Connector Parts Information

Connector Part Information
  • OEM: 12047782
  • Service: 12117371
  • Description: 3-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Vanity Mirror Dome Lamp Switch (UUC) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A D-BU/WH 149 Courtesy Lamp Supply Voltage
B GY 1551 Courtesy Lamp Control
C OG 1732 Courtesy Lamp Supply Voltage
