Rear Wiper/Washer/Fog Lamp Switch Connector End View

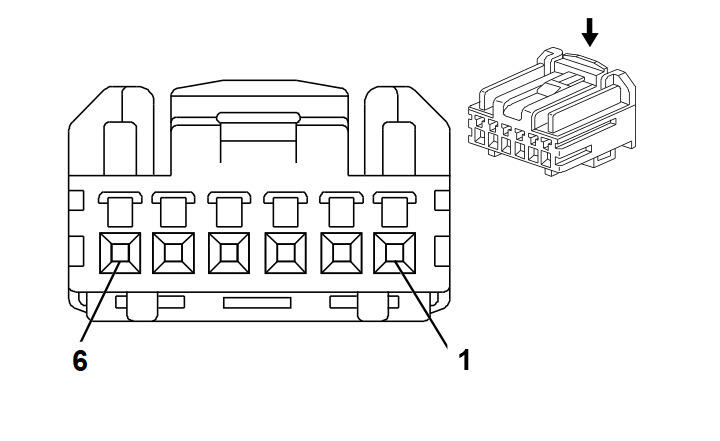

Fig 1: Rear Wiper/Washer/Fog Lamp Switch Connector End View
GM1664548Courtesy of GENERAL MOTORS CORP.
Rear Wiper/Washer/Fog Lamp Switch Connector Parts Information

Connector Part Information
  • OEM: HCMPB-06-K
  • Service: 19115655
  • Description: 6-Way F HCM Series (BK)
Terminal Part Information
  • Terminal/Tray: SHCM-A03T-P025/20
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)
Rear Wiper/Washer/Fog Lamp Switch Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BK/WH 1551 Ground
2 GY 391 Rear Window Wiper Switch Signal
3 L-GN 2270 Rear Window Washer Relay Control
4 OG 192 Front Fog Lamp Switch Signal
5 BK 1450 Ground
6 PU/WH 1382 LED Dimming Signal (T96)
