Park/Stop Lamp Connector End View - Right Rear

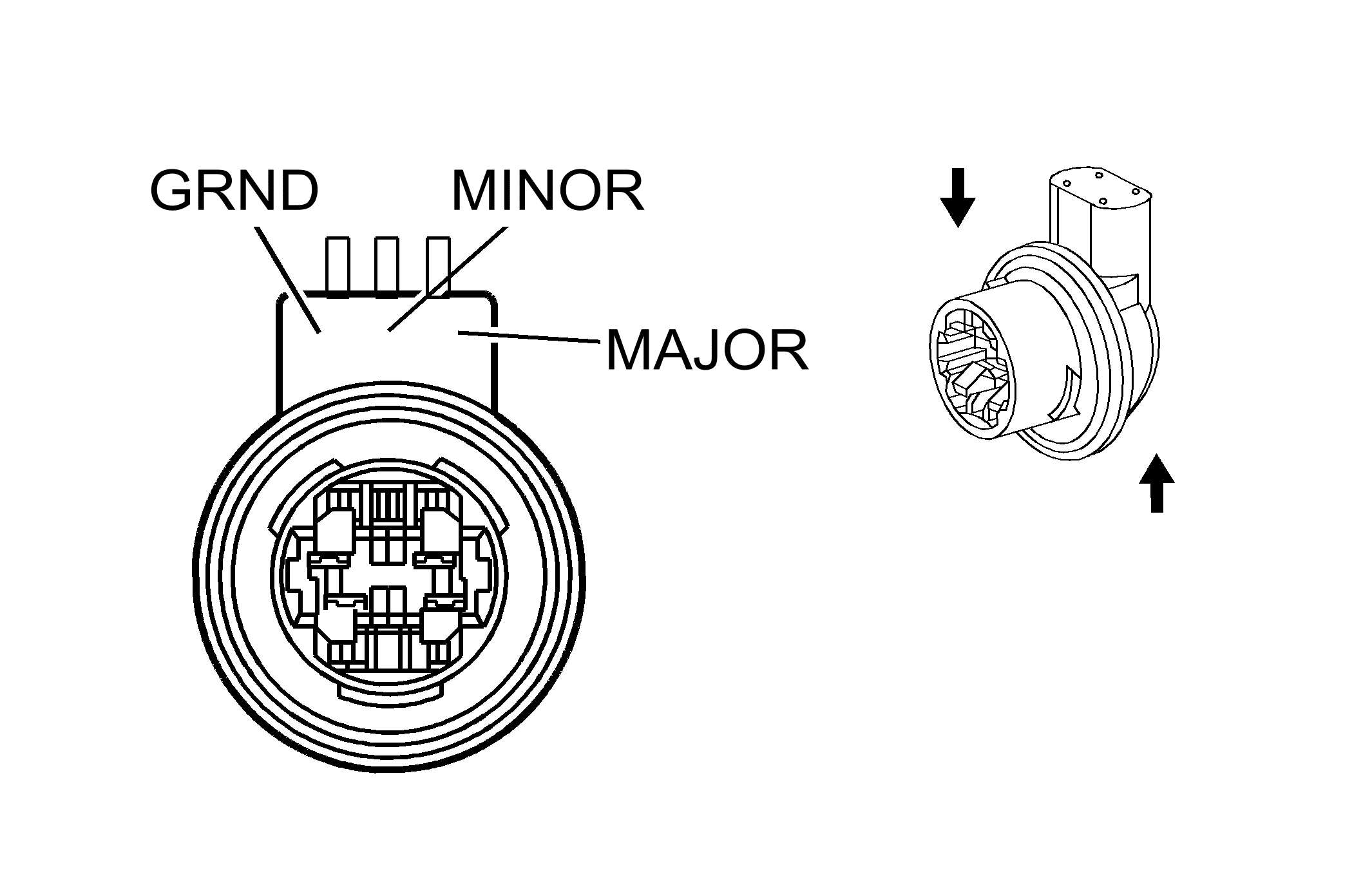

Fig 1: Park/Stop Lamp - Right Rear Connector End View
GM1860839Courtesy of GENERAL MOTORS CORP.
Park/Stop Lamp - Right Rear Connector Parts Information

Connector Part Information
  • OEM: 7822-2540-A22
  • Service: Service by Harness - See Part Catalog
  • Description: 3-Way Lamp Socket Wedge Base W3 (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Park/Stop Lamp - Right Rear Connector Terminal Identification

Pin Wire Color Circuit No. Function
MAJOR D-GN/WH 309 Right Park Lamp Supply Voltage
MINOR RD/D-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
GRND BK 850 Ground
