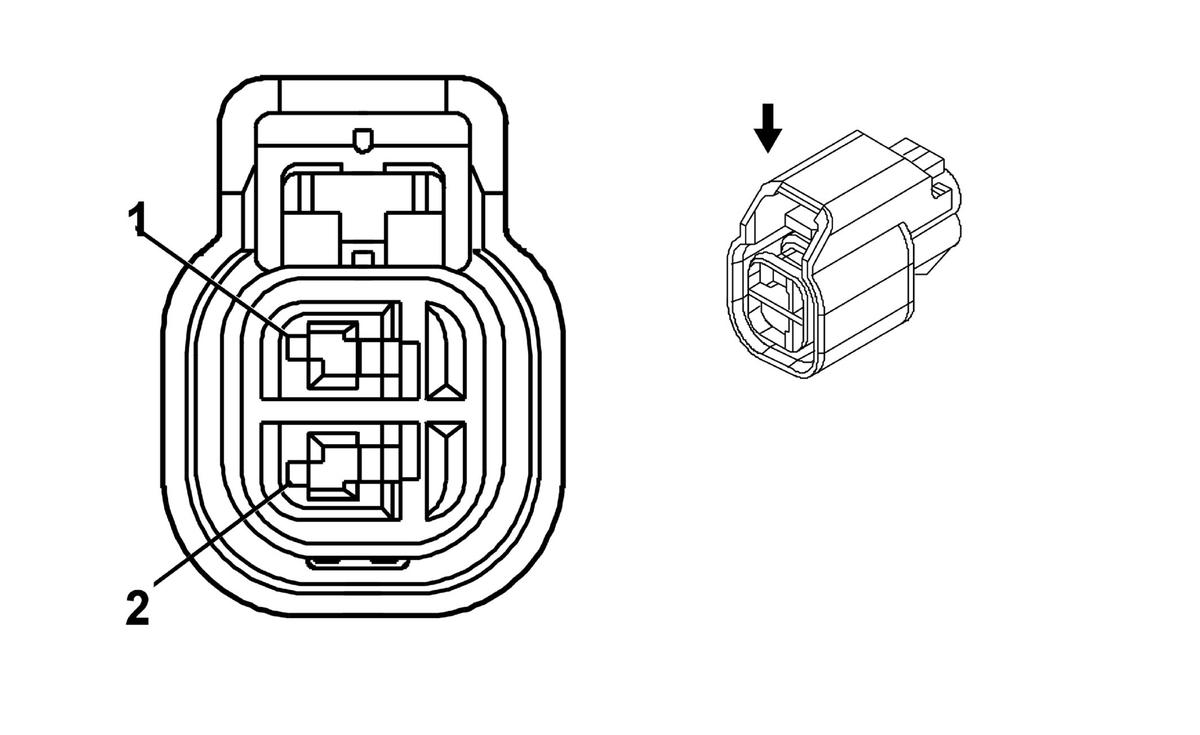

Marker Lamp Connector End View - Left Front (Pontiac)
Courtesy of GENERAL MOTORS CORP. Marker Lamp - Left Front (Pontiac) Connector Parts Information
Connector Part Information
- OEM: E3550
- Service: Service by Harness - See Part Catalog
- Description: 2-Way F 1.5 mm Series Sealed (NA)
|
Terminal Part Information
- Pins: 1, 2
- Terminal/Tray: 7116-4102-08/9
- Core/Insulation Crimp: E/1
- Release Tool/Test Probe: 12094430/J-35616-2A (GY)
- Pins: 1, 2
- Terminal/Tray: 7116-2640/12
- Core/Insulation Crimp: E/1
- Release Tool/Test Probe: 12094430/J-35616-42 (RD)
|
Marker Lamp - Left Front (Pontiac) Connector Terminal Identification
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
PU |
709 |
Left Park Lamp Supply Voltage |
| 2 |
BK |
1250 |
Ground |
