Headlamp Connector End View - Left (Pontiac)

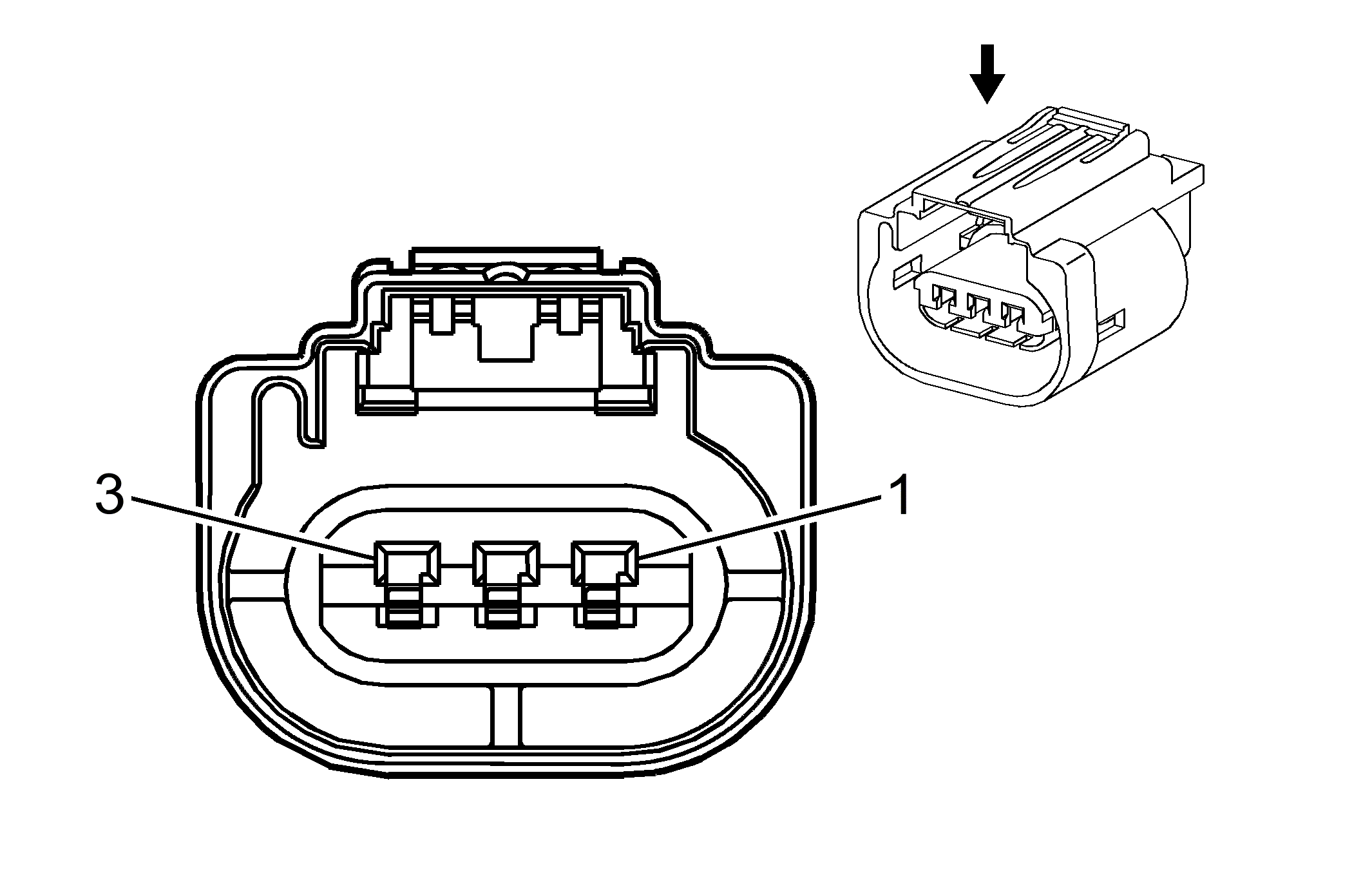

Fig 1: Headlamp - Left (Pontiac) Connector End View
GM1591675Courtesy of GENERAL MOTORS CORP.
Headlamp - Left (Pontiac) Connector Parts Information

Connector Part Information
  • OEM: 7900-1486-003
  • Service: 88988364
  • Description: 3-Way F Lamp Socket Sealed (BK)
Terminal Part Information
  • Pins: 1, 2, 3
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
  • Pins: 1, 2, 3
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: See Terminal Repair Kit
Headlamp - Left (Pontiac) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 YE 712 Left Headlamp Low Beam Supply Voltage
2 BK 1250 Ground
3 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
