Center High Mounted Stop Lamp (CHMSL) Connector End View

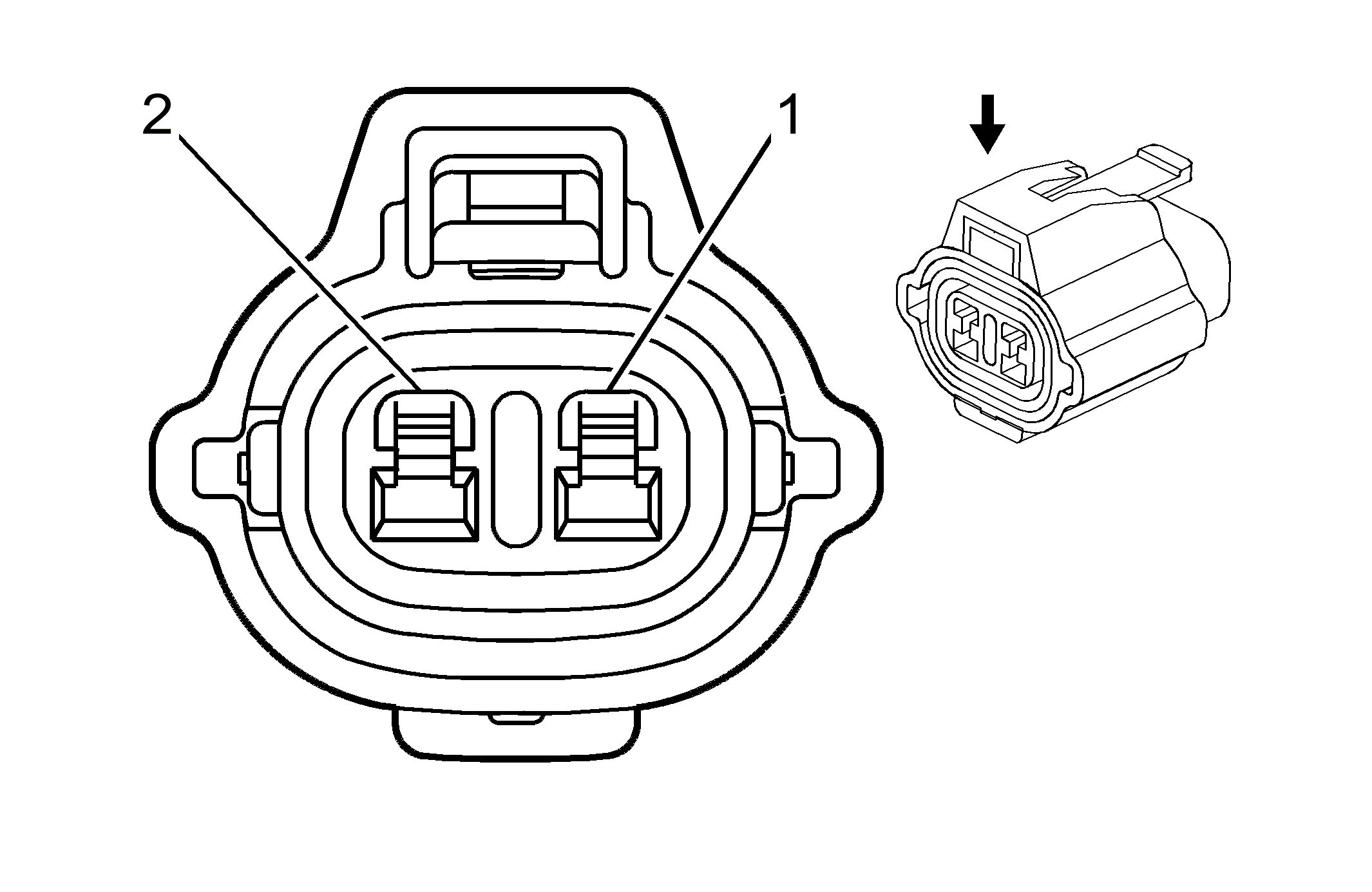

Fig 1: Center High Mounted Stop Lamp (CHMSL) Connector End View
GM1413080Courtesy of GENERAL MOTORS CORP.
Center High Mounted Stop Lamp (CHMSL) Connector Parts Information

Connector Part Information
  • OEM: 7223-1324
  • Service: 88988460
  • Description: 2-Way F 090 Sealed (WH)
Terminal Part Information
  • Terminal/Tray: 7116-1420/11
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
Center High Mounted Stop Lamp (CHMSL) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 L-BU 1320 CHMSL Supply Voltage/Stop Lamp Supply Voltage
2 BK 850 Ground
