Backup Lamp Connector End View - Left (Chevrolet)

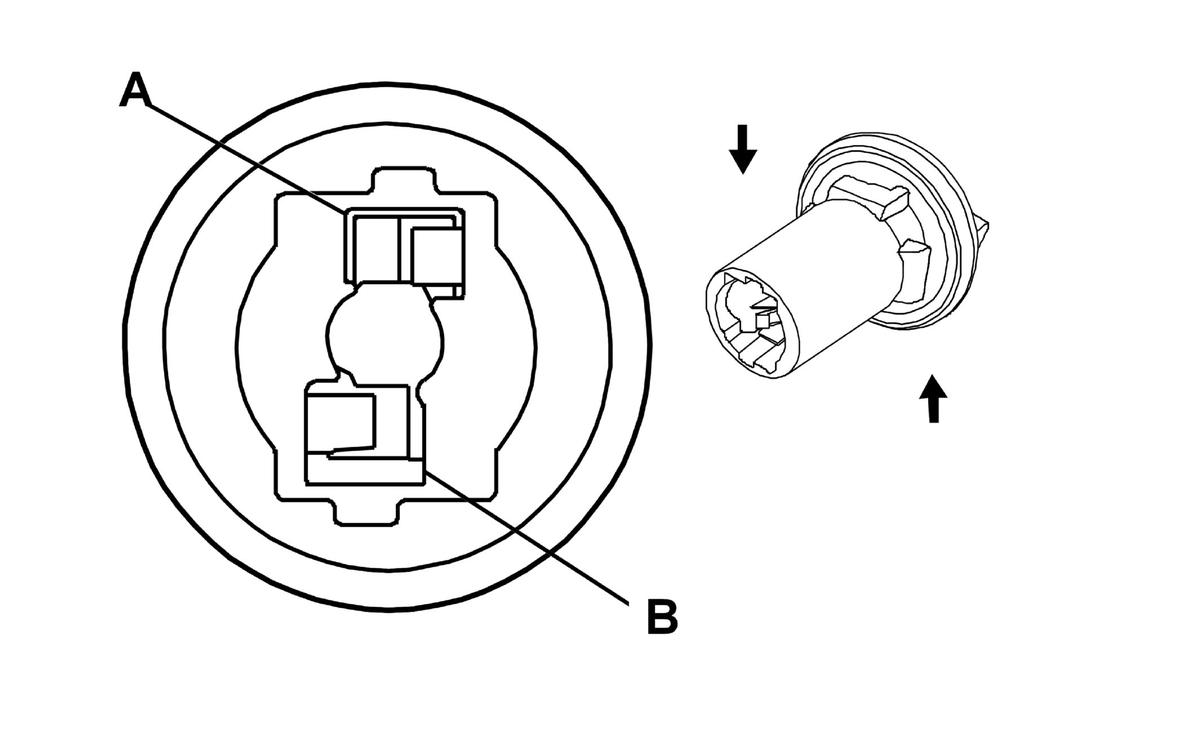

Fig 1: Backup Lamp - Left (Chevrolet) Connector End View
GM1860844Courtesy of GENERAL MOTORS CORP.
Backup Lamp - Left (Chevrolet) Connector Parts Information

Connector Part Information
  • OEM: 7112-534-4WB
  • Service: Service by Harness - See Part Catalog
  • Description: 2-Way Lamp Socket (GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Backup Lamp - Left (Chevrolet) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A RD 24 Backup Lamp Supply Voltage
B BK 550 Ground
