C906 Liftgate Jumper to Liftgate Harness Connector End View

C906 Liftgate Jumper to Liftgate Harness Connector End Views

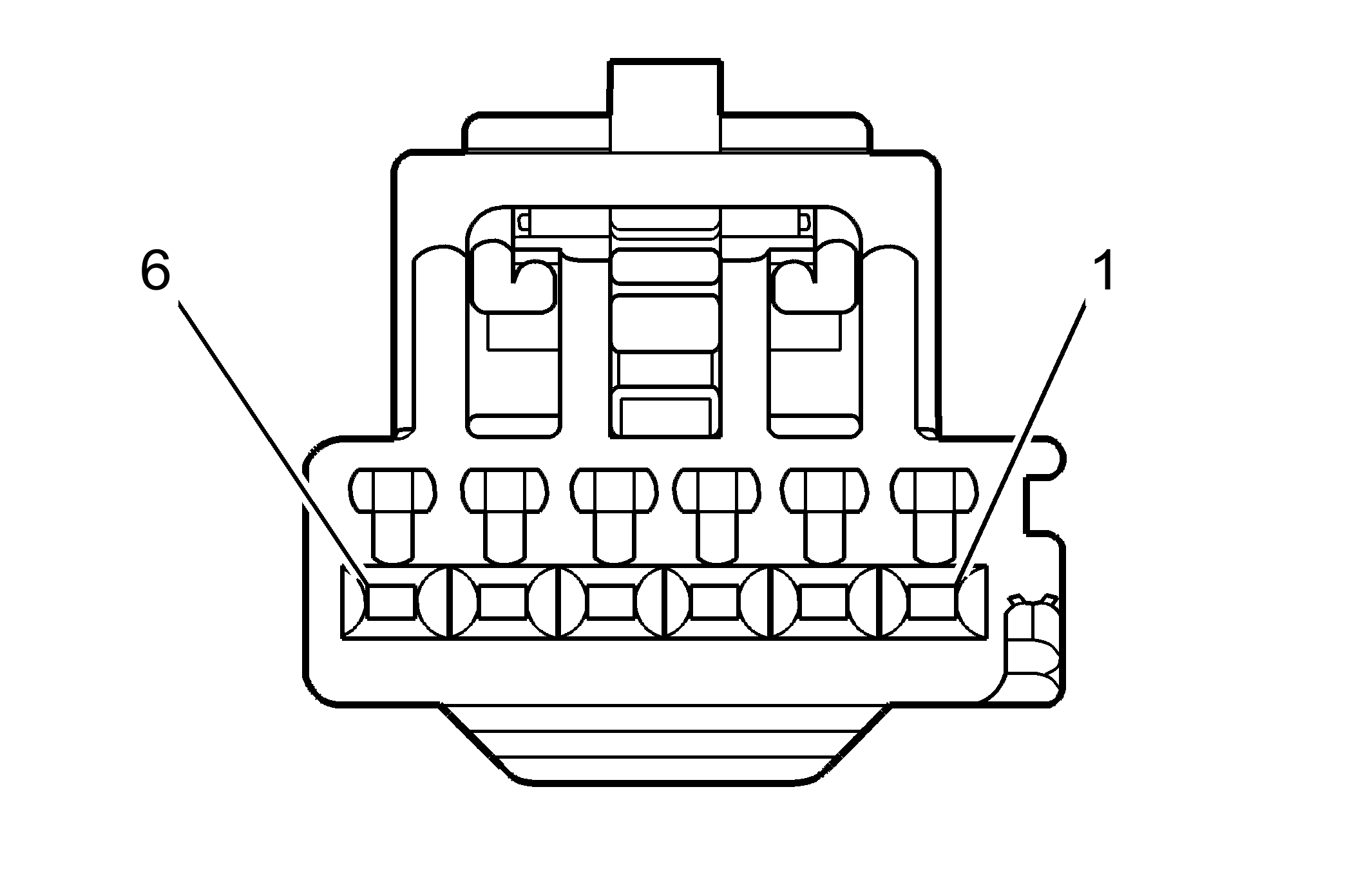

GM1849813Courtesy of GENERAL MOTORS CORP.

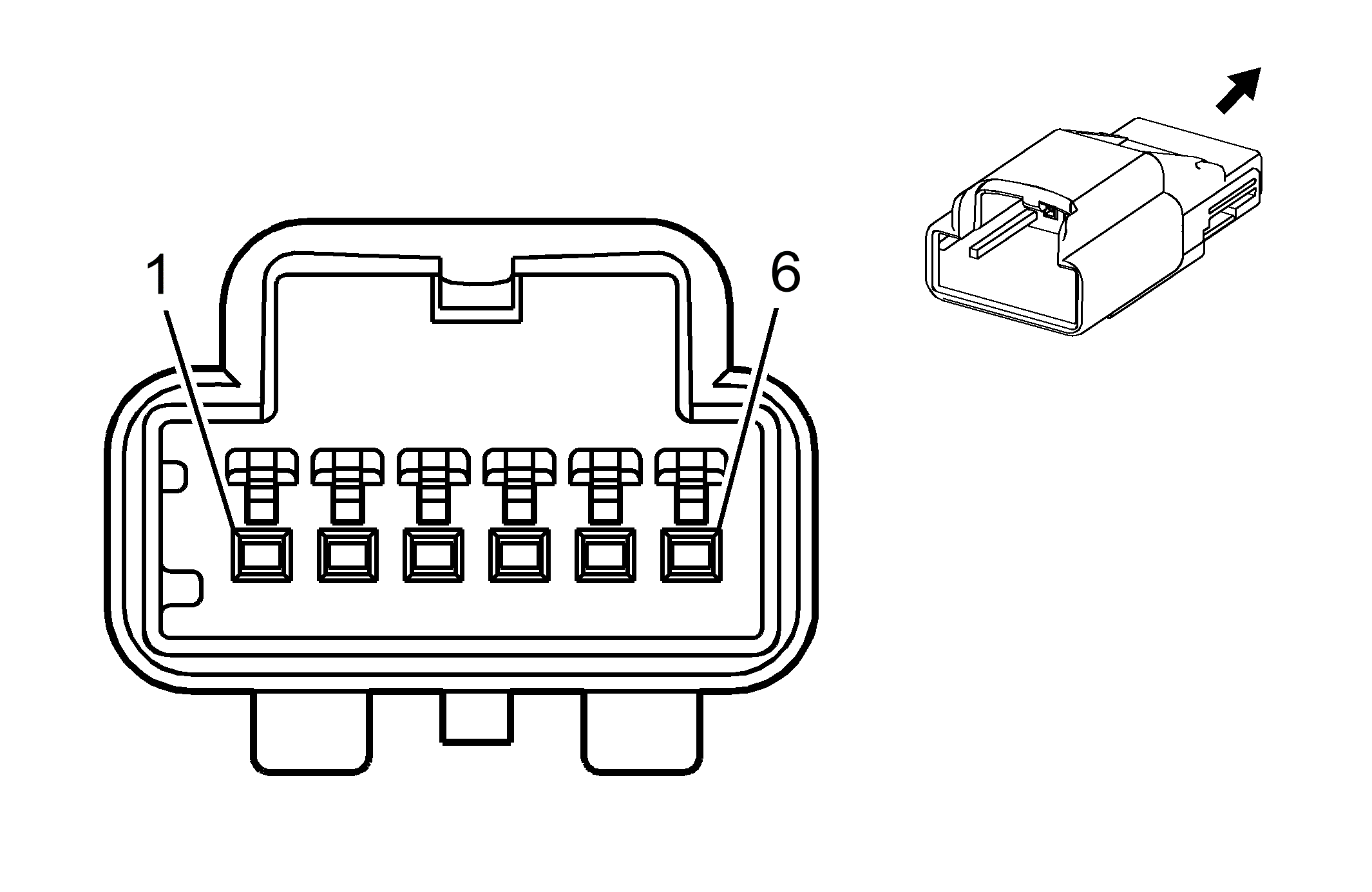

GM1849811Courtesy of GENERAL MOTORS CORP.
C906 Liftgate Jumper to Liftgate Harness Connector Parts Information

Connector Part Information
  • OEM: 7283-6387-30
  • Service: See Catalog
  • Description: 6-Way F 0.64 Series (BK)
 Connector Part Information
  • OEM: 7283-1264
  • Service: See Catalog
  • Description: 6-Way M 0.64 (BK)
Terminal Part Information
  • Pins: 1, 4, 2, 3, 5, 6
  • Terminal/Tray: 7116-4720-02/14
  • Core/Insulation Crimp: Pins: 1, 4 : J/J
  • Core/Insulation Crimp: Pins: 2, 3, 5, 6 : H/H
  • Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
 Terminal Part Information
  • Pins: 1, 4
  • Terminal/Tray: 7114-4720-08/14
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-65B (L-BU)
  • Pins: 2, 3, 5, 6
  • Terminal/Tray: 7114-4720-08/14
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 15315247/J-35616-65B (L-BU)
C906 Liftgate Jumper to Liftgate Harness Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PK/BK 1303 Liftgate Ajar Switch Signal 1 PK/BK 1303 Liftgate Ajar Switch Signal
2 BN/WH 309 Right Park Lamp Supply Voltage 2 BN/WH 309 Right Park Lamp Supply Voltage
3 GY 391 Rear Window Wiper Switch Signal 3 GY 391 Rear Window Wiper Switch Signal
4 YE 243 Accessory Voltage 4 YE 243 Accessory Voltage
5 L-GN 2270 Rear Window Washer Relay Control 5 L-GN 5227 Rear Window Washer Relay Control
6 GY 5797 Rear Closure Handle Switch Open Signal 6 GY 5797 Rear Closure Handle Switch Open Signal
