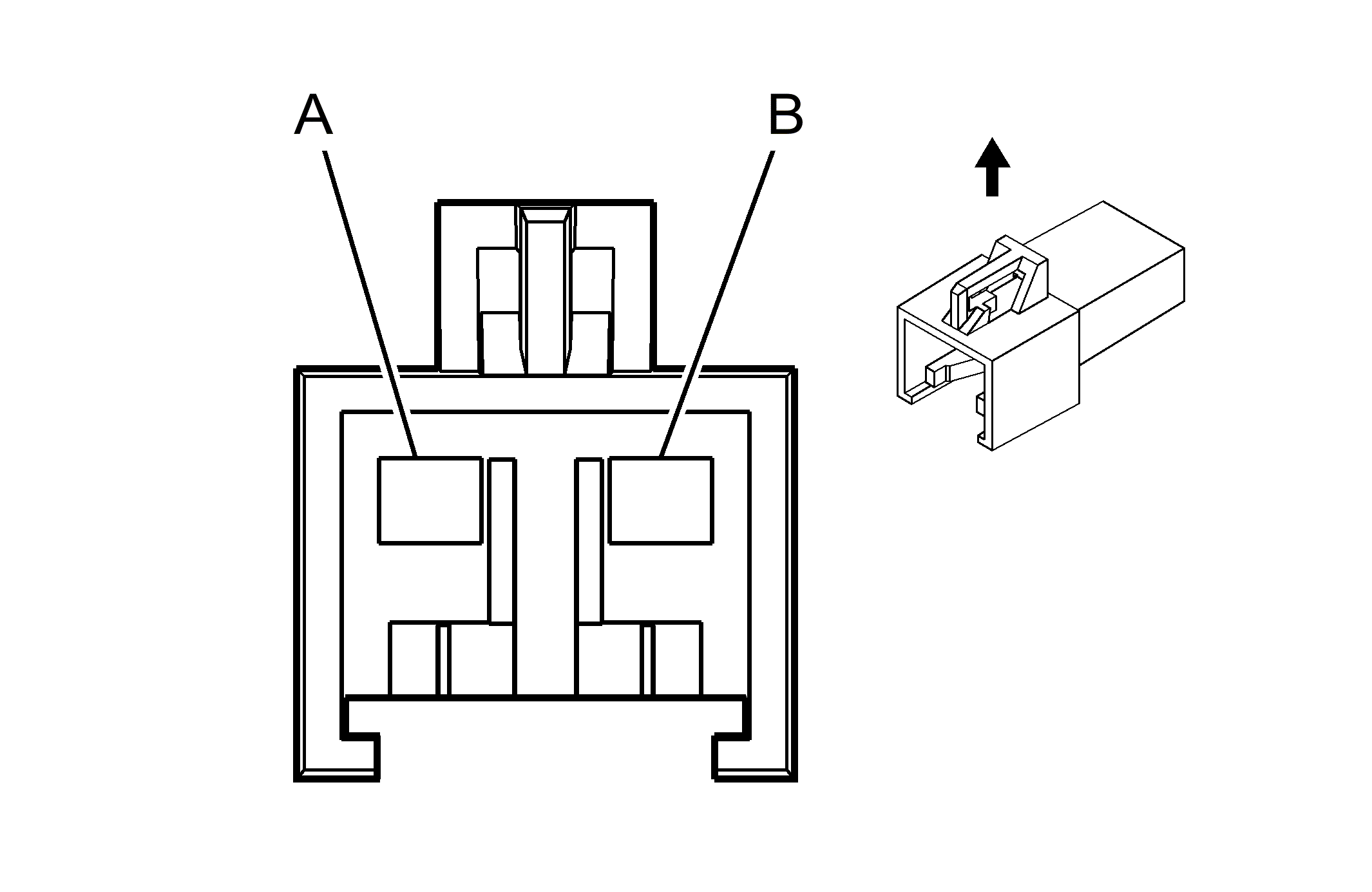

C421 Body Harness to the Right Inflatable Restraint Roof Rail Module Harness Connector End View (ASF)

C421 Body Harness to the Right Inflatable Restraint Roof Rail Module Harness (ASF) Connector End Views

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

C421 Body Harness to the Right Inflatable Restraint Roof Rail Module Harness (ASF) Connector Parts Information

Connector Part Information OEM: 12077921 Service: See Catalog Description: 2-Way F Metri-Pack 280 Series (YE)	Connector Part Information OEM: 12186799 Service: See Catalog Description: 2-Way M Metri-Pack 280 Series (YE)
Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit	Terminal Part Information Pins: 5, 2, 3, 4, 7 Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit

C421 Body Harness to the Right Inflatable Restraint Roof Rail Module Harness (ASF) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	D-GN	-	Side Impact Module - RF - High Control	A	TN/WH	2135	Side Impact Module - RF - High Control
B	WH	-	Module - RF - Low Control	B	L-GN	2136	Module - RF - Low Control
